21
S
TEP
13:
• Securely assemble the ball end of the LEG CABLE (30) and one 3-1/2" PULLEY (37) to the LEG
PEDESTAL (8), using one 3/8 x 3-3/4" BOLT (57), two 3/8 x 1-1/16" FLANGE SPACERS (49),
and one 3/8" SILVER LOCK NUT (63).
• Securely assemble one 3-1/2" PULLEY (37) to the FRONT BASE (1), using one 3/8 x 3" CLEAR
ZINC BOLT (67), two 3/8 x 3/4" FLANGE SPACERS (48) and one 3/8" BLACK LOCK NUT (78).

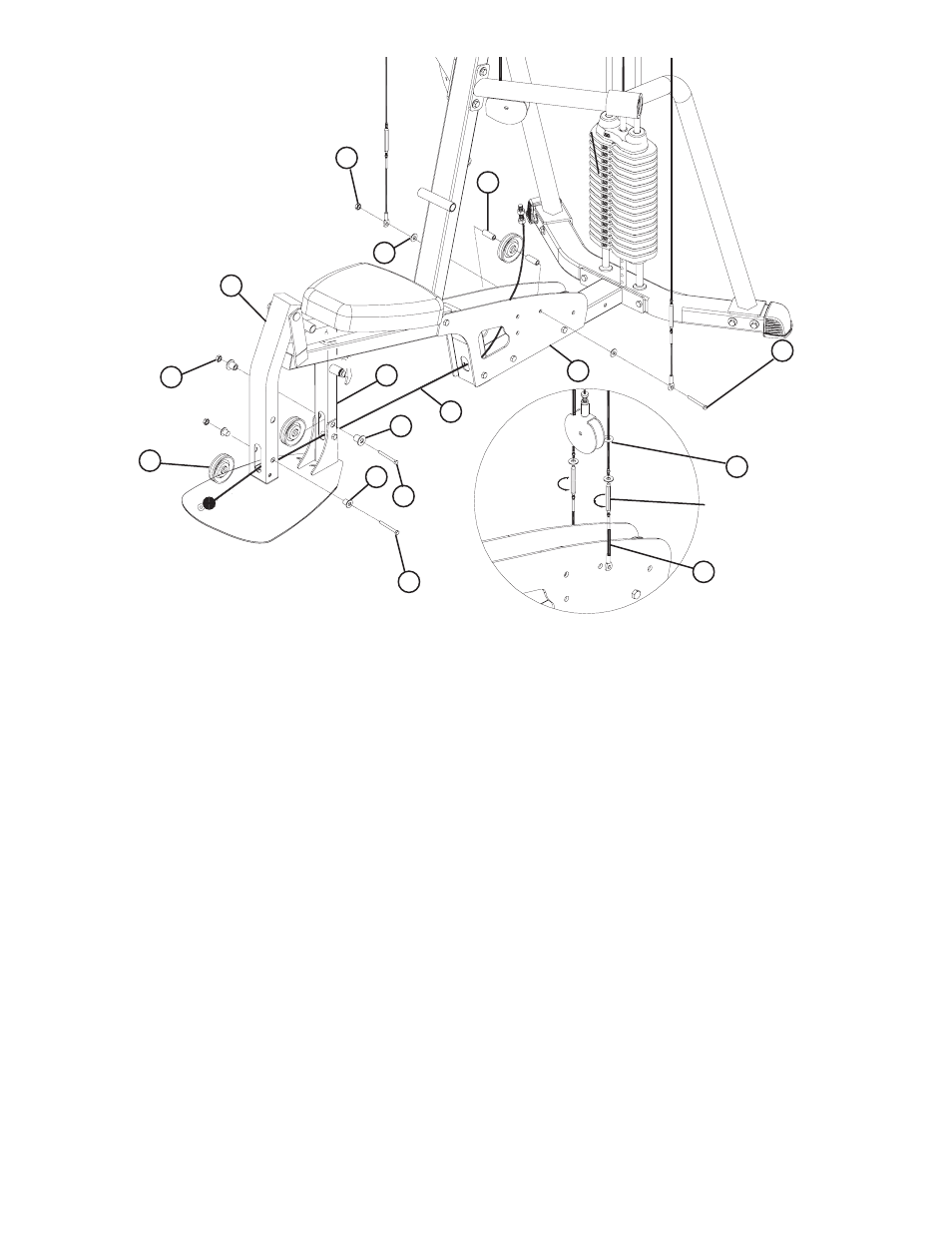

NOTE: The LEG CABLE (30) must be routed over the retaining bolt as shown in Figure 13.
• Carefully slide the GUIDE CABLES (65) through the GUIDE BRACKET (42) as shown in Figure
13 (B).
• Reassemble the ends of the GUIDE CABLES (65) as shown in Figure 13 (B) by attaching the
Short Cables and Turnbuckles that were removed in Step 11 (D).
• Assemble one 3-1/2" PULLEY (37) to the BASE PLATES (11), using one 3/8 x 4-1/4" SILVER
BOLT (68), two 3/8" FLAT WASHERS (64), two GUIDE CABLES (65), two 3/8 x 1" SPACERS (51)
and one 3/8" SILVER LOCK NUT (63).
NOTE: Loop the LEG CABLE (30) around the 3-1/2" PULLEY (37) before attaching it to the BASE
PLATES (11), as shown in Figure 13.
• Adjust the Turnbuckle on each GUIDE CABLE (65) to add tension to the GUIDE CABLES (65)
until they are taut. Secure Turnbuckle with the Jam Nuts as seen in Figure 13 (B).
3/8 X 3-3/4” 57
8
11
51
78
30
37
49
48
3/8 X 4-1/4” 68
3/8 X 3”
64
63
2
77
42
SHORTCABLE 65
(B)
TURN BUCKLE
F
IGURE
13
