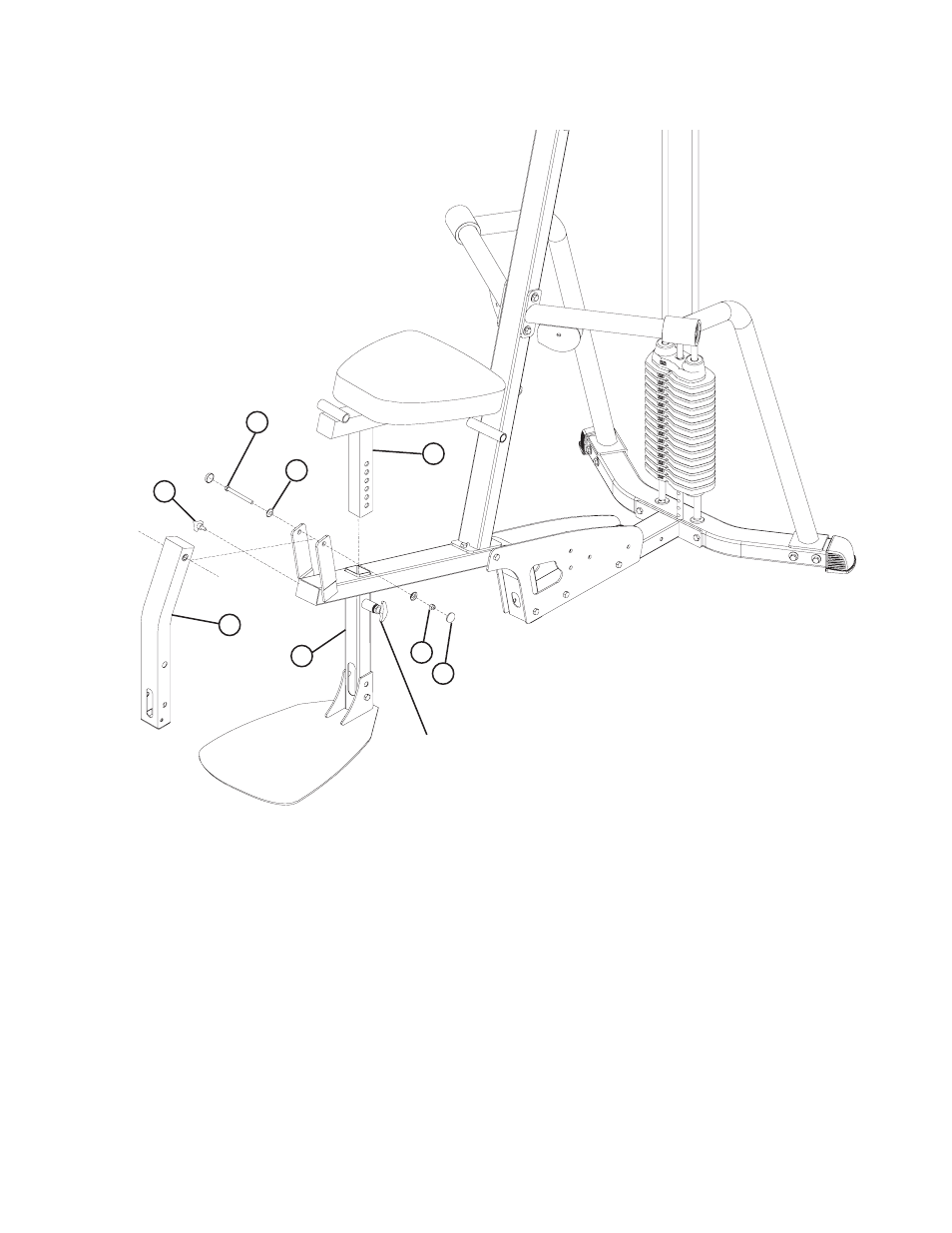

• Securely assemble the FIVE PRONG KNOB (43) to the FRONT BASE (1) as shown.
• Insert the SEAT ADJUST (7) into the FRONT BASE (1) as shown. The seat height can be adjust-
ed using the Spring Pin and can be secured with the FIVE PRONG KNOB (43).
• Assemble the LEG PEDESTAL (8) to the FRONT BASE (1) using two RH CAPS (47), one 1/2 x
104mm BOLT (58), two 1/2" WASHERS (46) and one 1/2" LOW HEIGHT LOCK NUT (62).
NOTE: Tighten this connection enough to prevent excess play; yet allow the Leg Pedestal to
rotate freely.
1/2 X 104mm
47
62 1
8
58
46
7
43
SPRING PIN
F
IGURE
8
