74
Chapter 5: Configuring the Switch through the Web Utility
Spanning Tree
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Port/LAG Conf
You can configure RSTP attributes for specific interfaces, including port priority, path cost, link type, and edge
port. You may use a different priority or path cost for ports of the same media type to indicate the preferred path,
link type to indicate a point-to-point connection or shared-media connection, and edge port to indicate if the
attached device can support fast forwarding. (References to “ports” in this section means “interfaces,” which
includes both ports and lags.)
Modify the required attributes.
Click Submit to save the changes.

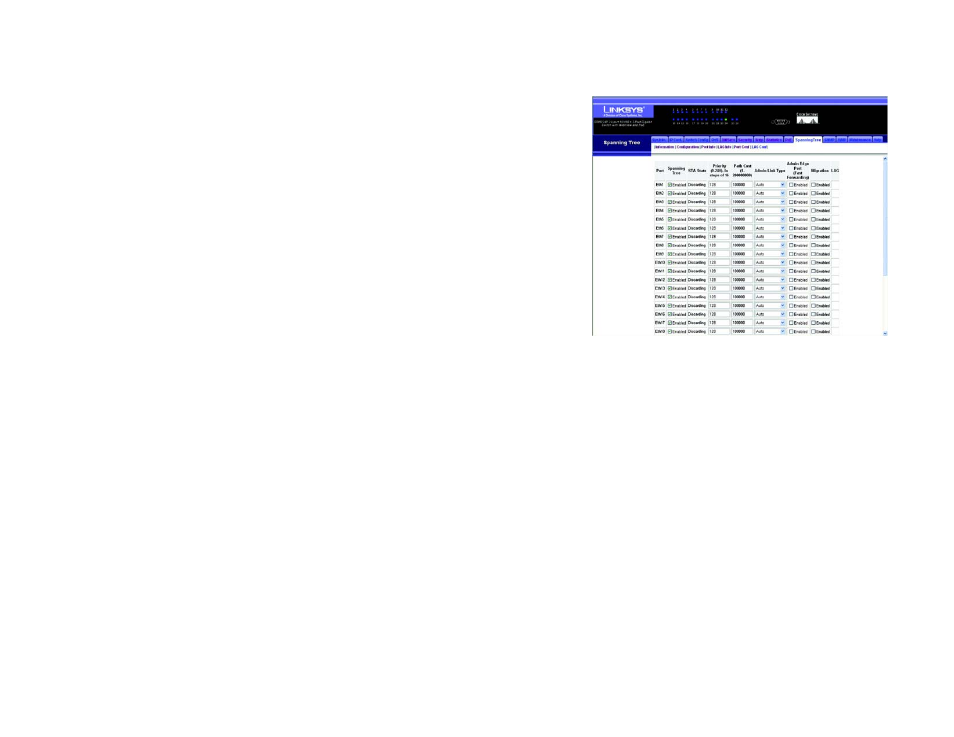

Figure 5-62: Spanning Tree - Information
