Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
File Management
The File Management screen allows you to upload and download files to the Switch using TFTP.
Source File. Specify the location of the file to transfer. Select TFTP if the file is on a TFTP server, Image if the file
is a local image file, or startup-config if the file is a local configuration file.
Destination File. Specify where the file is to be transferred. Select TFTP if the file is to be uploaded to a TFTP
server, Image if the file is to be downloaded as a image file, startup-config if the file is a configuration file, or boot
if the file is a boot file.
File Name. Enter the name of the file to be uploaded or downloaded.
IP Address. Enter the IP address of the TFTP server that will transfer the file.

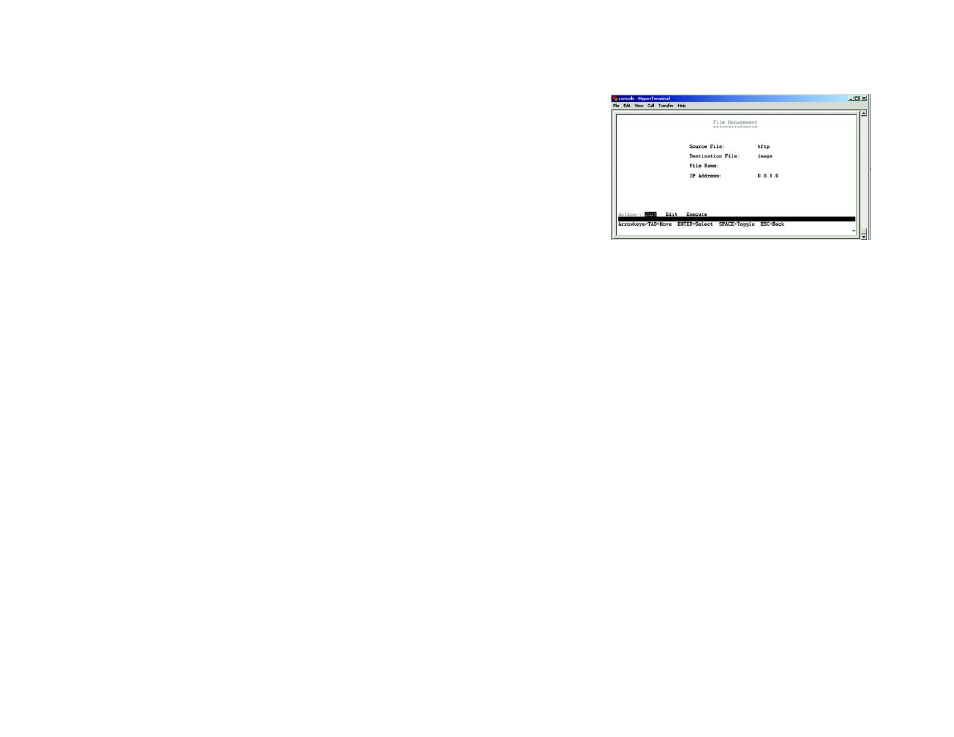

Figure 4-19: File Management
