Linksys SRW224P - Manual (Page 31)

23
Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Port PoE Configuration
The Power Port Configuration screen allows you to set the PoE settings for each port. Select the edit action and
use the left-right and up-down arrows to select the attribute you would like to set. You can set the Admin Status,
the Priority and the Power Allocation. Use the Save action to save the new settings.
Logout
Select Logout to log out of the console configuration utility.

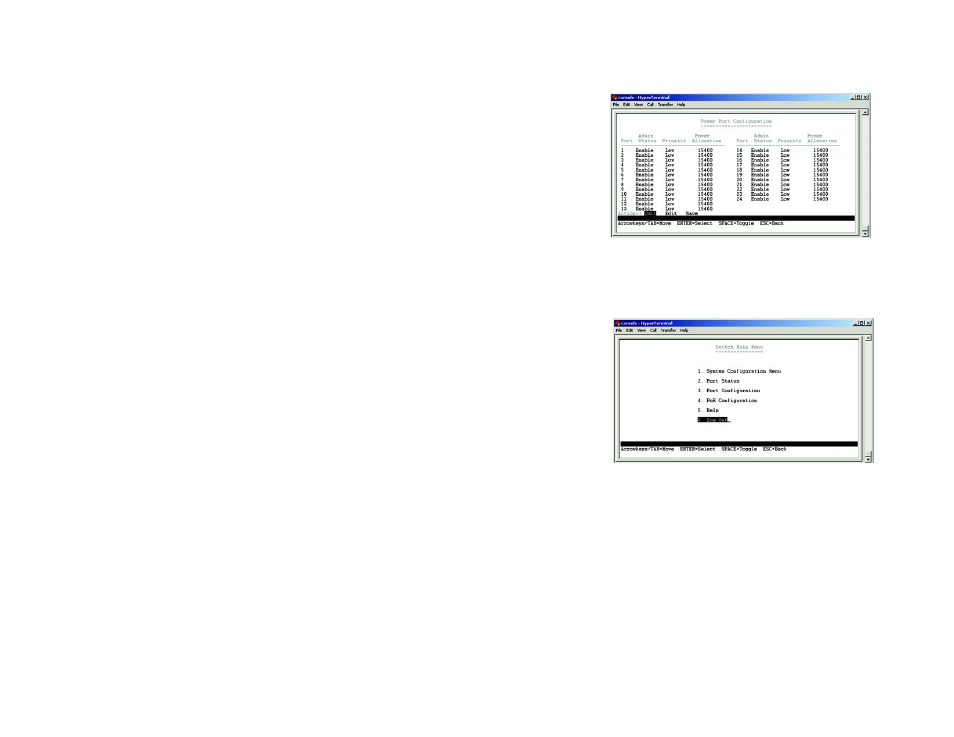

Figure 4-28: Power Port Configuration
Figure 4-29: Logout
