Chapter 2: Getting to Know the Switch
The Back Panel
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Ports
LAN (1-24) The LAN ports connect to Ethernet network devices, such as other switches or
routers.
Gigabit1 (25)/Gigabit 2 (26) The Switch is equipped with two Gigabit RJ-45 ports that are shared with two
mini-GBIC ports. If a Gigabit mini-GBIC port is being used, the associated RJ-45
port cannot be used. They link to high-speed network peripheral system or
clients at speeds of up to 1000Mbps.
Console The Console port is where you connect a serial cable from a PC’s serial port.
The Back Panel
The power port is located on the back panel.
Power The Power port is where you will connect the power cord.
The Side Panel
A security slot, where you can attach a lock to protect the Switch, is located on a side panel .

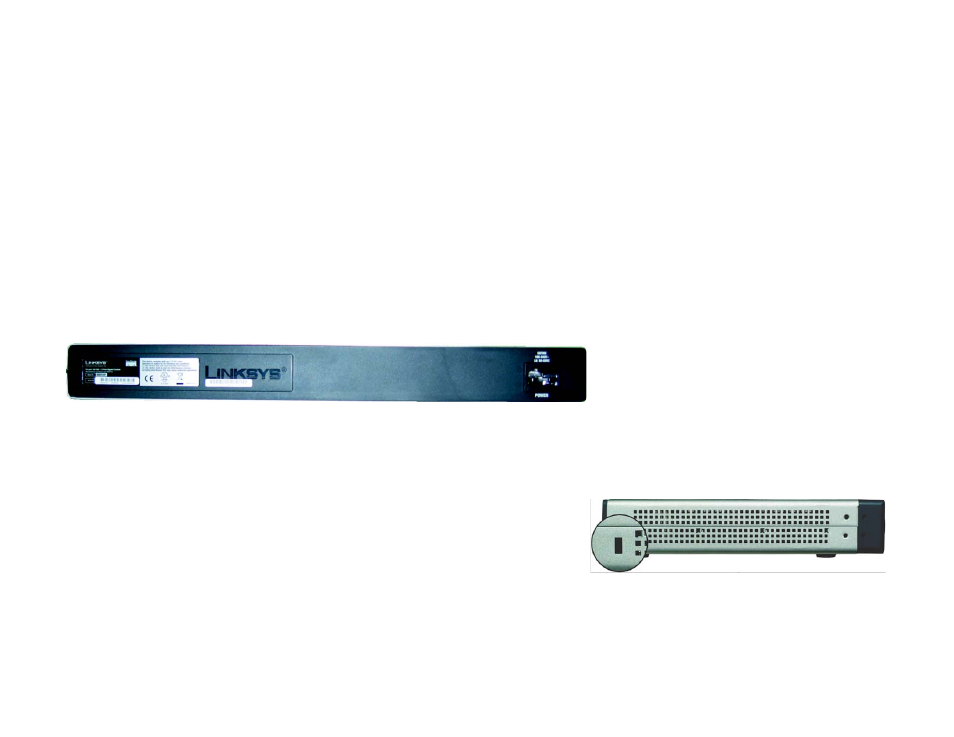

Figure 2-2: Back Panel
Figure 2-3: Side Panel
