69
Chapter 5: Configuring the Switch through the Web Utility
PoE
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Power Port Config
If a device is connected to a switch port and the switch detects that it requires more than the power budget of
the port, no power is supplied to the device (that is, port power remains off).
If the power demand from devices connected to switch ports exceeds the power budget set for the switch, the
port power priority settings are used to control the supplied power.
Mark the Enabled checkbox to enable PoE power on selected ports, set the priority using the drop-down menu
provided and set the power allocation for each port.
Click Submit to save the changes.
Power Port Status
Use Power Port Status to display the current PoE power status for all ports.

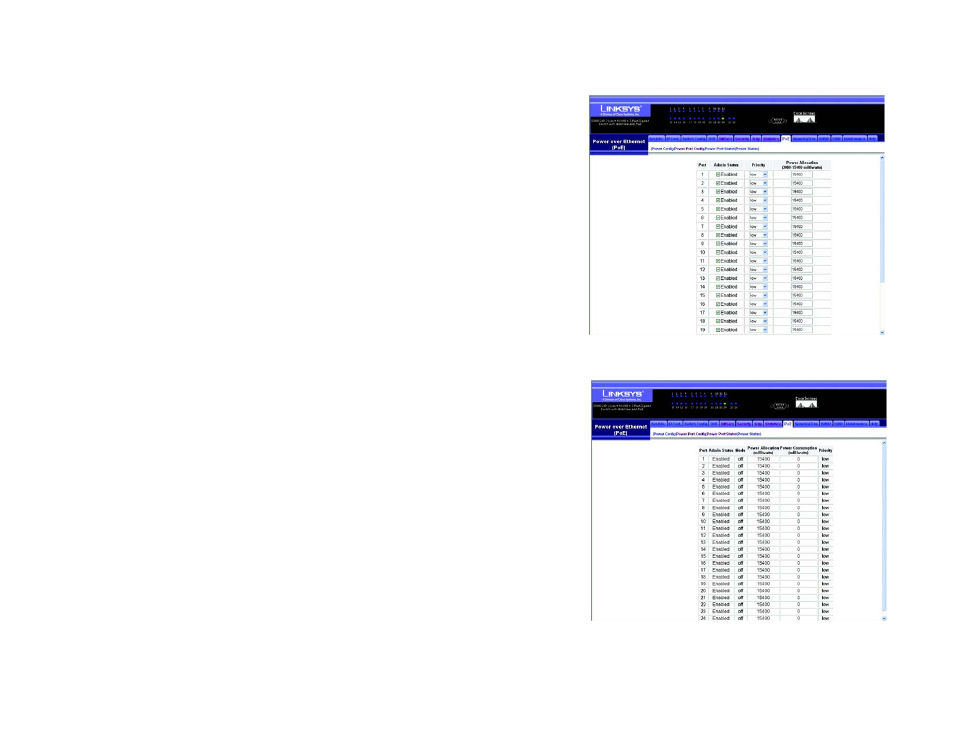

Figure 5-56: PoE - Power Port Config
Figure 5-57: PoE - Power Port Status
