Page 14
6
Chapter 3: Connecting the Switch
Overview
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Chapter 3: Connecting the Switch
Overview

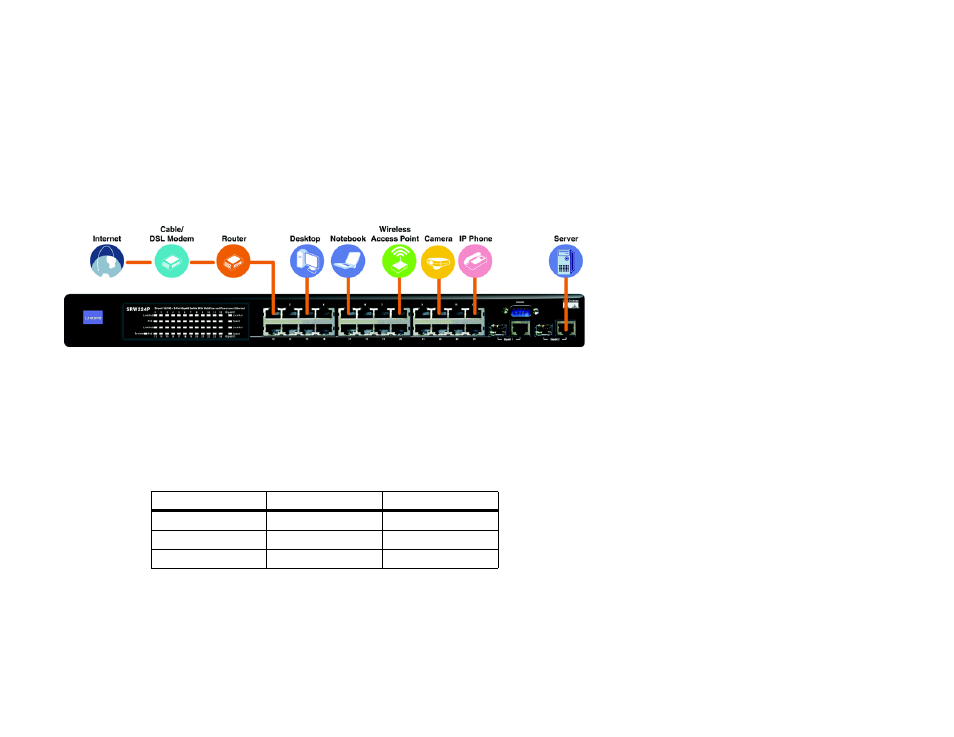

This chapter will explain how to connect network devices to the Switch. The following diagram shows a typical
network configuration.
When you connect your network devices, make sure you don’t exceed the maximum cabling distances, which are
listed in the following table:
Maximum Cabling Distances
*A hub refers to any type of 100Mbps hub. A 10Mbps hub connected to another 10Mbps hub can span up to 100
meters (328 feet).
From
To
Maximum Distance
Switch
Switch or Hub
100 meters (328 feet)
Hub
Hub
5 meters (16,4 feet)
Switch or Hub
Computer
100 meters (328 feet)
Figure 3-1: Typical Network Configuration
