Print engine removal, Print engine removal” on – Lexmark 4200 Series User Manual
Page 54
4-16
Service Manual
4413-XXX
Print engine removal
1. Remove the top cover assembly. See
.
2. Remove the paper support.
3. Disconnect the CIS cable from system board.
4. Remove CIS cable support.
5. Disconnect all cables from the system board except for carrier
ribbon cables.
6. Move carrier to center.

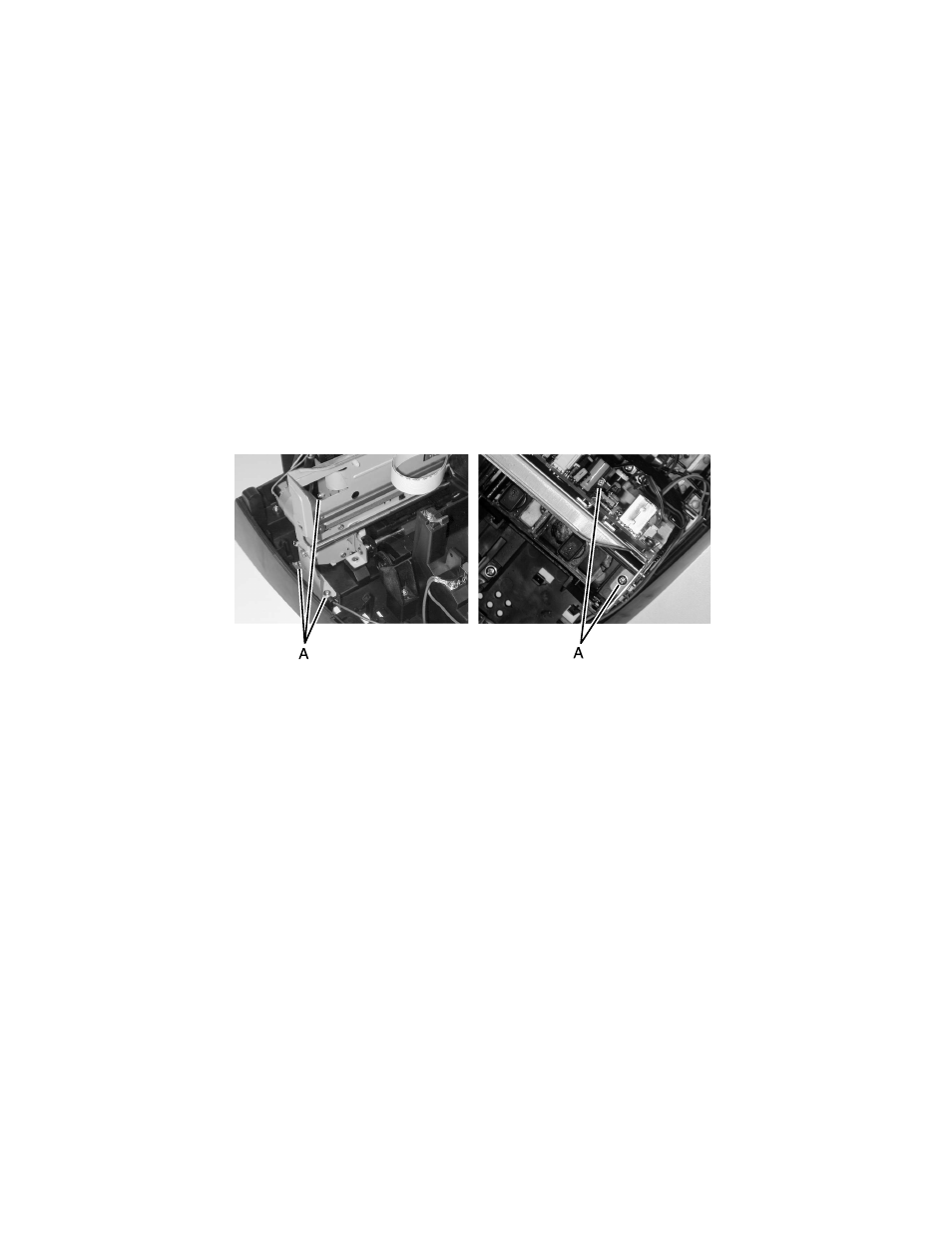

7. Remove five screws (A) from the print engine.
8. Lift and remove print engine.
Note: When reassembling the print engine, be sure not to pinch or
short the wiring harness.
