Cis white roller assembly removal – Lexmark 4200 Series User Manual
Page 42
4-4
Service Manual
4413-XXX
CIS white roller assembly removal
1. Open the control panel.

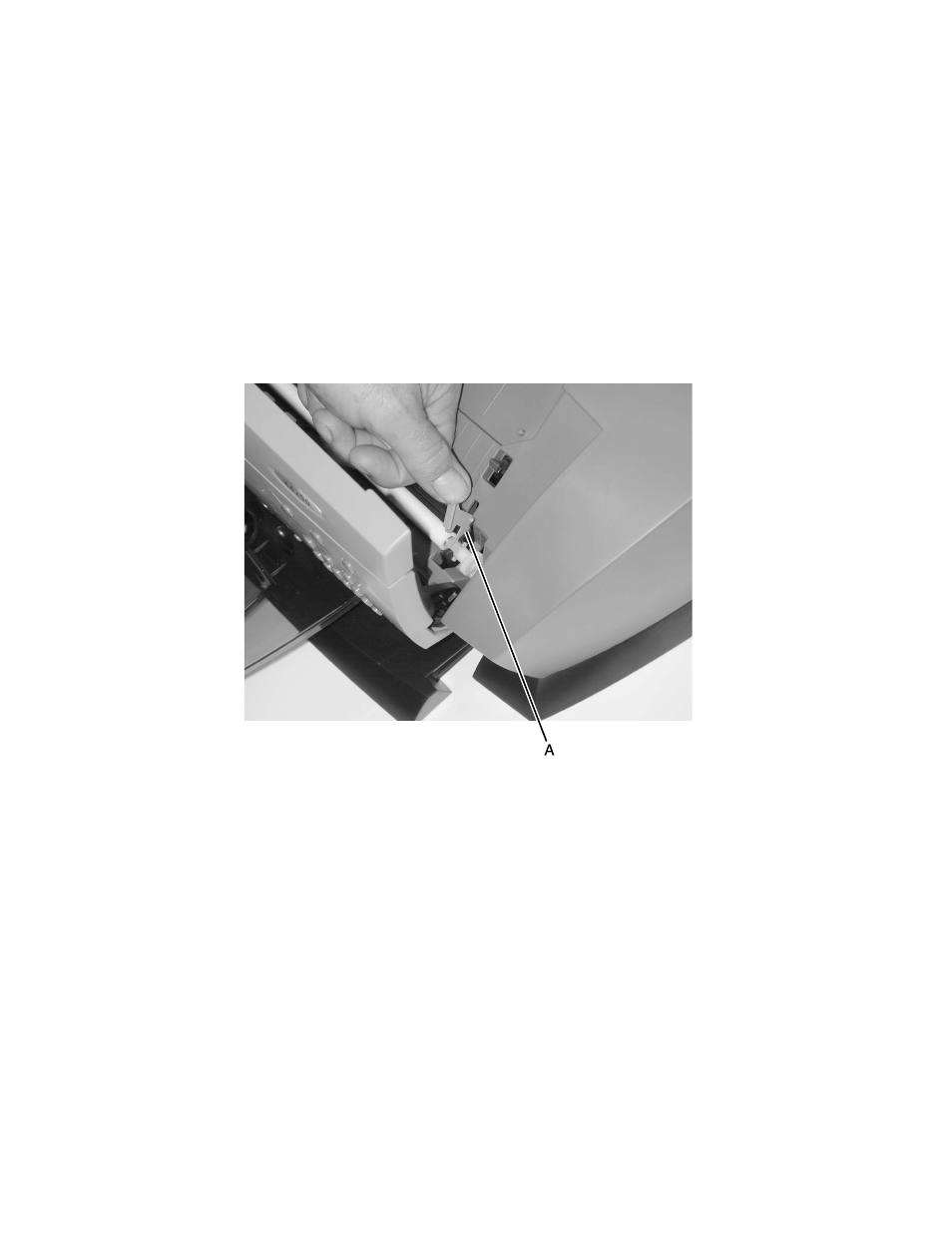

2. Press the release arm (A) on the right end of the roller slightly
inward, and then rotate it until it reaches the slot. Lift the roller
out.
Note: If the roller is dirty, wipe it with a soft cloth dampened
with water. If the roller is heavily worn, replace it.
