Page 48: Maintenance station removal” on, Belt/idler pulley assembly
4-14
Service Manual
4402-001
Maintenance Station Removal
1. Remove the middle frame assembly.
2. Remove the print engine.

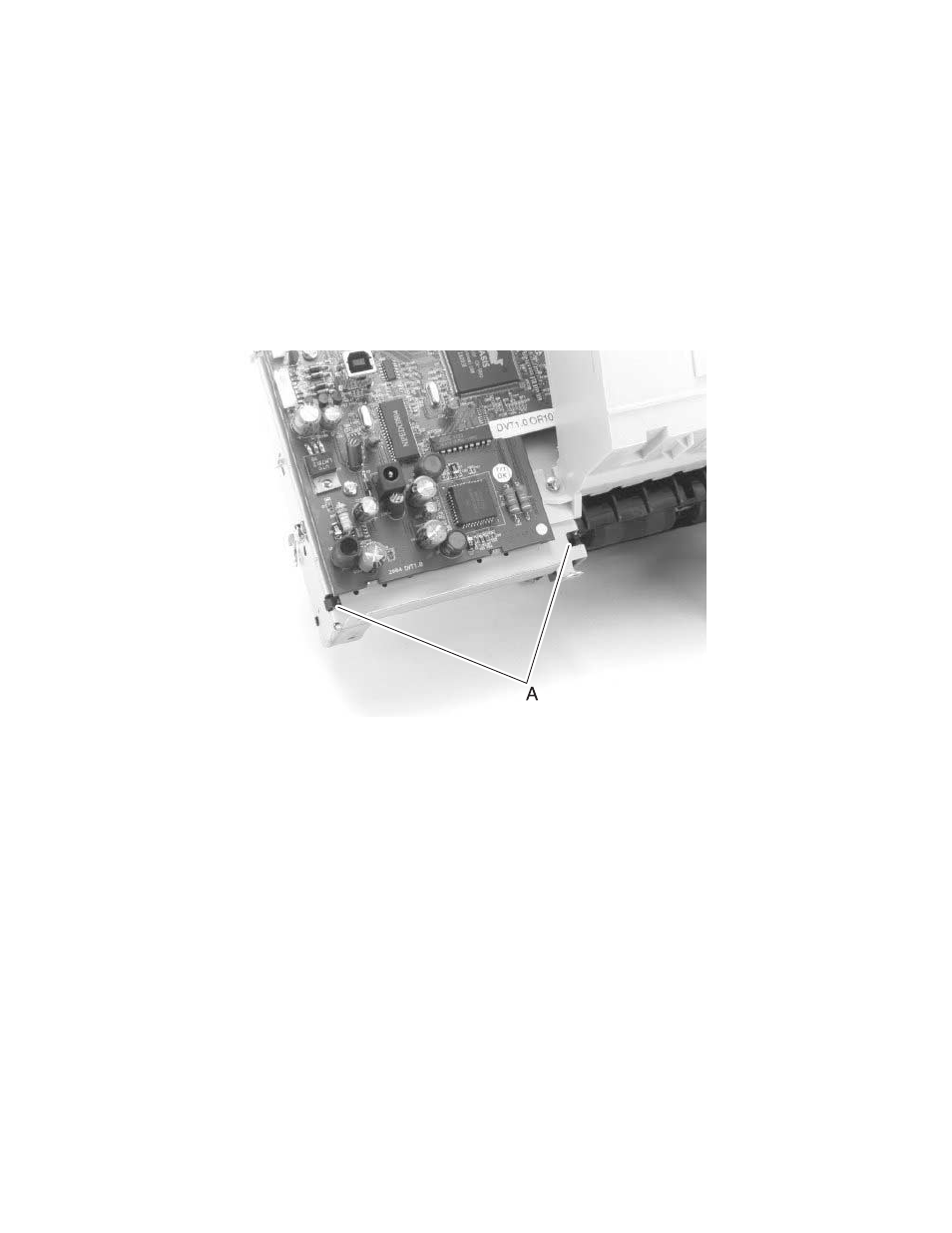

3. Depress the two clips [A].
4. Remove the maintenance station.
Belt/Idler Pulley Assembly (Print Engine) Removal
1. Remove the middle frame.
2. Slide the carrier to the left.
3. Loosen the belt tensioner adjuster screw.
4. Depress the belt tensioner and remove the belt from the pulley.
5. Depress the latch.
6. Slide the belt tensioner to the right and remove.
