4-12 Service Manual
4402-001

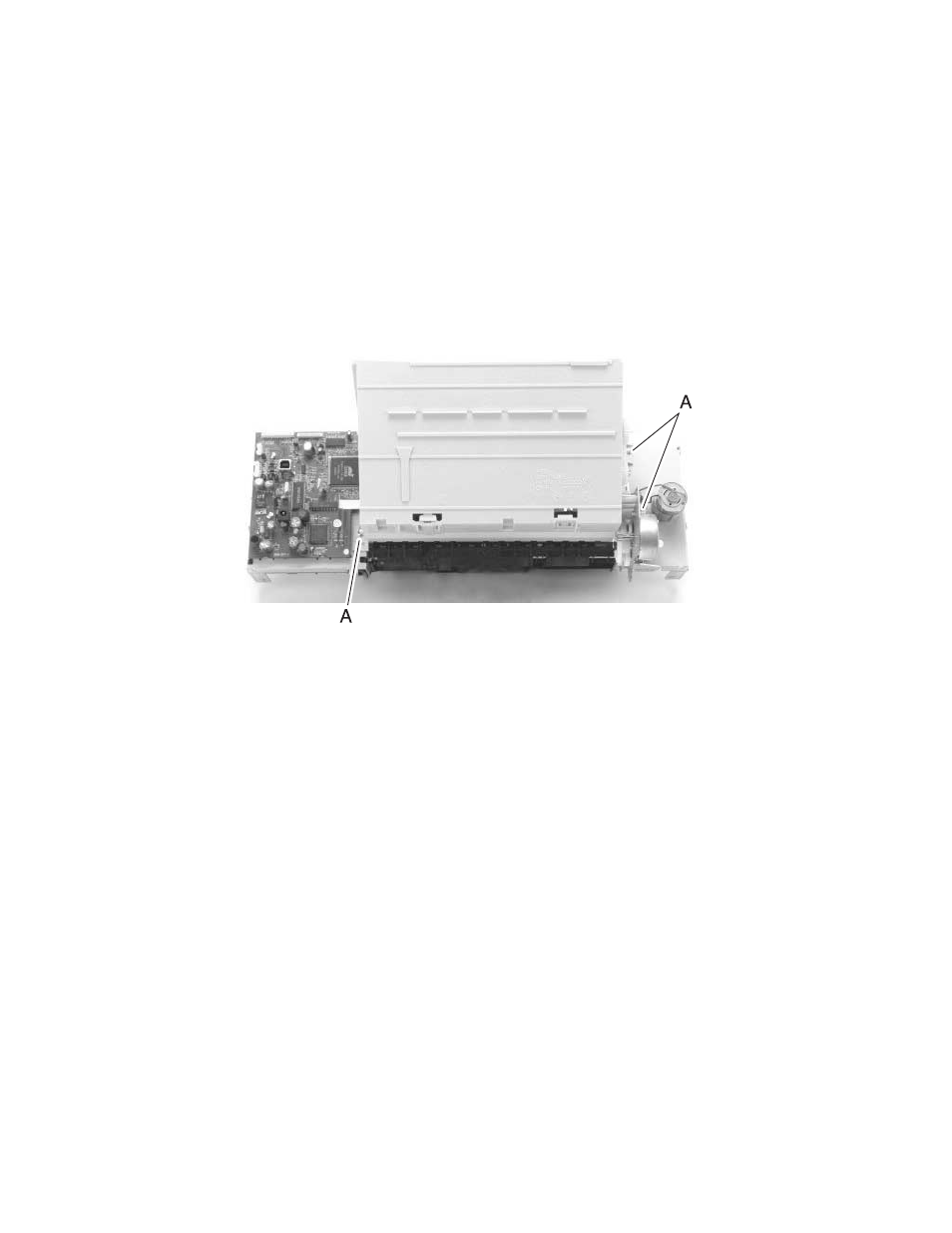

ASF Module Removal
1. Remove the print engine.
2. Remove three screws [A].
3. Remove the ASF module.
System Board Removal
1. Remove the print engine.
2. Remove the ASF module.
3. Disconnect the transport and paper feed motor cables from the
system board.
4. Remove the four screws.
5. Remove the system board.
WARNING: When removing the system board, use care not to
damage the EOF flag.
