Page 40: Gear train
4-6
Service Manual
4402-001

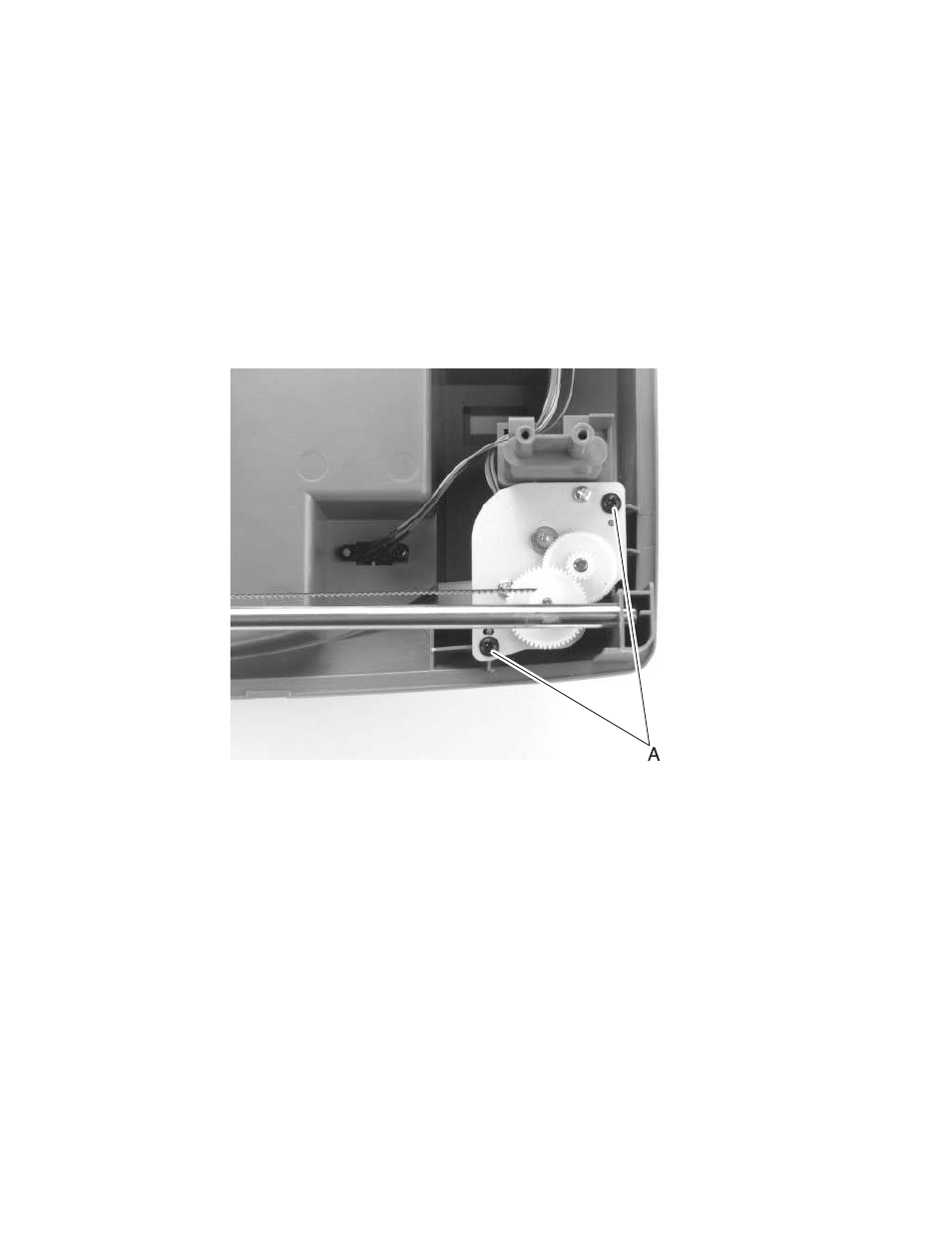

Gear Train Assembly Removal
1. Remove the CCD module assembly.
2. Disconnect the gear train assembly cable from the system
board.
3. Remove two screws [A].
4. Lift and remove the gear train assembly.
Access Cover Sensor Removal
1. Remove the top housing assembly.
2. Disconnect the access cover sensor cable (J9) from the system
board.
3. Remove the sensor screw [B].
4. Remove the sensor. Note routing of cables.
