Page 51

Repair Information 4-19

4090-001

Printhead Carrier Assembly Removal

1. Remove the front cover.

2. Unlock the two printhead cable connectors and disconnect the

printhead cable from the system board.

3. Remove the retainer from the right end of the carrier guide rod.

4. Slide the carrier guide rod to the left, out of the printer.

5. Lift the carrier out of the printer.

Printhead Rubber Backer Removal

1. Remove the front cover.

2. Remove the printhead carrier assembly.

3. Separate the cradle from the printhead carrier assembly by

pushing out the cradle latches [A].

4. Remove the rubber backer and paper deflector from under the

printhead carrier cable.

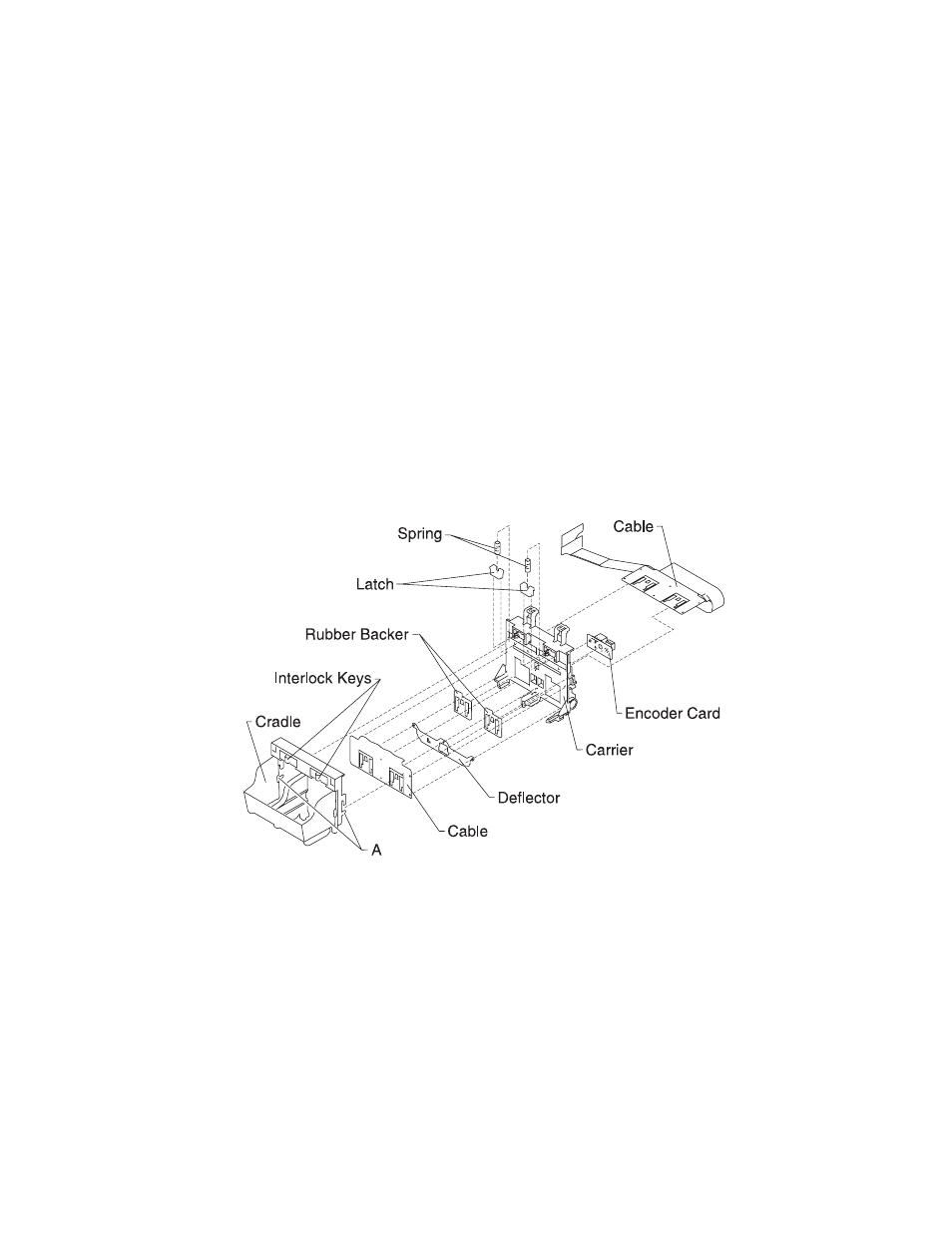

Note: Use the illustration to assemble the carrier parts in the correct
sequence.
