4-14
4090-001
Paper Feed Motor Removal
1. Remove the front cover.
2. Remove the rear cover.
3. Remove the base assembly.
4. Remove the two screws securing the paper feed motor and
remove the motor. Note the routing of the motor cable.
Paper Guide and EOF Flag Assembly Removal
1. Remove the front cover.
2. Remove the rear cover.
3. Remove the printhead carrier assembly.
4. Remove the carrier frame assembly.
5. Remove the encoder strip.
6. Remove the system board.
7. Remove the three small feed roll springs.

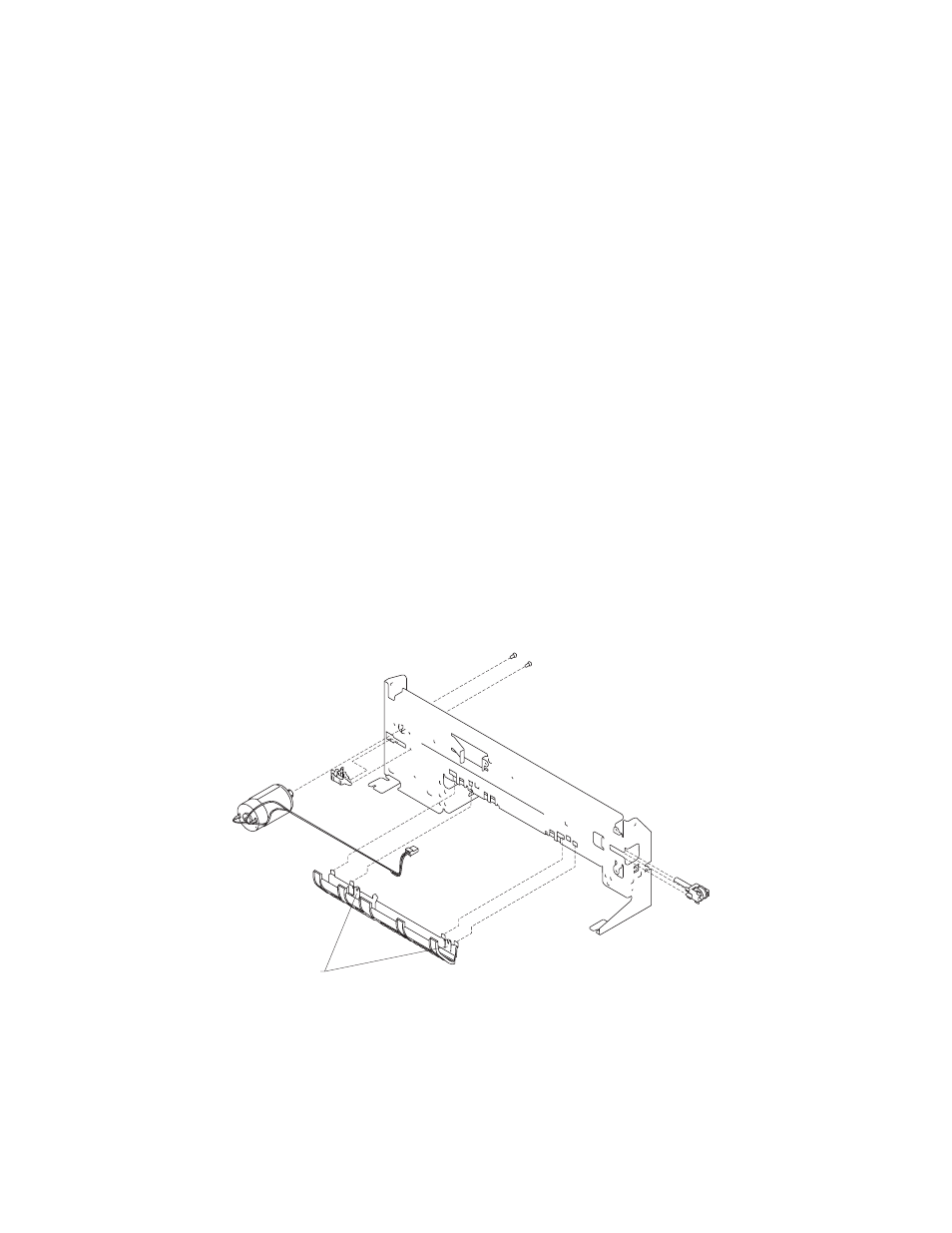

8. Push the locking tabs [A] to the rear and pull the paper guide
down and out of the carrier frame.
A
