Repair Information 4-17

4090-001

Printhead Cable, Cradle & Paper Deflector Removal

1. Remove the front cover.

2. Remove the printhead carrier assembly.

3. Disconnect the printhead cable from the encoder card. Note the

routing of the cable under the retaining clip on the carrier.

4. Separate the cradle from the printhead carrier assembly by

pushing out the cradle latches [A].

5. Feed the folded end of the printhead cable through the opening

in the carrier assembly and remove the cable.

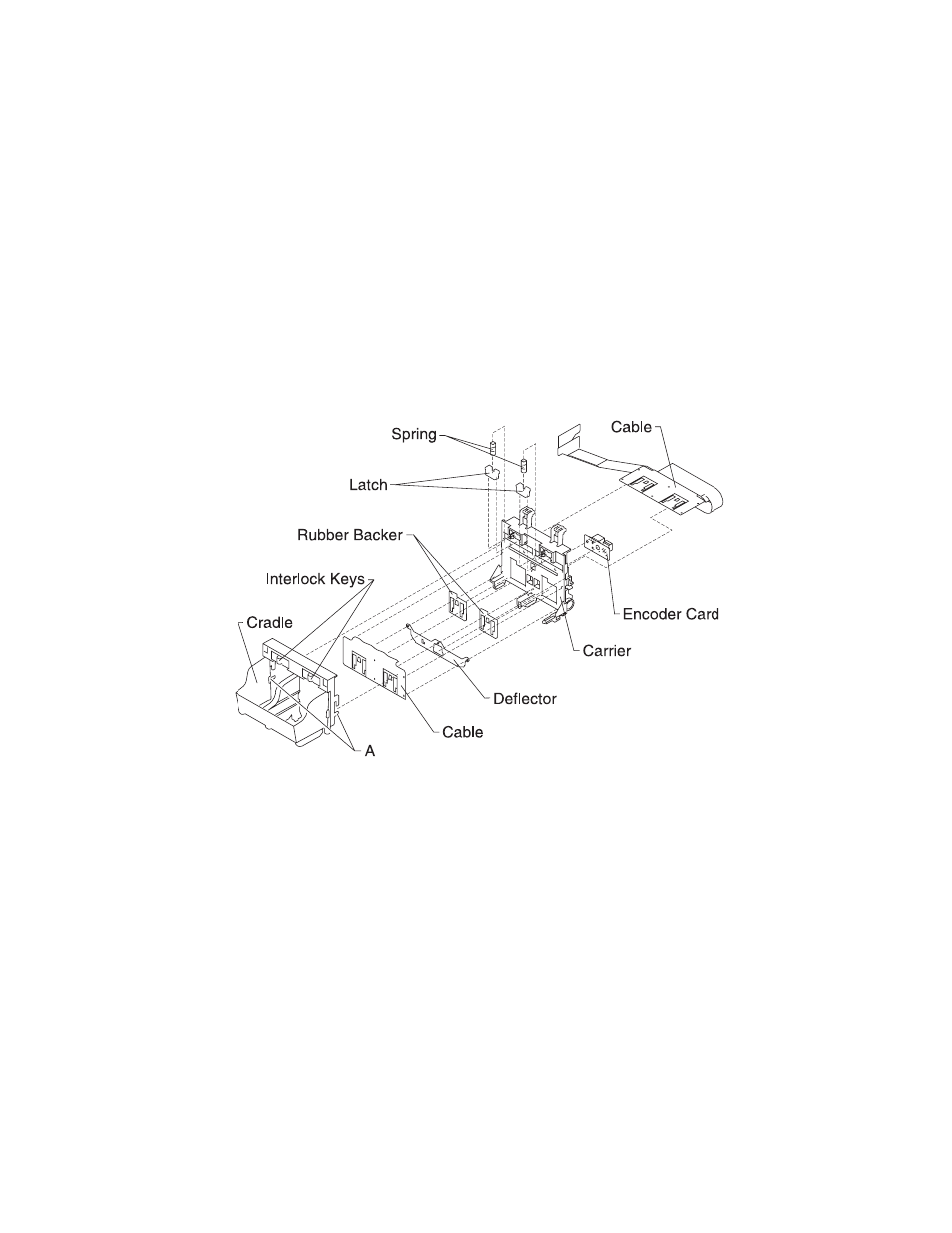

Note: Use the illustration to assemble the carrier parts in the correct
sequence.
