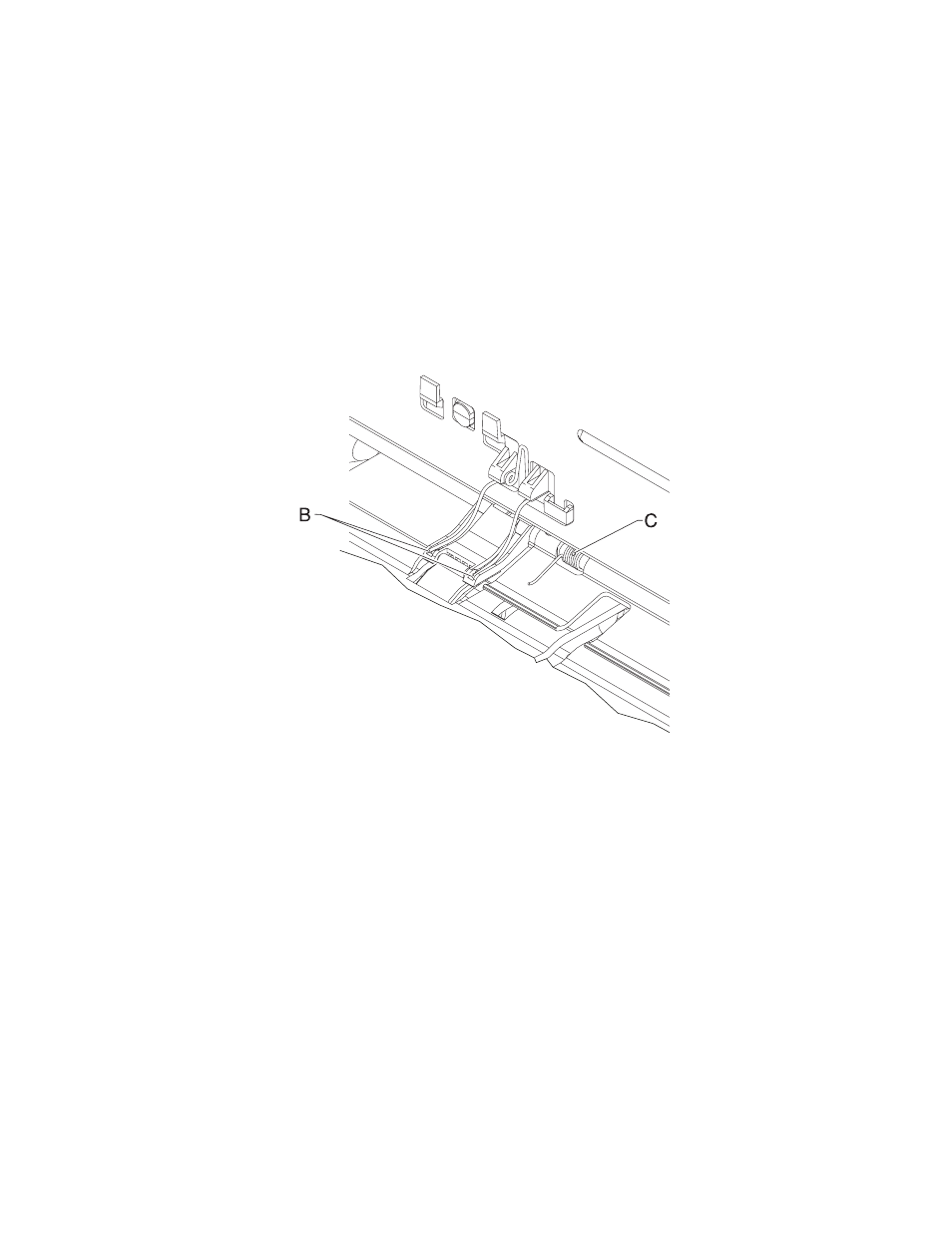

Note: During reassembly:

1. Be sure the small feed roll spring extensions [B] are in the

groves of the small feed roll arms.

2. Be sure the short extensions of the two paper flap springs are

trapped under the carrier frame [C].

Carrier Transport Motor Removal

1. Remove the front cover.

2. Disconnect the transport motor connector from the system

board.

3. Remove the belt from the transport motor pulley.

4. Remove the two screws securing the transport motor to the

carrier frame and remove the motor. Note the routing of the
motor cable.
