Chapter 4. FUNCTION BLOCK
4 - 1
CHAPTER 4. FUNCTION BLOCK
This shows function block for A/D conversion module on the GMWIN.
A kind of function block is as follows.
The function block type and functions of input/output parameters of G3F-AD3A and G4F-AD3A are same.
Function Block is inserted on the execution of the GMWIN according to following procedure.
Function block can be inserted only in the open condition of the Project.
select
G3F-AD3A G4F-AD3A G6F-AD2A
No
Local Remote Local Remote Local Remote
Function
1 AD3INI ADR3INI AD3INI ADR3INI AD2INI ADR62INI Initializing module
2 AD3ARD ADR3RD AD3ARD ADR3RD AD2ARD ADR62RD Reading A/D converted value(array Type)
3 AD3RD - AD3RD - AD2RD - Reading A/D converted value(Single Type)

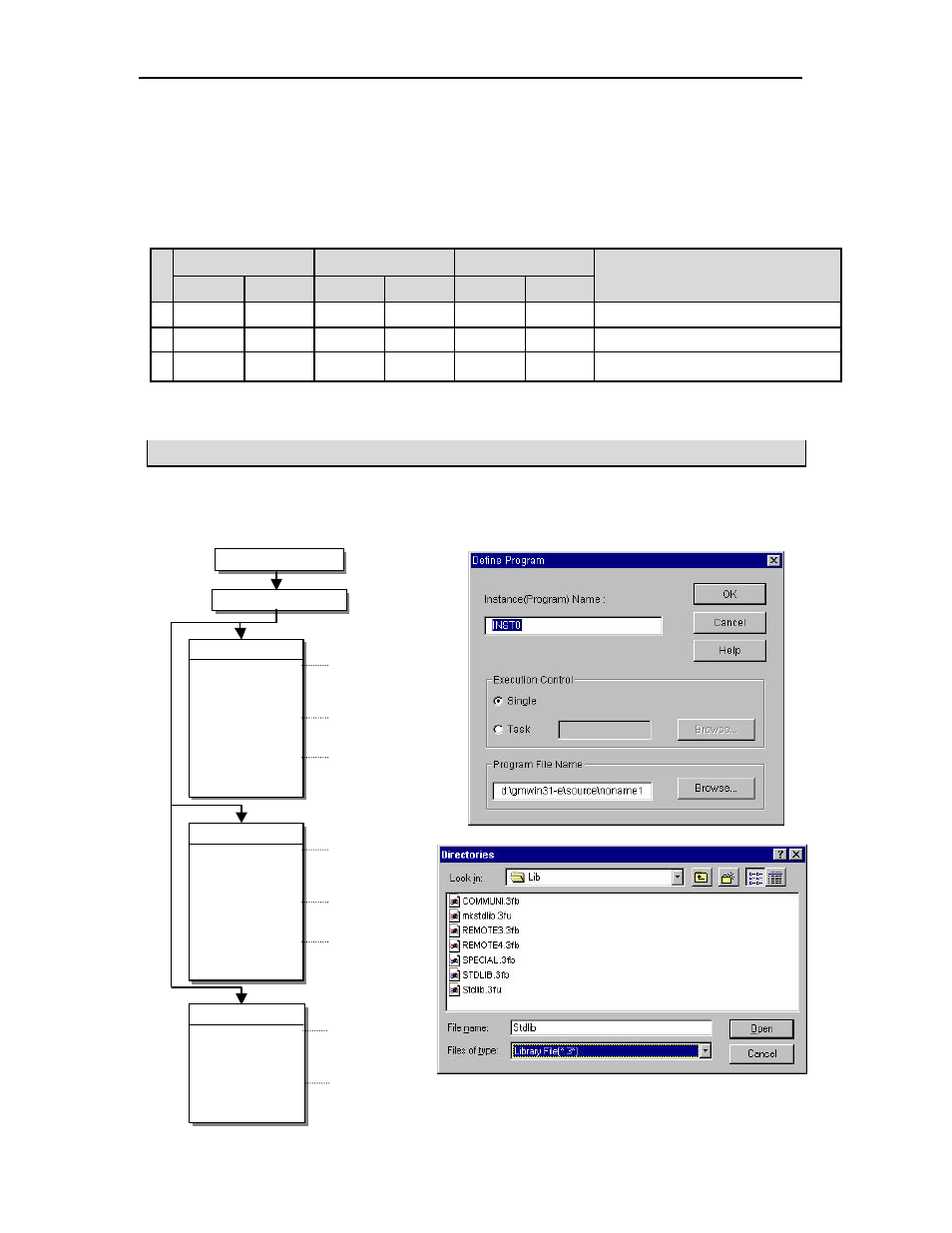

4.1 Registration of the Function Block for A/D Conversion Module on the GMWIN
Project(P)
Library Insertion(I)
G3F – AD3A
1. Special.3fb
. AD3INI
. AD3ARD
. AD3RD
2. Remote3.3fb
. ADR3INI
. ADR3RD
3. Remote4.3fb
. ADR3INI
. ADR3RD
G4F – AD3A
1. Special.4fb
. AD3INI
. AD3ARD
. AD3RD
2. Remote4.4fb
. ADR3INI
. ADR3RD
3. Remote3.4fb
. ADR3INI
. ADR3RD
Function block
Insertion for Local
Function block
insertion
for Remote GM3
Function block
insertion
for Remote GM4
Function block
insertion
for Local
Function block
insertion
for Remote GM4
Function block
insertion
for Remote GM3
G6F – AD2A
1. Special.6fb
. AD2INI
. AD2ARD
. AD2RD
2. Remote6.6fb
. ADR62INI
. ADR62RD
Function block
insertion
for Local
Function block
insertion
for Remote GM6
