4.4 Setting up the data connections
Printer (optional)
•
Lift off the instrument console flap (12).
•
Connect the printer to the printer port (7) via
a standard Centronics cable (refer

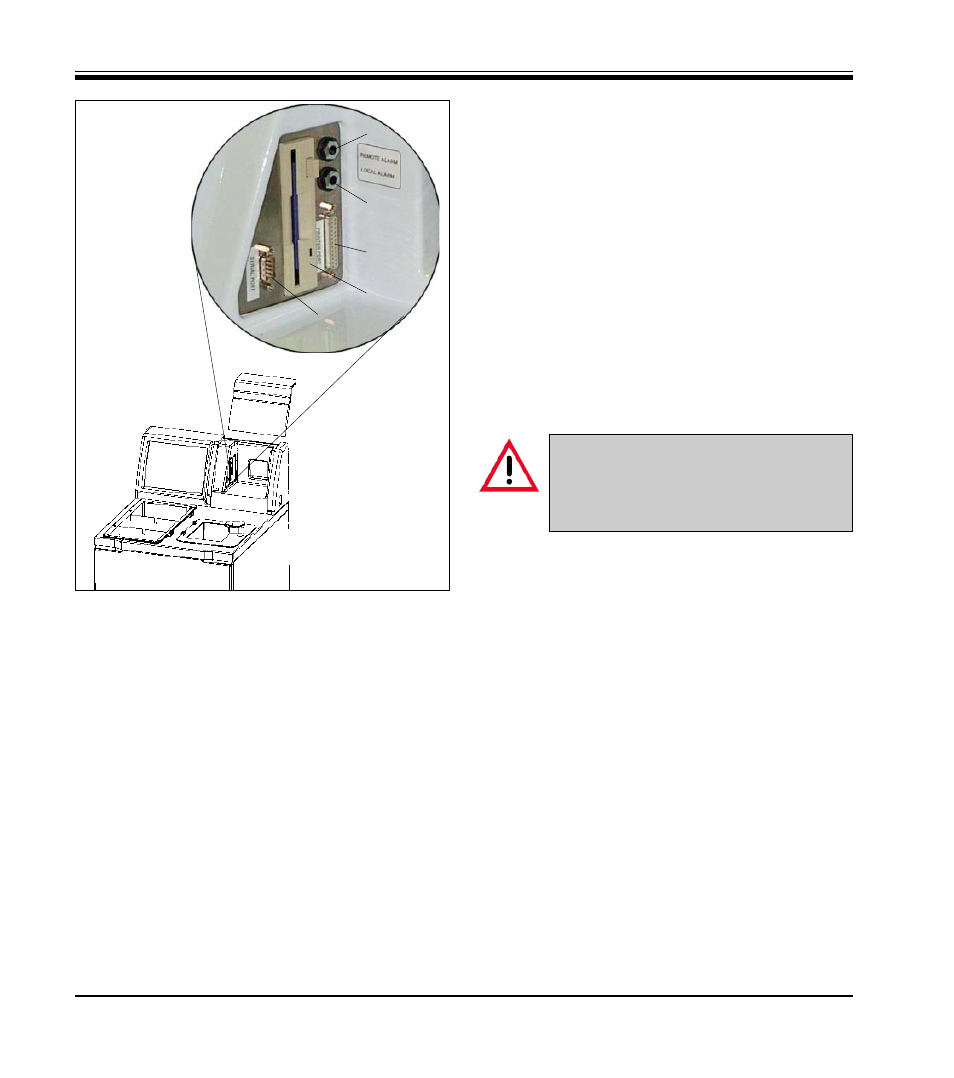

Fig. 6
).
Other connections
•
For additional data transfer and storage the
instrument console is equipped with a stan-
dard 1.44 MB floppy drive (10) for 3.5 “ dis-
kettes and with an RS 232 serial port (11) .
Only instruments which satisfy the re-
quirements for SELV circuits may be
connected to interfaces (7), (8), (9)
and (11).
12
9
8
10
11
Fig. 6
