TROUBLESHOOTING & REPAIR
F-37 F-37
COMMANDER 500 Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC

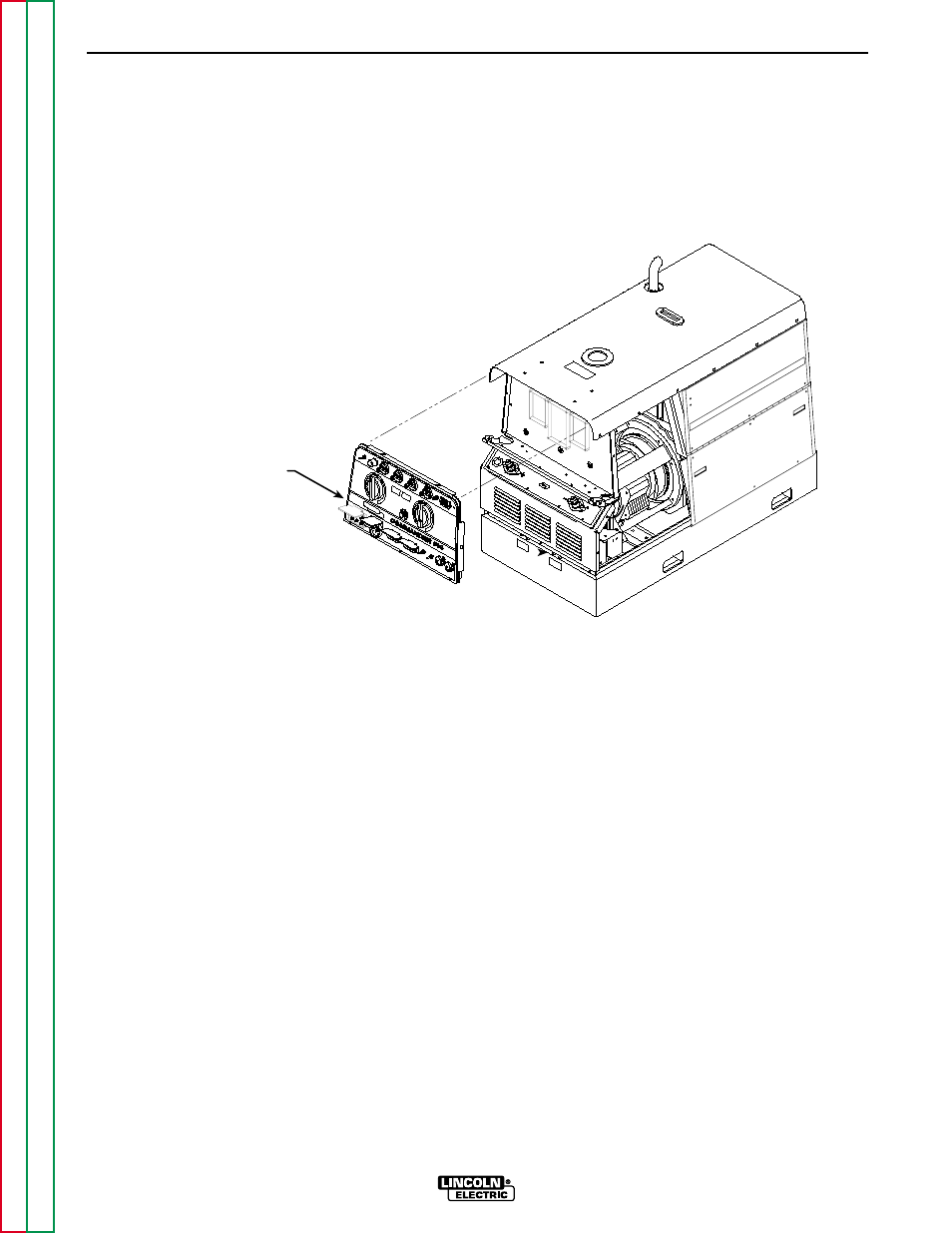

AUXILIARY
LEADS #5B, #5E,
#8, #9, #11, #12
(BEHIND PANEL)
FIGURE F.15 – AUXILIARY LEAD TEST LOCATION
STATOR VOLTAGE TEST (CONTINUED)
AUXILIARY POWER AND WELD
WINDINGS TEST
1. Start the engine and run at high idle (1900
RPM). Do not load welding or auxiliary
power.
2. Check for 115-132VAC at leads #9 to #5B.
Also check for 115-132VAC from leads #8 to
#5E. See Figure F.15 and the Wiring
Diagram.
3. Check for 230 to 264VAC at leads #11 to
#12. See Figure F.15 and the Wiring
Diagram.
