For server models with 12 3.5-inch hard disk drive bays, the machine type, model, and serial number label is
attached on the left side of the server.

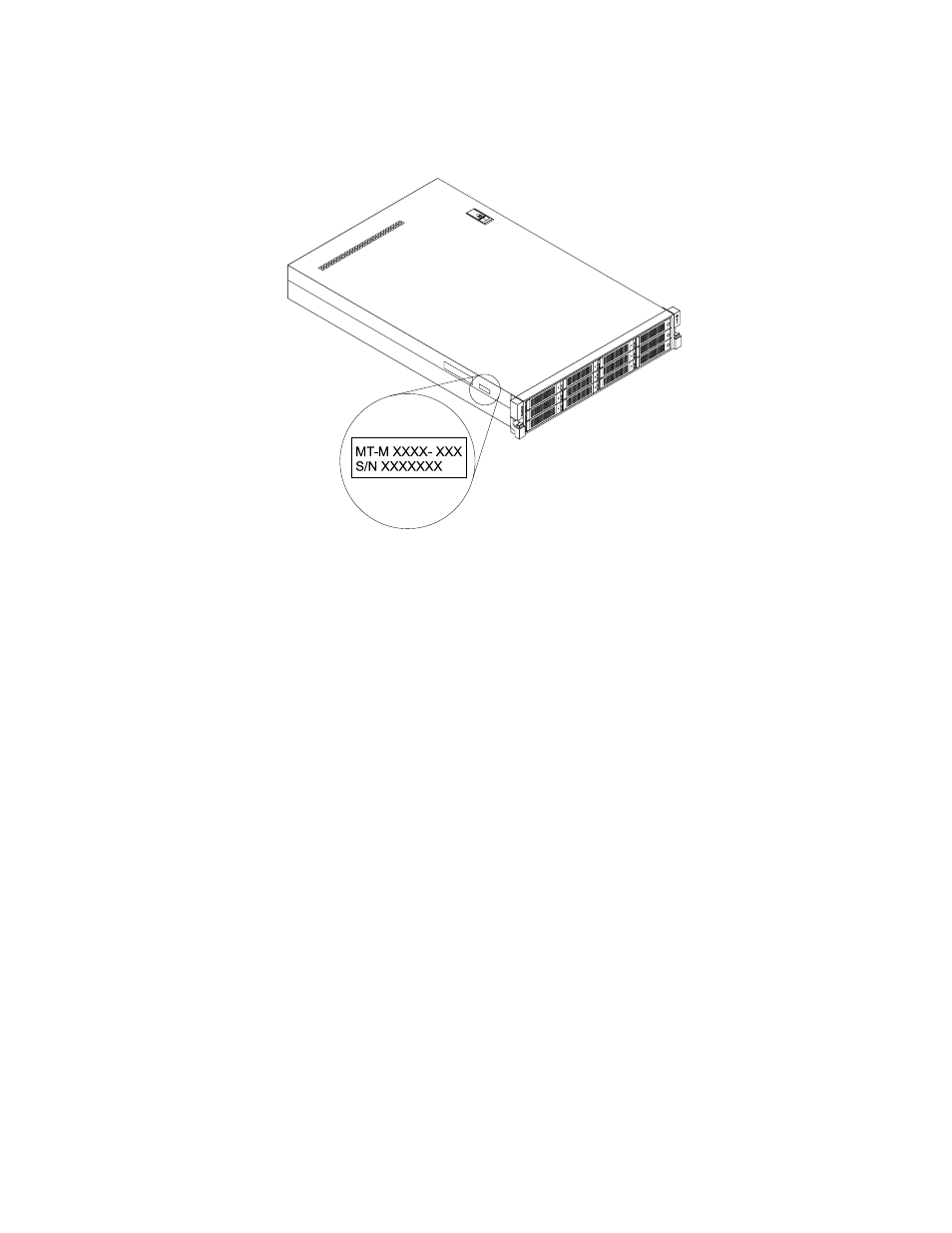

Figure 4. Label on server models with 12 3.5-inch hard disk drive bays
Front view of the server
This topic provides information to help you locate the parts on the front of the server.
The front view of the server varies by model. The illustrations in this topic show the server front views
based on the supported hard disk drives:
• “Front view of server models with eight 3.5-inch hard disk drive bays” on page 16
• “Front view of server models with 12 3.5-inch hard disk drive bays” on page 17
• “Front view of server models with 2.5-inch hard disk drive bays” on page 20
Note: Depending on the model, your server might look slightly different from the illustrations in this topic.
Chapter 3 . Product overview 15
