2 redundant fan for power module, Figure 37 redundant power module fan set, Figure 38 communication bays and cable location – Liebert Emerson NX UPS System User Manual

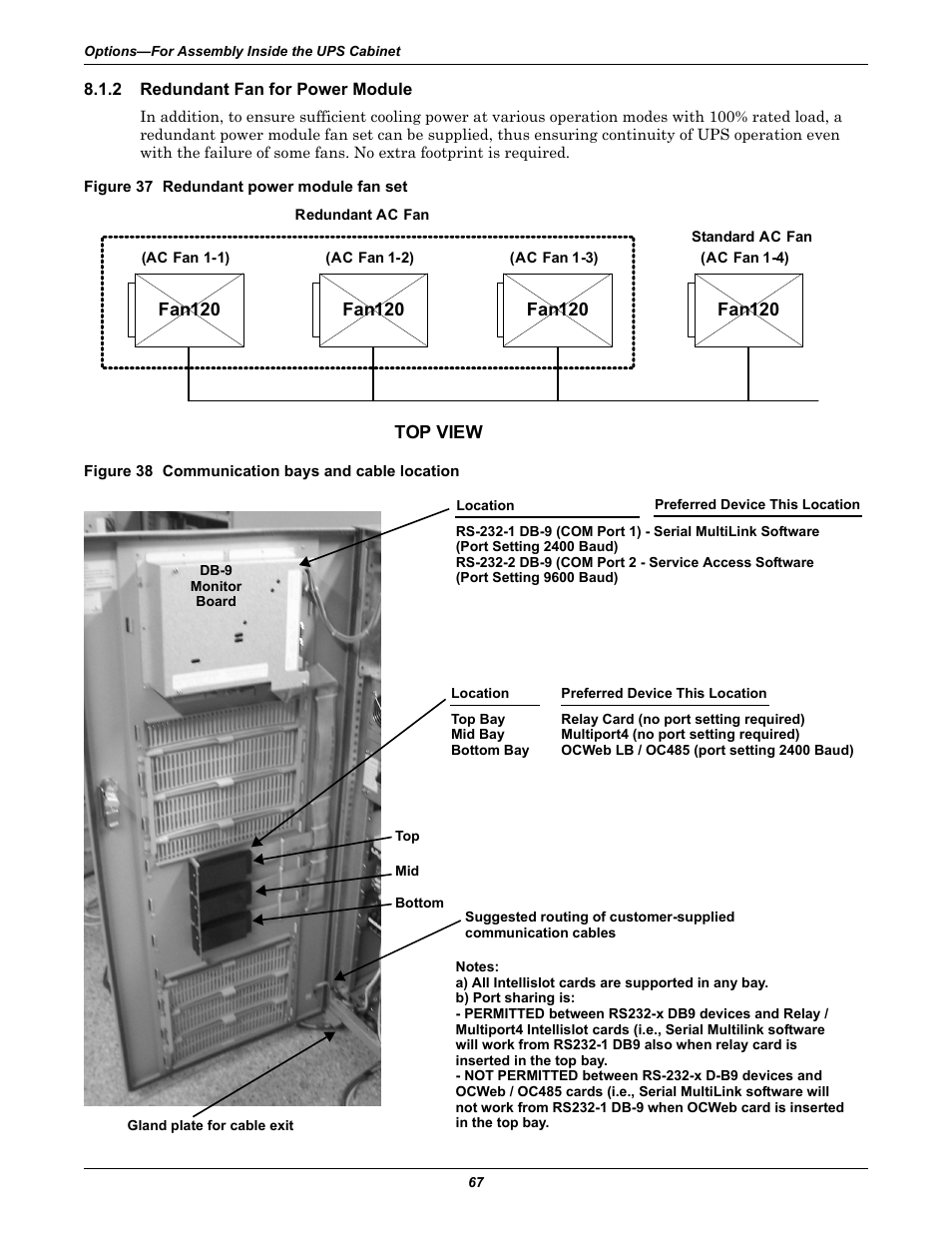

Page 75: Redundant fan for power module, Fan120, Top view
