1 mimic power flow, Table 12 rectifier indicator-1, Table 13 battery indicator-2 – Liebert Emerson NX UPS System User Manual

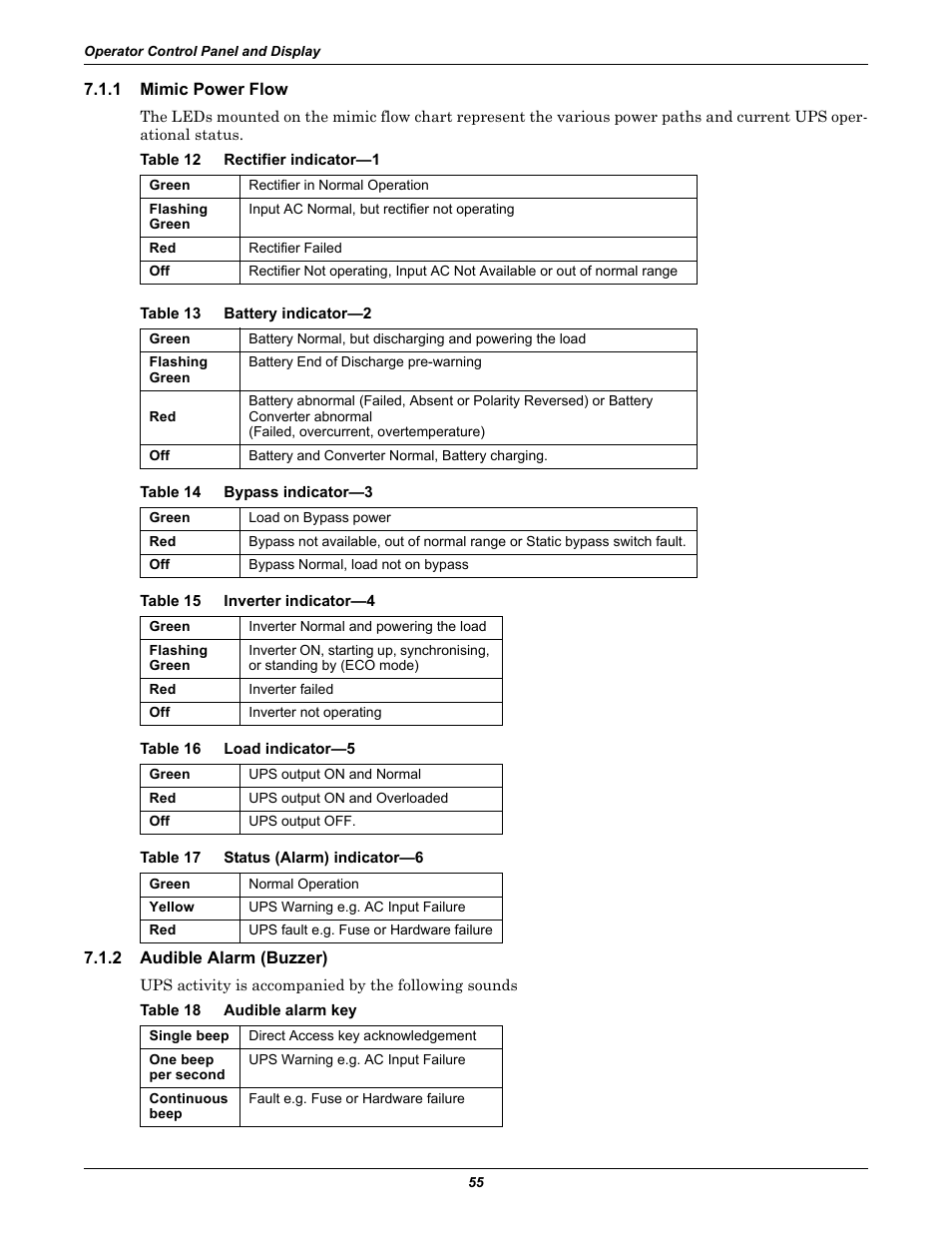

Page 63: Table 14 bypass indicator-3, Table 15 inverter indicator-4, Table 16 load indicator-5, Table 17 status (alarm) indicator-6, 2 audible alarm (buzzer), Table 18 audible alarm key, Mimic power flow
1 mimic power flow, Table 12 rectifier indicator-1, Table 13 battery indicator-2 | Table 14 bypass indicator-3, Table 15 inverter indicator-4, Table 16 load indicator-5, Table 17 status (alarm) indicator-6, 2 audible alarm (buzzer), Table 18 audible alarm key, Mimic power flow | Liebert Emerson NX UPS System User Manual | Page 63 / 88 See also other documents in the category Liebert Tools:
