Removing the system board access cover, 3 remove the access cover – Lexmark C 760 User Manual
Page 20
20
Install memory, firmware, or option cards
Removing the system
board access cover
1
Locate the access cover on the back of the printer.
2
Remove the four access cover screws (two at top, two at bottom).
3
Remove the access cover.
4

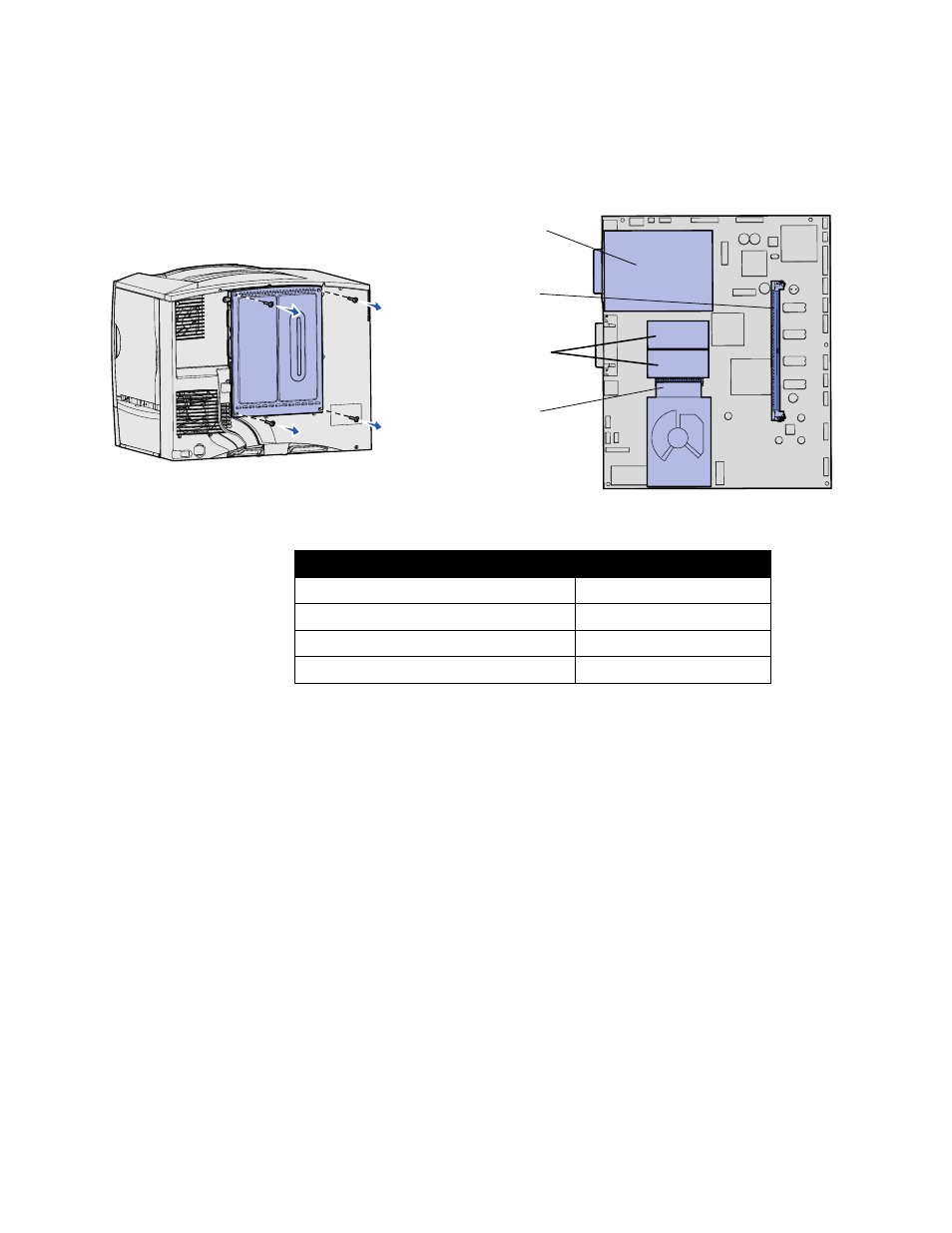

Use the illustration to locate the connector for the card you want to install.
5
Use the following table to locate the instructions you need.
Hard disk
connector
Option card
connector
Firmware and
flash memory
card connectors
Memory card
connector
To install a...
Go to page...
Memory card
Firmware card
Hard disk
Option card
