English | 15

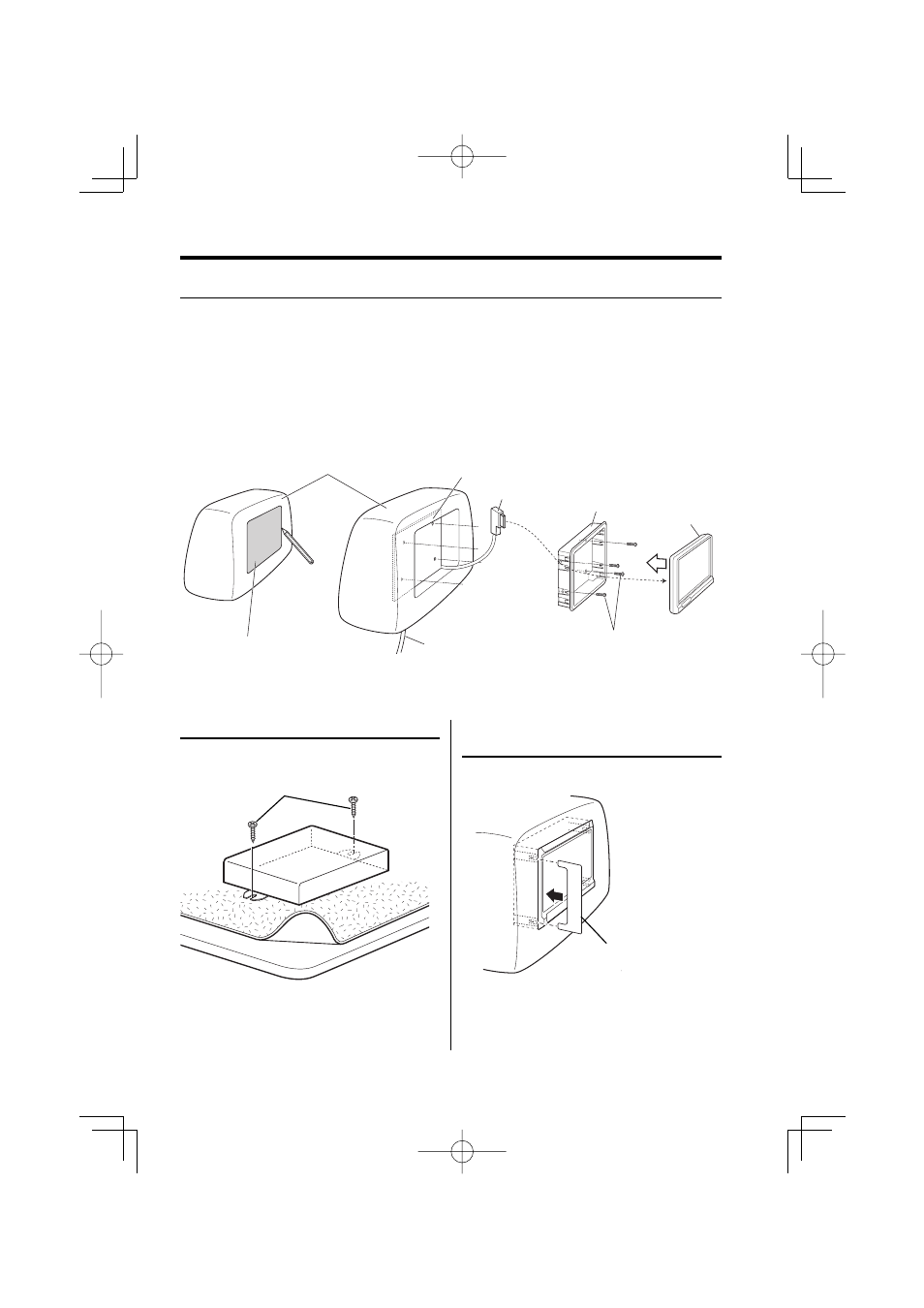

Installation for Hideaway Unit
Use screws (Accessory 6) to fix Hideaway Unit onto
an audio board or another.
Accessory 6
Installation
Installation for Monitor Unit (For Headrest)
Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and
wiring work to professionals.
Before mounting the monitor to the headrest:
• Perform the required external connections first (Accessory
2).
• Using the supplied paper pattern, mark the area to be cut out of the headrest, then carefully cut it.
1 Connect Monitor and system cord (Accessory 2).
2 Install the monitor unit in the bracket (Accessory 7).
Headrest
Accessory 7
Accessory 2
Screws (not supplied)
Monitor Unit
Installation plate (not supplied)
Paper template (Accessory 9)
Accessory 2
Removing the Monitor Unit
(For Headrest)
1 Insert the removal tool (Accessory 8) deeply
into the slots on each side, as shown.
Accessory 8
2 Pull the monitor unit all the way out with your
hands, being careful not to drop it.
