11

Duct Cover Installation

5. Use 8” round steel pipe (follow building codes

in your area) to connect the ducting transition
on the hood to the ductwork above. Use duct
tape to make all joints secure and air tight.
Refer Figure 15. Slide the duct cover onto the
hood.

6. Use 3/16” x 3/8” screws (included) to attach

duct cover to hood.

Install Accessories


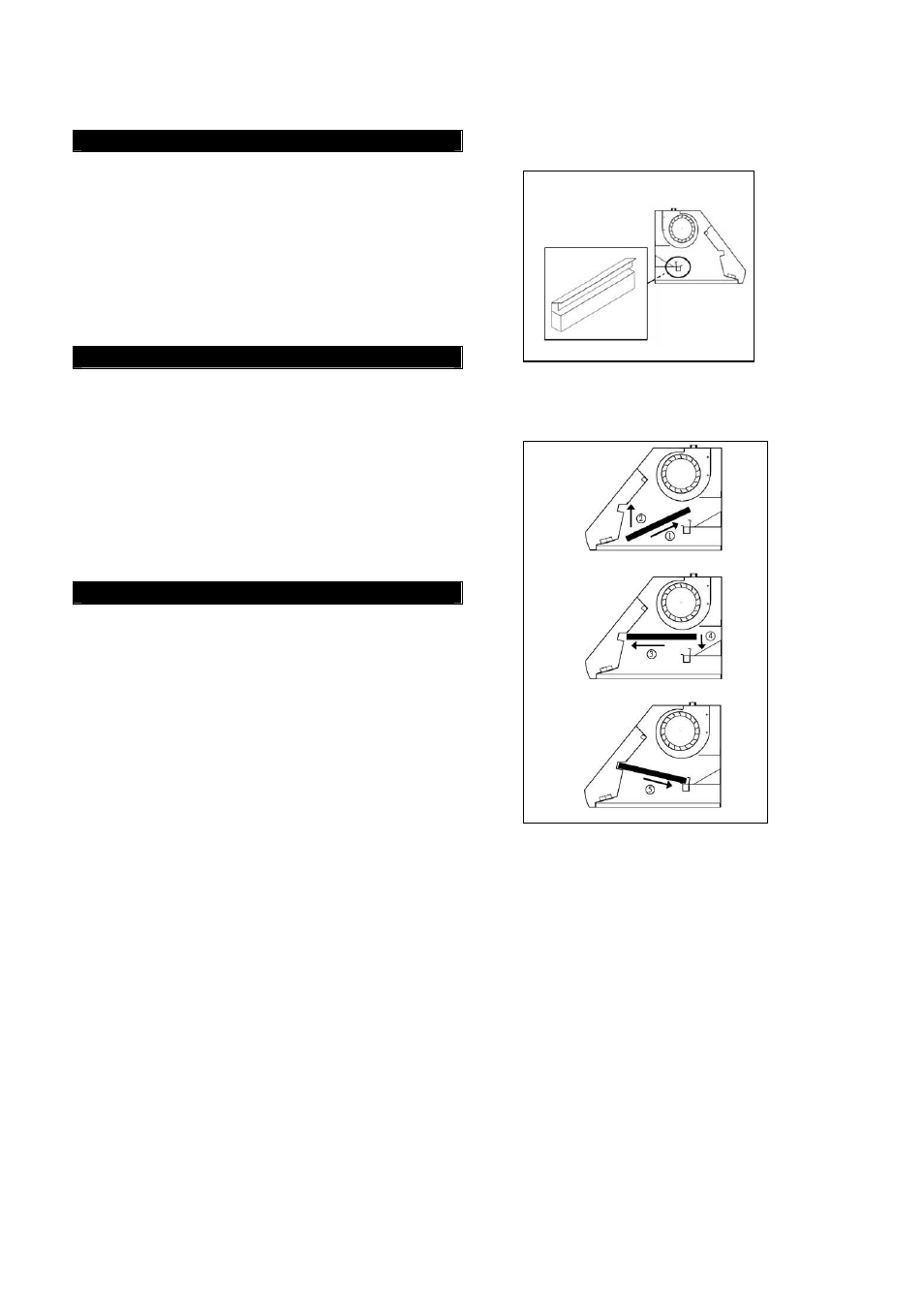

7. Attach oil tunnel. Refer to Figure 16.
8. Refer to Figure 17. Slide the baffle filter into

the hood. Push the baffle filter upward.
Slide forward. Pull downward. Fit into
place.

9. For bottom casing, repeat above steps. Refer

to page 17.

10. Install heating lamps (not included), 120 Volts

175 Watts max. each.

Final Assembly

11. Turn power ON in control panel. Check all

lights and fan operation.

12.

Make sure to leave this manual for the
homeowner.

Figure

16

Figure

17
