10

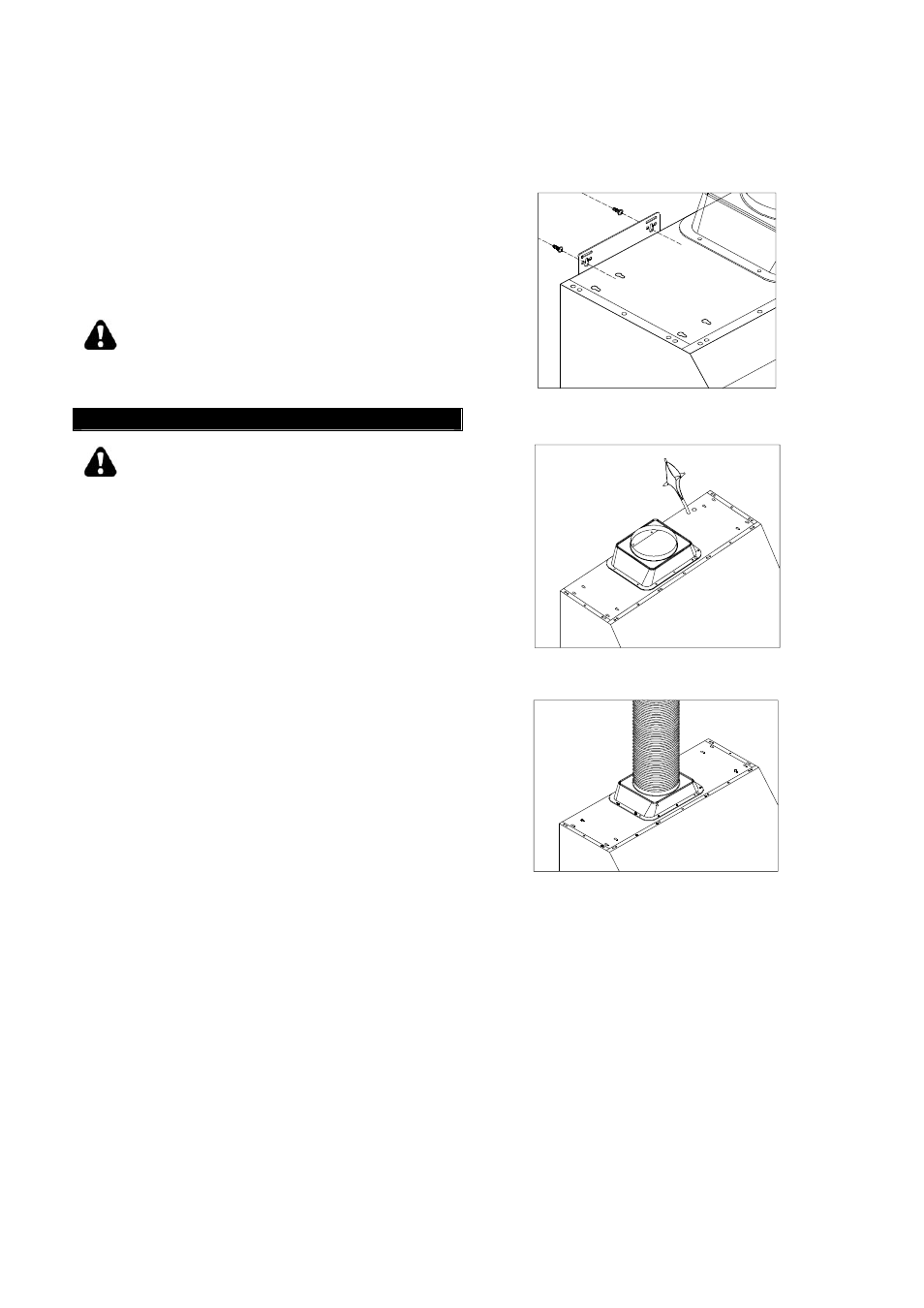

2. Align hood-mounting bracket to the two screws

on the wall and hook hood into place. Tighten
screws to secure hood to the wall.

3. For safety purpose, pre-drilled mounting holes

are provided through the back of the hood. For
a more secure installation, use as many
mounting holes as needed to secure from the
inside of hood (screws not included).

CAUTION: MAKE SURE HOOD IS SECURE

BEFORE RELEASING.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
4. Connect the electrical wires.

-

Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green to
green as shown on Figure 13.

-

If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire connections
underneath the hood. Make sure wires do
not slip between motor or any moving parts
to prevent any damage.

Figure

13

WALL

Figure

14

Figure

15
