17
AC adapter Set (sold separately)
The AC adapter AC-4 or AC-5 allows the camera to be powered from a
household outlet. The AC adapter is recommended when the camera is
interfaced with a computer or during periods of heavy use. AC adapter
model AC-4 is for use in North America, Japan, and Taiwan, and AC-5 is
for use in all other areas. The battery cannot be charged using the AC
adapter.
To use the AC Adapter AC-4 or AC-5 with this camera, DC Adapter DA-
100 is required. DC Adapter DA-100 is included in the AC Adapter Set
AC-401/501.

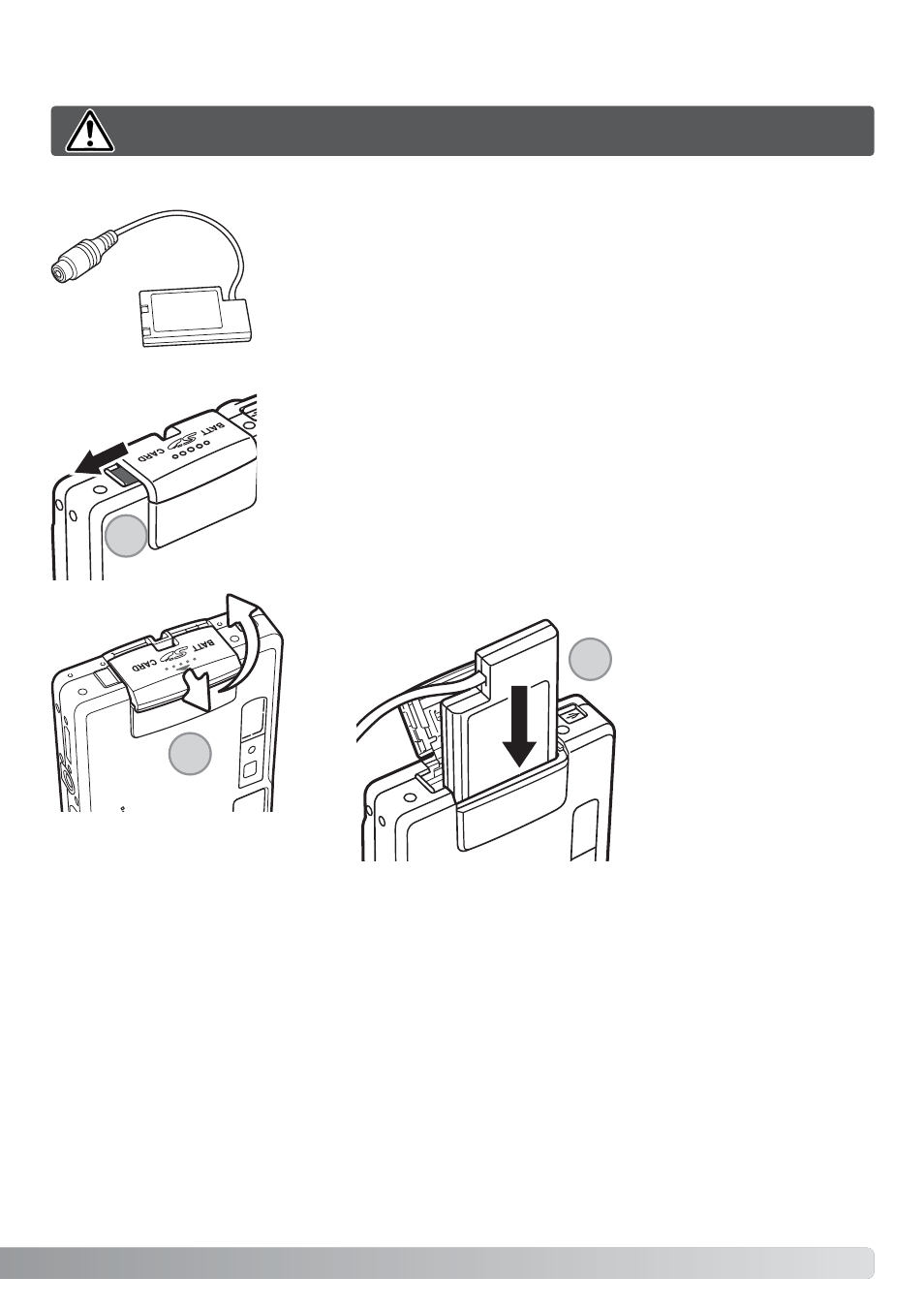

1. Open the cover on the side of the battery chamber and place the DC
adapter cable in the notch (1).
2. Slide the battery-chamber door toward the front of the camera to
release the safety catch (2). Open the door.
Always turn off the camera before changing between power supplies.
DC adapter DA-100
3. Move the battery latch towards the back of the camera to insert
the DC plug. Slide the DC plug into the battery chamber with its
terminals first until it is caught by the latch (3).
1
2
3
