KORG TR Music Workstation Operation Guide 2E ii - Manual (Page 47)

41
Quick Star
t
Sampling (recording a sample)
Check “Grid,” set “Resolution” to , and press the
[F8] (“OK”) key. Set “ (Grid Tempo)” to 140. With
these settings, vertical dotted lines will be dis-
played at 140 BPM quarter note intervals.
Set “E (End).”
When “Lp (Loop)” is On, the dotted vertical “Grid”
lines will start at “LpS (Loop Start).” If you want to
set “End” at the end of one 4/4 measure, the fourth
vertical line from the “LpS (Loop Start)” line will be
the end of the first measure. Place “E (End)” at this
vertical line.
5 Use “Truncate” to delete the unwanted data that is
outside of the start (or loop start) and end
addresses.
Press the [F8] (“UTILITY”) key to access the utility
menu, and press the [F7] key to select “Truncate.”

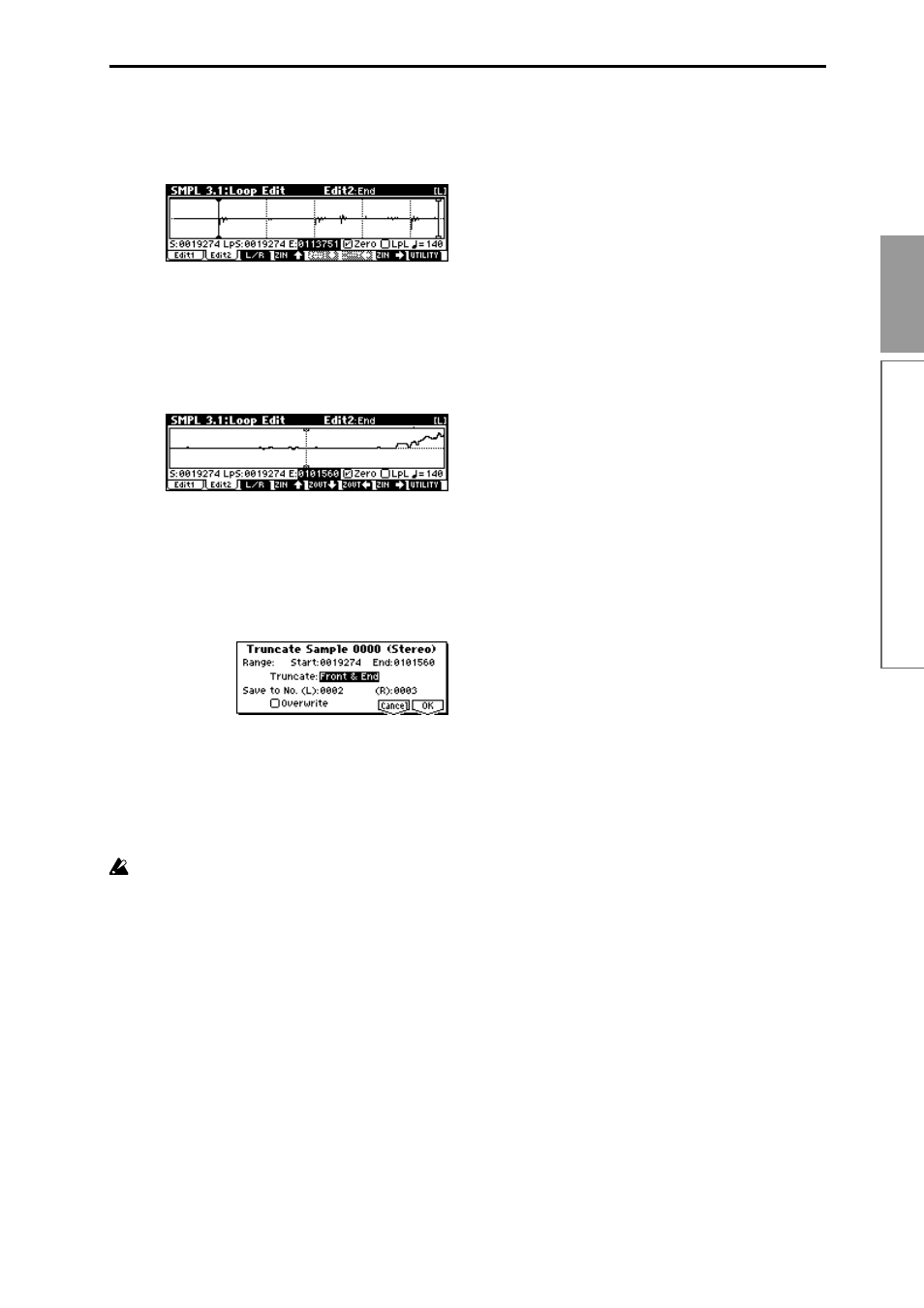

Press the [F8] (“OK”) key. The following dialog box
will appear.
Set “Truncate” to Front & End. In this example, we
will not change the settings of the “Save to No.” and
“Overwrite” check boxes, so press the [F8] (“OK”)
key to execute. When you execute the operation, the
truncated samples 0002: LOOP1-140B0002-L and
0003: LOOP1-140B0002-R
will be automatically
assigned to Index 1.
Please refer to “A note on saving samples” ( ☞ p.93)
for a cautionary note regarding the “Save to No.”
and “Overwrite” check boxes.
