Introduction

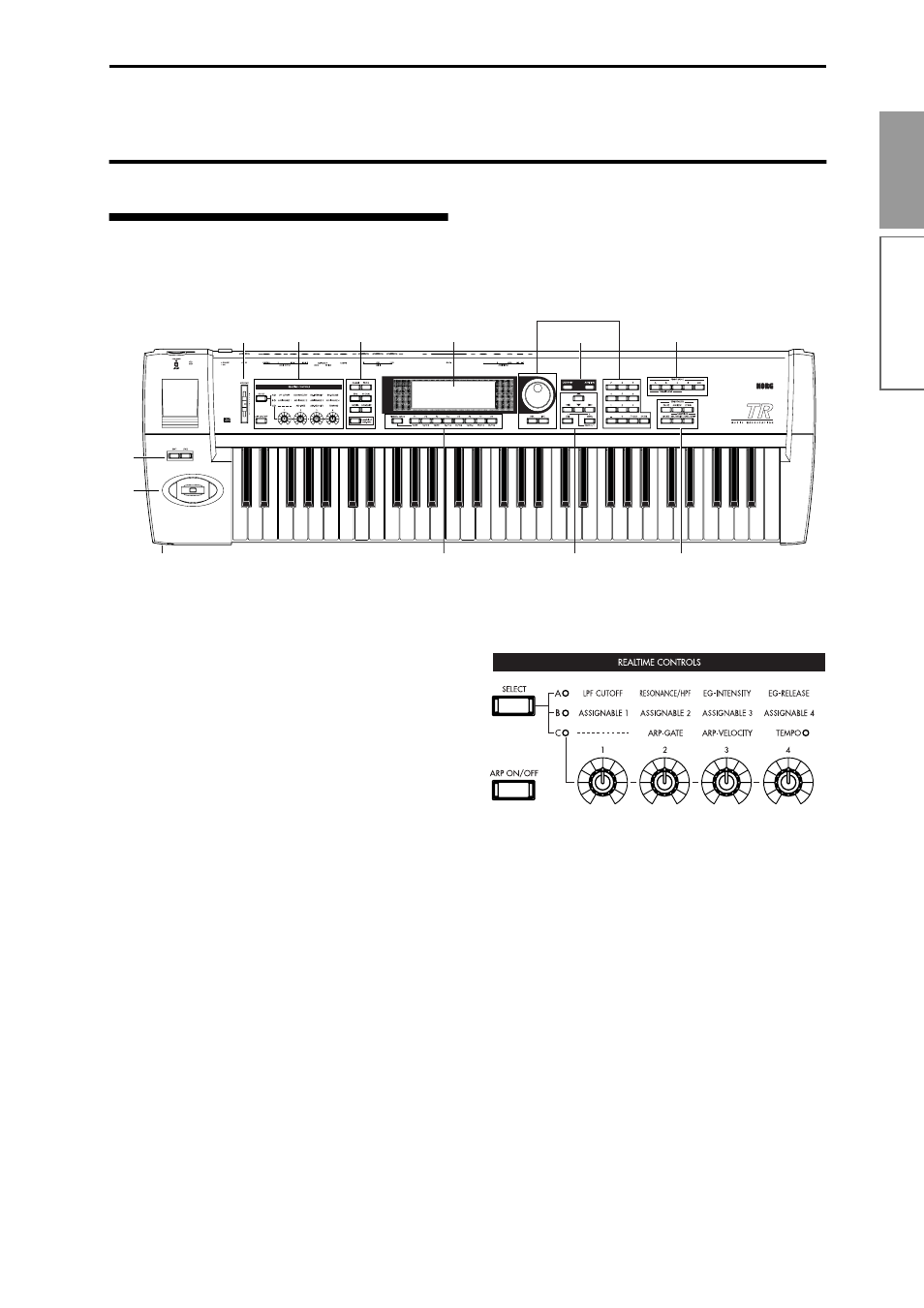

Front and rear panel

Front panel

1. [SW1] key, [SW2] key

These keys are on/off switches for the functions to
which they were assigned in Program, Combination,
Sequencer and Sampling modes (if the EXB-SMPL
option is installed). When on, the key will light
(

☞

p.24).

2. Joystick

This controls pitch or modulation, etc.
Move the joystick up/down or left/right (+Y, –Y,
–X, +X) to control (

☞

p.24).

Various program parameters and effect parameters
will determine what is controlled by the joystick.

3. Headphone jack

A set of headphones with a (1/4") stereo phone plug
can be connected here.
The output from the L/MONO and R OUTPUT jacks
can be monitored in stereo through the headphones.

4. [VOLUME] slider

This adjusts the volume that is output from the OUT-
PUT jacks (L/MONO, R) and the headphone jack.

5. REALTIME CONTROLS

Use the [SELECT] key to select realtime controller
mode A/B/C, and use knobs [1]–[4] to control the
tone, effects, MIDI control changes, and arpeggiator
etc. while you perform. (

☞

p.25, 27)

[SELECT] key

This key switches the realtime controller between A-
mode, B-mode, and C-mode. The LED of the selected
mode will light.

[ARP ON/OFF] key

This key turns the arpeggiator on/off. When on, the
key will light.

[1], [2], [3], [4] knob

A-mode

[1] LPF CUTOFF:
Controls the cutoff frequency of the low pass filter.

[2] RESONANCE/HPF:
Controls the filter resonance level or the high pass filter
cutoff frequency.
