12
Setup

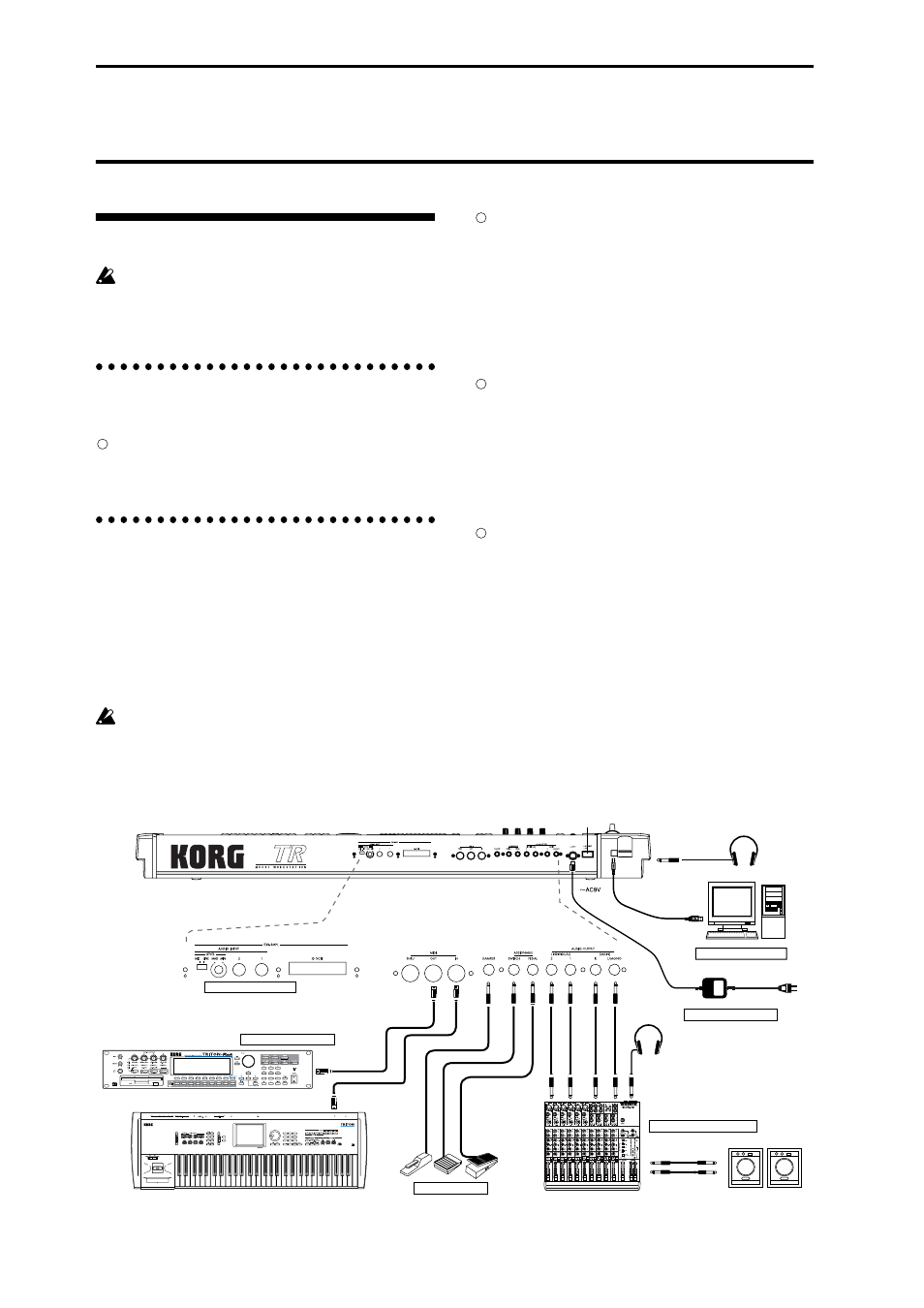

Connecting audio equipment etc.
Connections must be made with the power turned
off. Please be aware that careless operation may
damage your speaker system or cause malfunc-
tions.
1. Connecting the AC/AC power
supply
Connect the included AC/AC power supply to the
AC power supply inlet of TR, and then connect the
other end of the cable to an AC outlet.
2. Connecting audio output devices
AUDIO OUTPUT (MAIN) L/MONO, R,
(INDIVIDUAL) 1, 2
Here, you can connect a set of amplified monitor
speakers or your audio system to output TR’s sound.
If you wish to use the AUDIO OUTPUT (INDIVID-
UAL) 1–2 jacks of TR, we recommend that you use a
mixer.
If you playback TR through your stereo audio sys-
tem, be aware that high volumes may damage
your speakers. Be careful not to raise the volume
excessively.
Connect the AUDIO OUTPUT (MAIN) L/MONO
and R jacks to the INPUT jacks of your powered
monitor system, mixer etc.
L/MONO and R are the main outputs. If you are
outputting in stereo, make connections to the
(MAIN) L/MONO jack and the R jack. If you are
outputting in monaural, make connections to the
(MAIN) L/MONO jack. We recommend that you
playback in stereo if possible.
If you wish to output from the AUDIO OUTPUT
(INDIVIDUAL) 1, 2, jacks, connect these jacks to
your mixer, and then connect the mixer output to
the INPUT of your powered monitor system etc.
For details on the output of each jack ( ☞ p.112–
“Routing”).
Headphones
When using headphones, plug them into the head-
phones jack located on the front panel.
Power Switch
PHONES
Headphones
to an AC outlet
AC/AC power supply
Connecting the power cable
Connection to a computer
INPUT PHONES
Headphones
Connecting audio output devices
Powered monitors, etc.
INPUT OUTPUT
Connecting pedals etc
Connecting separately sold
Connecting MIDI equipment
USB cable
computer
