BAC-10000 Series 3 Operation Guide, Rev. J
WED 11/19 3:20 PM
COOL:
OCC:
FAN:
HUM: 36% RH

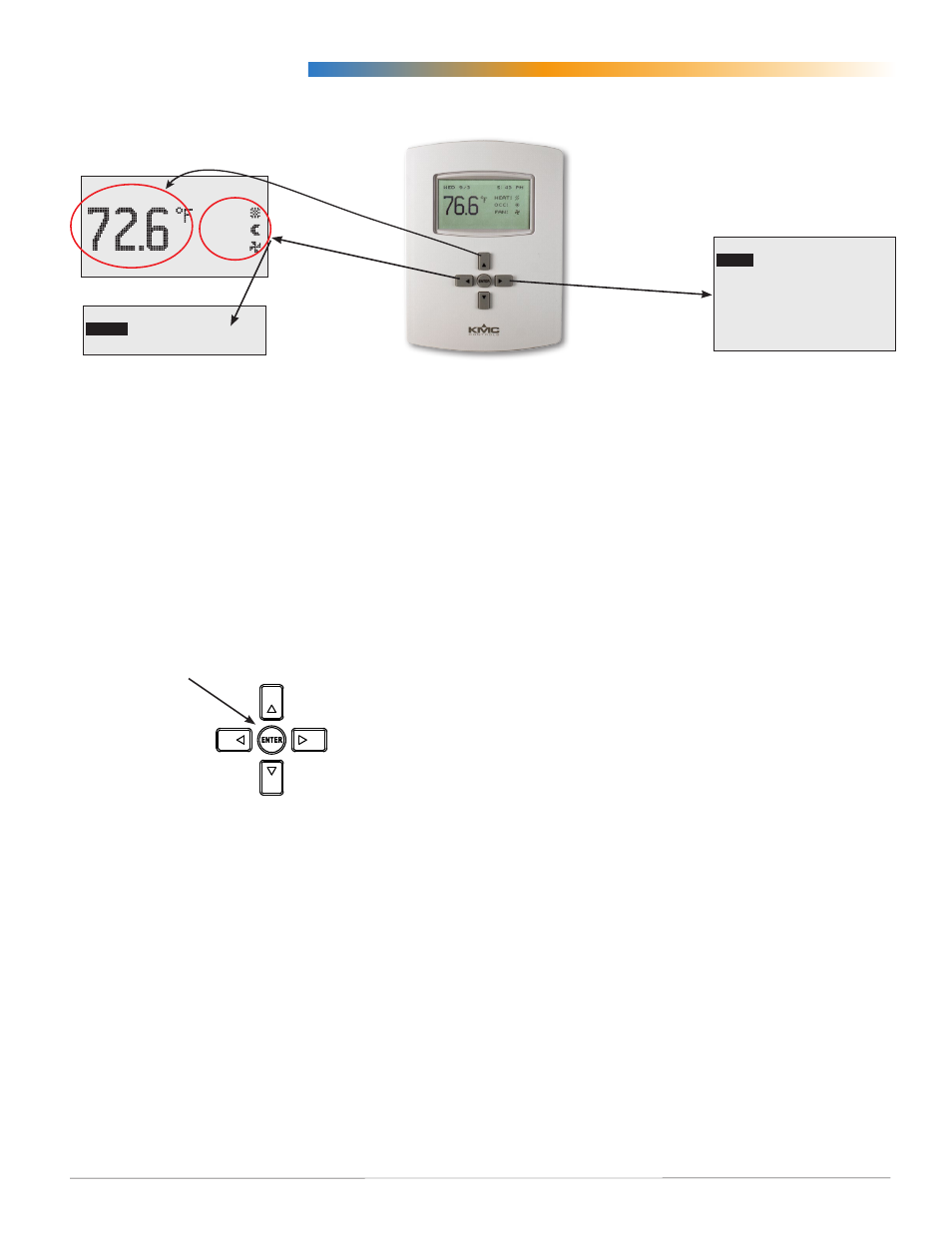

Operation (Basic)
Enter Button
Right/Menu
Button
Left/Override
Button
Down/Setpoint Button
Up/Setpoint Button
Home, Main Menu, and Override Screens
Menu Override
Setpoint
Home Screen
Configuration Screens
MAIN MENU
ABOUT
ADVANCED
ALARM
DATE/TIME
SCHEDULE
SETPOINTS
SYSTEM
Navigation
Navigate the menus and change settings by press-
ing a combination of various arrow buttons and the
Enter button. Push the:
• Enter button to select and/or exit value editing.
• Up or Down button to move among entries.
• Right or Left button to move among value fields.
• Left button to return to the Home screen.
Room Temp. Setpoint Adjustment
From the Home (temperature display) screen, press
the Up or Down arrow button once to view the exist-
ing setpoint.
To temporarily change the setpoint, press the Up
or Down arrow button repeatedly until the desired
setting is displayed and press Enter. (If Enter is not
pressed, the display will return to the Home screen
after about five seconds and the new setpoint value
will still be saved.) The new setpoint will hold until
the next schedule change.
To permanently change the setpoint for occupied
mode, go to the Setpoints section under the Main
Menu. (In the Setpoints menu, heating/cooling set-
points/setbacks and deadband can be changed with,
if required, the correct password access. See Set-
points on page 13 .)
H/C, Fan, Occupancy, and Override
When the fan is commanded to run, the animated
“FAN” icon rotates (if programmed to). When the
fan command stops, the fan icon is motionless.
The “OCC” icon shows a sun when in Occupied
mode and a quarter moon when in Unoccupied
mode.
HEAT or COOL will show (and be animated when
there is an active command), depending on the cur-
rent mode. This can also be turned OFF.
To override these modes from the Home (tempera-
ture display) screen, press the Left arrow button.
Press Up or Down to get to the desired line and then
Enter (twice) to edit the mode setting. Press Left to
exit to Home.
Main Menu and Settings
From the Home (temperature display) screen, press
the Right arrow button to enter the Main Menu. You
may need to enter a password to change any settings.
FAN MODES
UNOCC:
OCC: AUTO
AUTO
Override Screens
NOTE: Access to the Main Menu, setpoint adjust,
and System/Occupancy/Fan override may
require a password.
