Preparation section
9
VCR, MD/CD recorder, or analog turntable (NV-701 only)

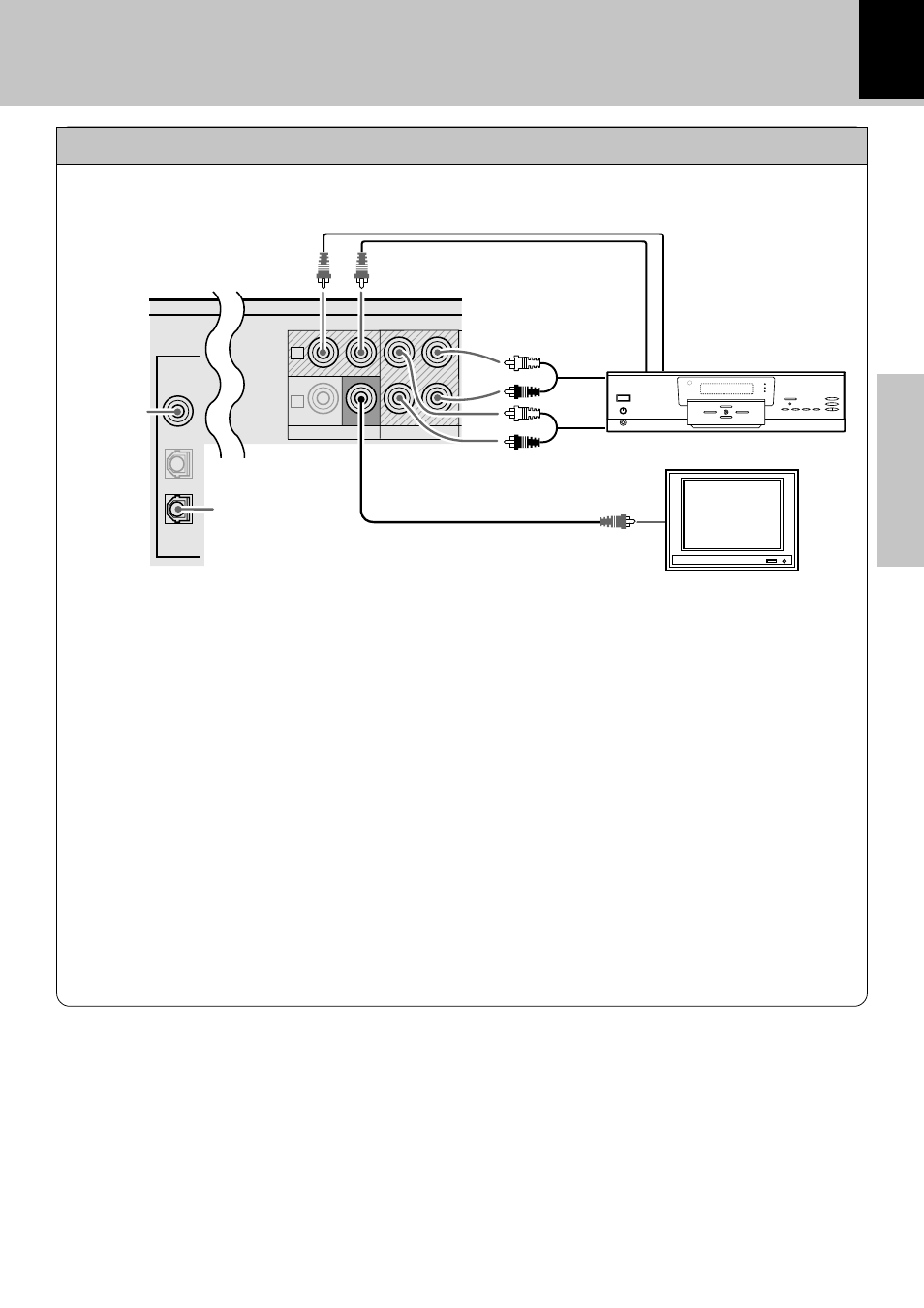

When making connections to a VCR:
÷ For complete video connection, use commercially available video cables to make connections from the video output
jack on the VCR to the VIDEO 1 PLAY IN jack, from the video input jack on the VCR to the VIDEO 1 output jack (located
above the MONITOR OUT jack), and from the VIDEO MONITOR OUT jack to a TV or monitor.
÷ Make audio connections from the audio output jacks on the VCR to the AUDIO – VIDEO 1 PLAY IN jacks and from the
audio input jacks on the VCR to the AUDIO – VIDEO 1 REC OUT jacks using commercially available audio cables.
÷ Be sure to match the colors of the plugs with the colors of the jacks for correct right (red) and left (white) channel
matching.
÷ For greatly improved sound, make connections to the DIGITAL VIDEO 1 COAX. IN jack using a commercially available
coaxial cable if the component you are making connections to features digital audio output from a coaxial jack.
When making connections to an MD or CD recorder:
÷ Make audio connections from the audio output jacks on the MD or CD recorder to the AUDIO – VIDEO 1 PLAY IN
jacks and from the audio input jacks on the MD or CD recorder to the AUDIO – VIDEO 1 REC OUT jacks using
commercially available audio cables.
÷ Do not make any connections to the VIDEO 1 PLAY IN and output jacks.
÷ If digital connections are made to the DIGITAL VIDEO 1 COAX. IN jack, it is also recommended to make connections
to the analog AUDIO – VIDEO 1 PLAY IN jacks.
÷ Make connections from the DIGITAL CD OPT. OUT jack to the corresponding input jack on the MD or CD recorder for
digital recording of CDs played on this unit.
The VIDEO 1 jacks can be used for connection of a VCR or similar component that features audio and video input
and output capability.
PLAY IN MONITOR
OUT PLAY IN REC OUT
VIDEO 1
COAX. IN
OPT. IN
VIDEO 2
DIGITAL
OPT. OUT
CD
AUDIO–VIDEO 1 VIDEO
1
2
VCR
TV
Video output Video input
To video input of TV
For VIDEO 1
digital audio
input
Audio output
Audio input
System connection
For digital audio
output of CDs
