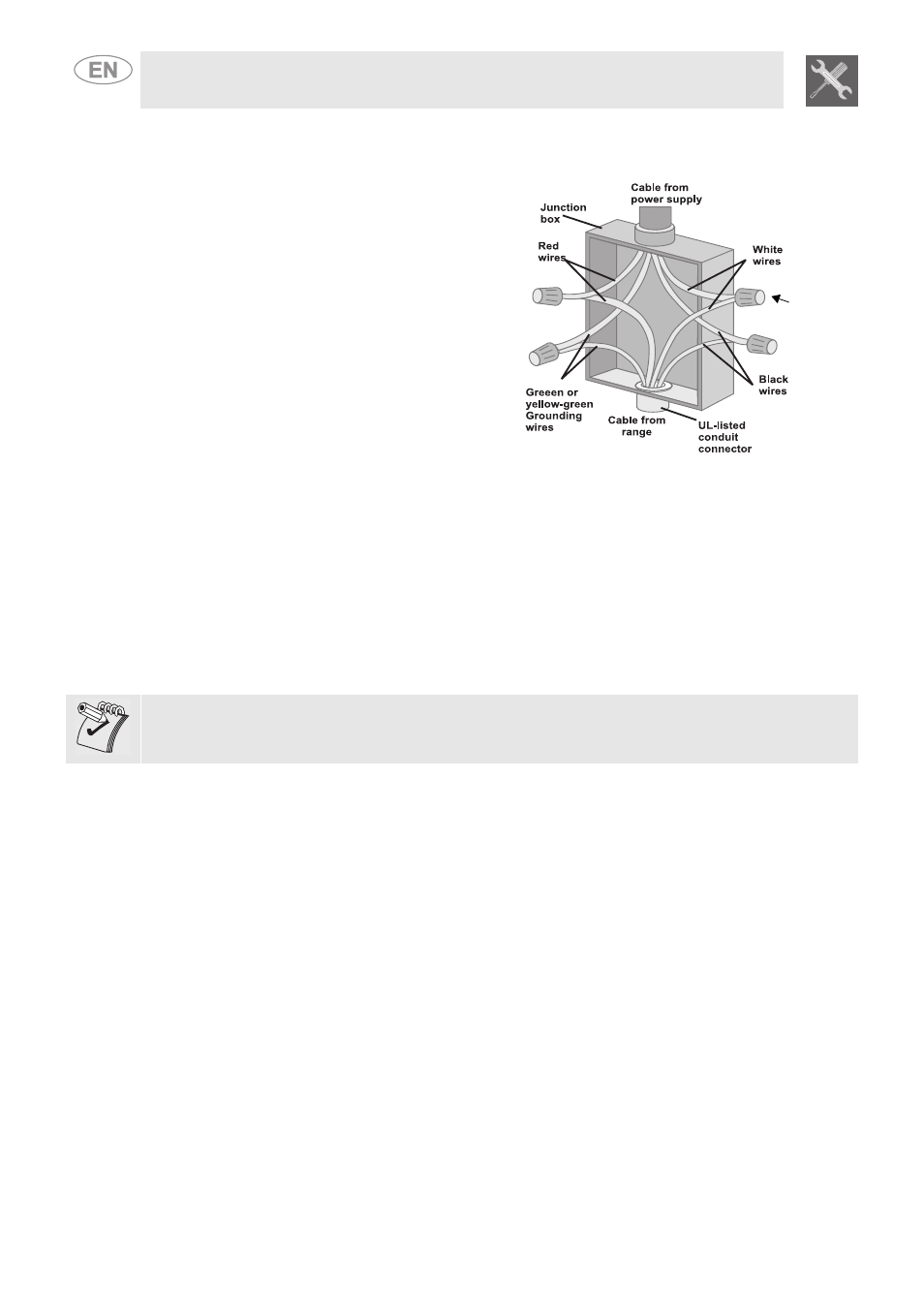

Instructions for the Installer

16

5.2 U.S. and Canada installation/ 4-wire branch circuit

Refer to

Figure 2,

- Separate the green or yellow-green wires from

the white wires that extend out of the end of the
appliance cable.

- The ground wire must be connected first;

- Connect the green or yellow-green ground wire

from the appliance to the ground wire in the
junction box (green colored wire) using UL/CSA
listed wire connectors. Do not connect the
grounding
wire to the neutral wire in the
junction box.

- Connect the red and black leads from the

appliance to the matching color wires in the
junction box using UL/CSA listed wire
connectors.

- Connect the white wire from the appliance to the

neutral white wire in the junction box using a UL/
CSA listed wire connector.

Fig.2)

Connect to a 20A fuse or circuit breaker. Connect to copper wire, or, if connection is made to aluminum
house wiring, use UL-listed or CSA-approved connectors approved for joining aluminum and copper
wiring.

NOTE: Both leads coming out of the range must be connected according to the diagrams shown in
Figures 1 and 2
