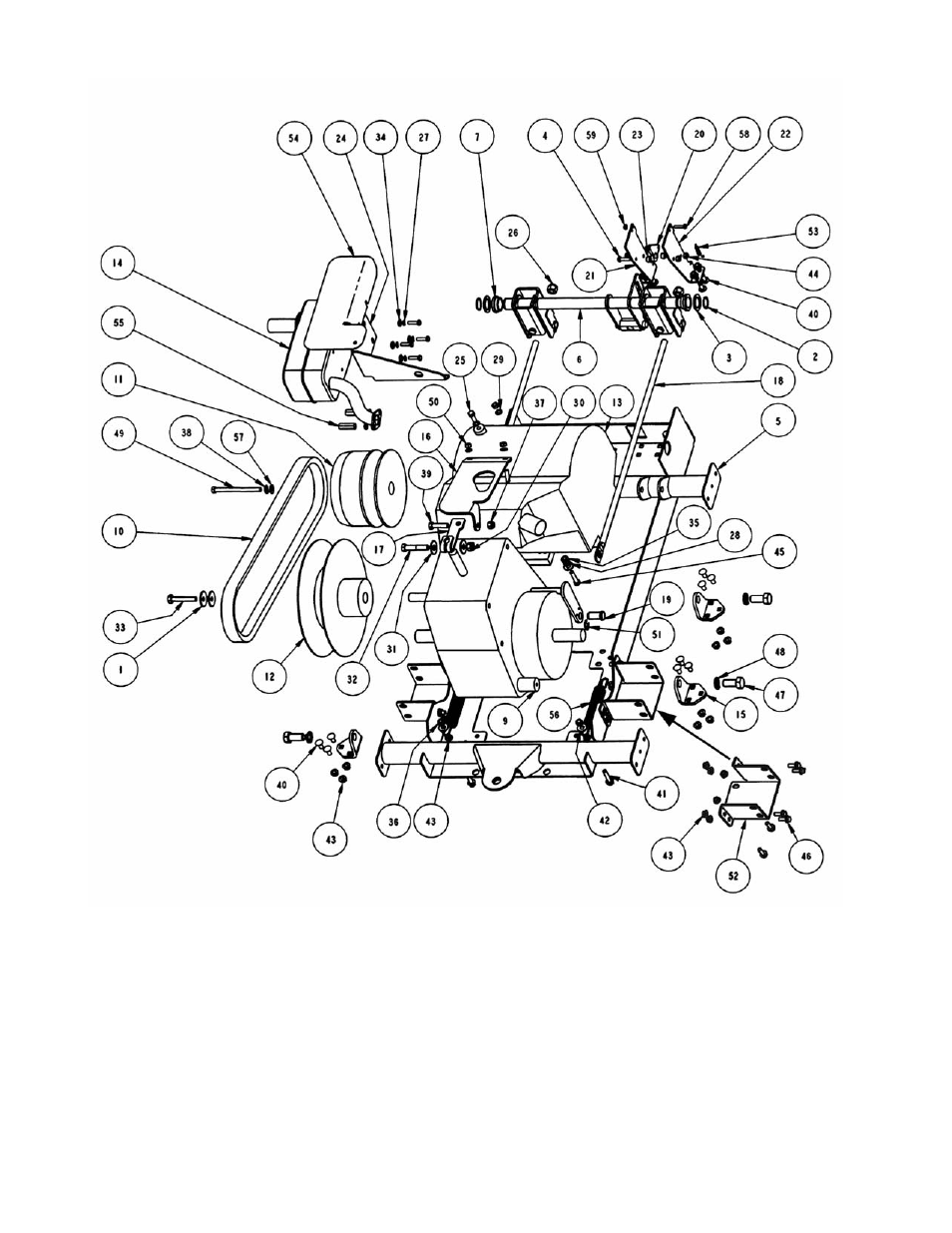

DRIVE BASE GROUP
MANUAL No. 06126
GROUNDS CRUISER UTILITY VEHICLE SERIES 0
ITEM NO.
QTY.
PART #
DESCRIPTION
1 2 12063
WASHER,
CONE
2
2
12709
EXTERNAL RETAINING RING 1 INCH
3 2 16561
BUSHING
4
6
27230
HHCS, 1/4-20 X 1.00 YZ
5
1
58841
WELDMENT, CVT DRIVE BASE
6
1
58751
BRAKE ASSEMBLY, UTILITY VEHICLE
7
2
72645
BEARING, 1 IN. ID
8
1
72726
CABLE, PARK BRAKE (NOT SHOWN)
9 1 72812
TRANSAXLE,
TTK35
10
1
72935
BELT, CVT, 58.122 E.L.
