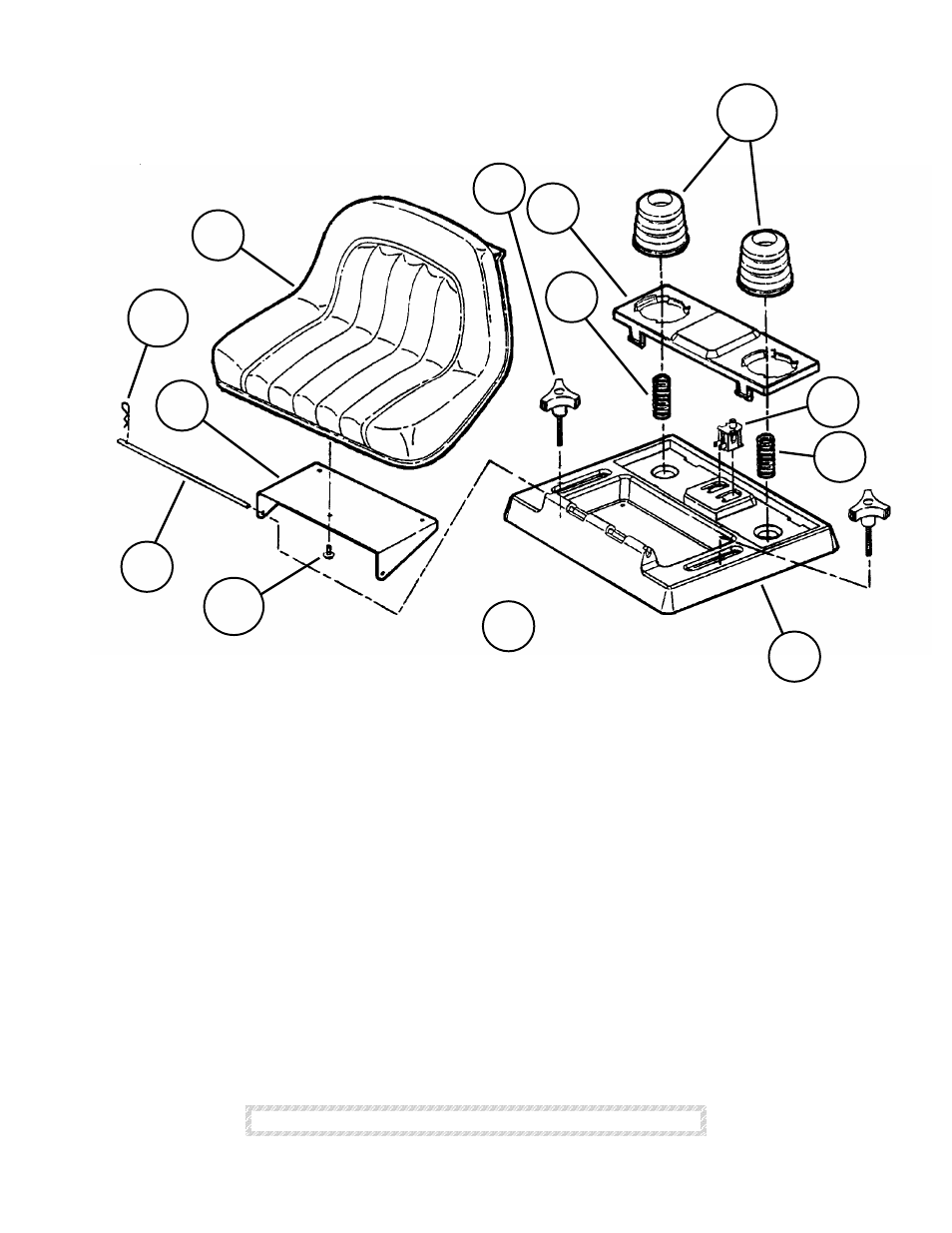

SEAT GROUP
Note: Item 2 (assembly) includes items 3 thru 6.
GROUNDS CRUISER UTILITY VEHICLE SERIES 0
MANUAL No. 06126
ITEM NO. QTY. PART # DESCRIPTION
1 2 44897 SEAT, MILSCO HIGH BACK
2 2 53761 ASSEMBLY, SEAT SUPPORT
3 2 23354 SWITCH, SEAT, NC (DRIVER SIDE ONLY)
4 2 28579 SUPPORT, SEAT
5 2 28580 HOLDER, SEAT CUSHION
6 4 73266 SPRING, CUSHION HOLDER
7 4 17875 KNOB, 3 PRONG 5/16-18 X 2" STUD
8 2 33318 SUPPORT, SEAT, UPPER
9 2 74452 ROD, SEAT HINGE
10 2 91503 PIN, HAIR, 3/13 X 1.5 YZ
11 6 91525 HFLB, 5/16-18X1/2 GR5
12 4 19109 CUSHION, SEAT
1
2
1 ASSEMBLY
3
4
5
6
6
7
8
9
10
10
11
