37

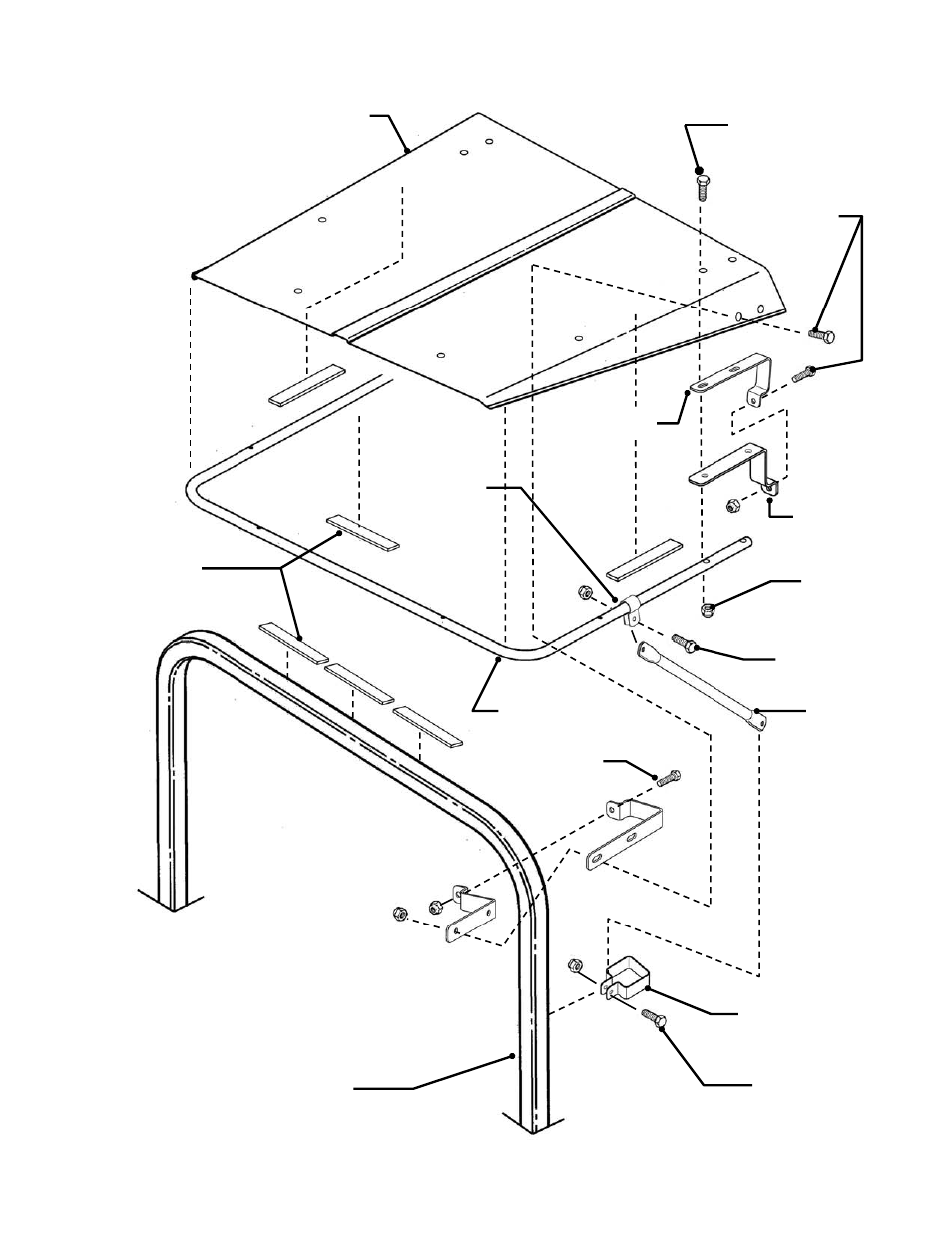

#7-3302

LOWER CLAMP (4)

NOTE: ROLL BAR IS NOT PART
OF THE SUNSHADE KIT.

#7-3168 SUN SHADE

#7-6978

HEX NUT (20)

(1/4-20)

#7-2365

BRACE (2)

#9-1059 CAP SCREW

(1/4-20 x 1”)

#7-3301

UPPER CLAMP

(4)

#7-3303

SIDE CLAMP (2)

#9-1059 CAP SCREW (12)

(1/4-20 x 1”)

#4-5297

RUBBER STRIP (6)

#9-0639 CAP SCREW (8)

(1/4-20 x 1-1/2”)

#9-1059 CAP SCREW

(1/4-20 x 1”)

#9-1059 CAP SCREW

(1/4-20 x 1”)

#7-3304

ROUND CLAMP (2)

#7-3169

FRAME TUBE

(KIT No. 6-3151) SUN SHADE KIT

ACCESSORY GROUP

GROUNDS CRUISER UTILITY VEHICLE SERIES 0

MANUAL No. 06126
