(KIT No. 6-3141) DUMP BED ELECTRIC LIFT
ACCESSORY GROUP
MANUAL No. 06126
GROUNDS CRUISER UTILITY VEHICLE SERIES 0
ITEM NO.
QTY.
PART #
DESCRIPTION
1 1 72641
LINEAR
ACTUATOR
2 2 91821
HHCS,
1/2-13
X
3
YZ
3 2 91922
HNYL,
1/2-13
YZ
REGULAR
4
1
35700
SWITCH, SELF CENTERING, DECK LIFT
5
1
72687
DECAL, BED LIFT (SEE PAGE 35)
3
2
3
2
1
FRONT
DUMP BED
BOTTOM
(SEE PAGE 24)

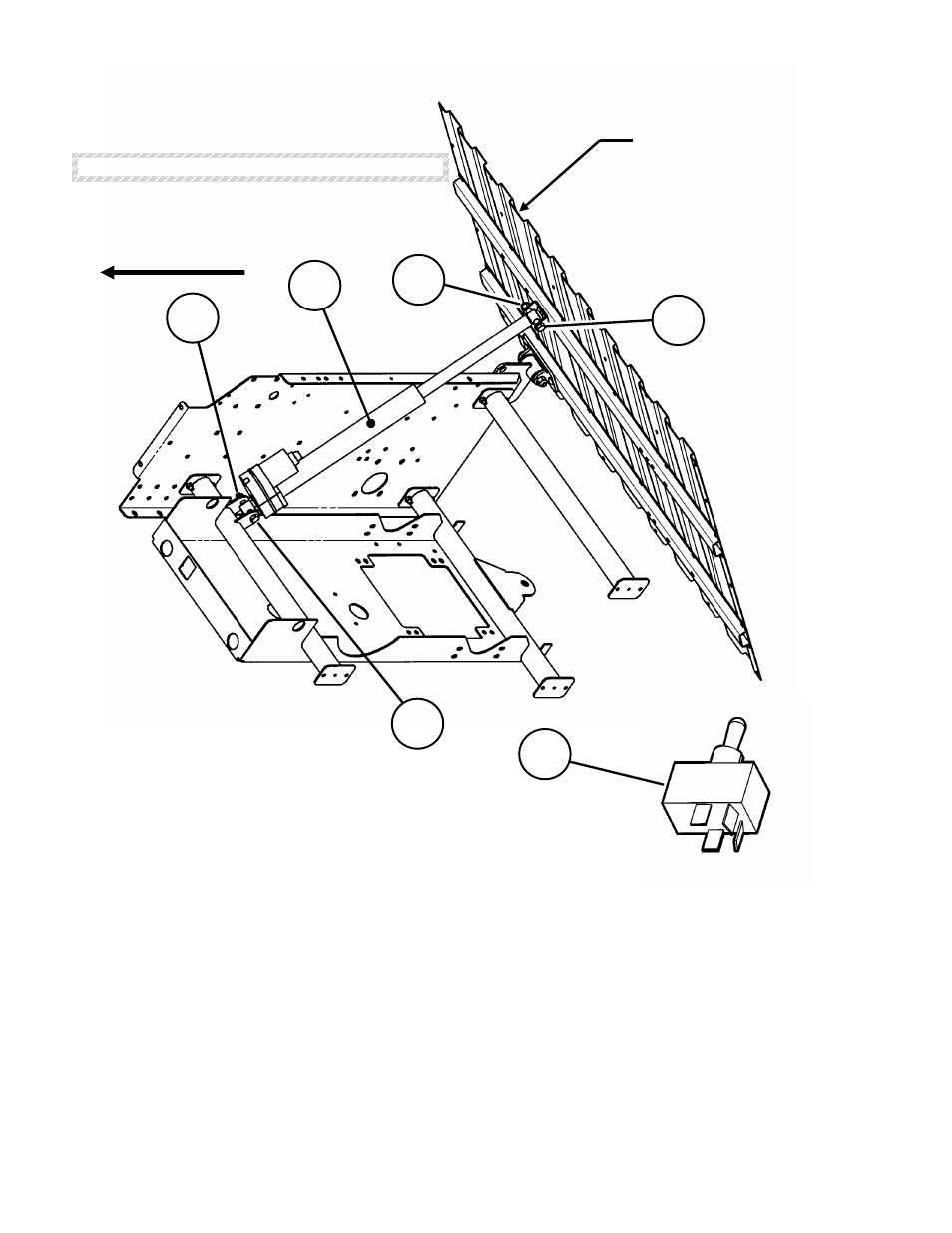

NOTE: ACTUATOR IS SHOWN IN EXTENDED POSITION.
4
