STEERING GROUP
MANUAL No. 06126

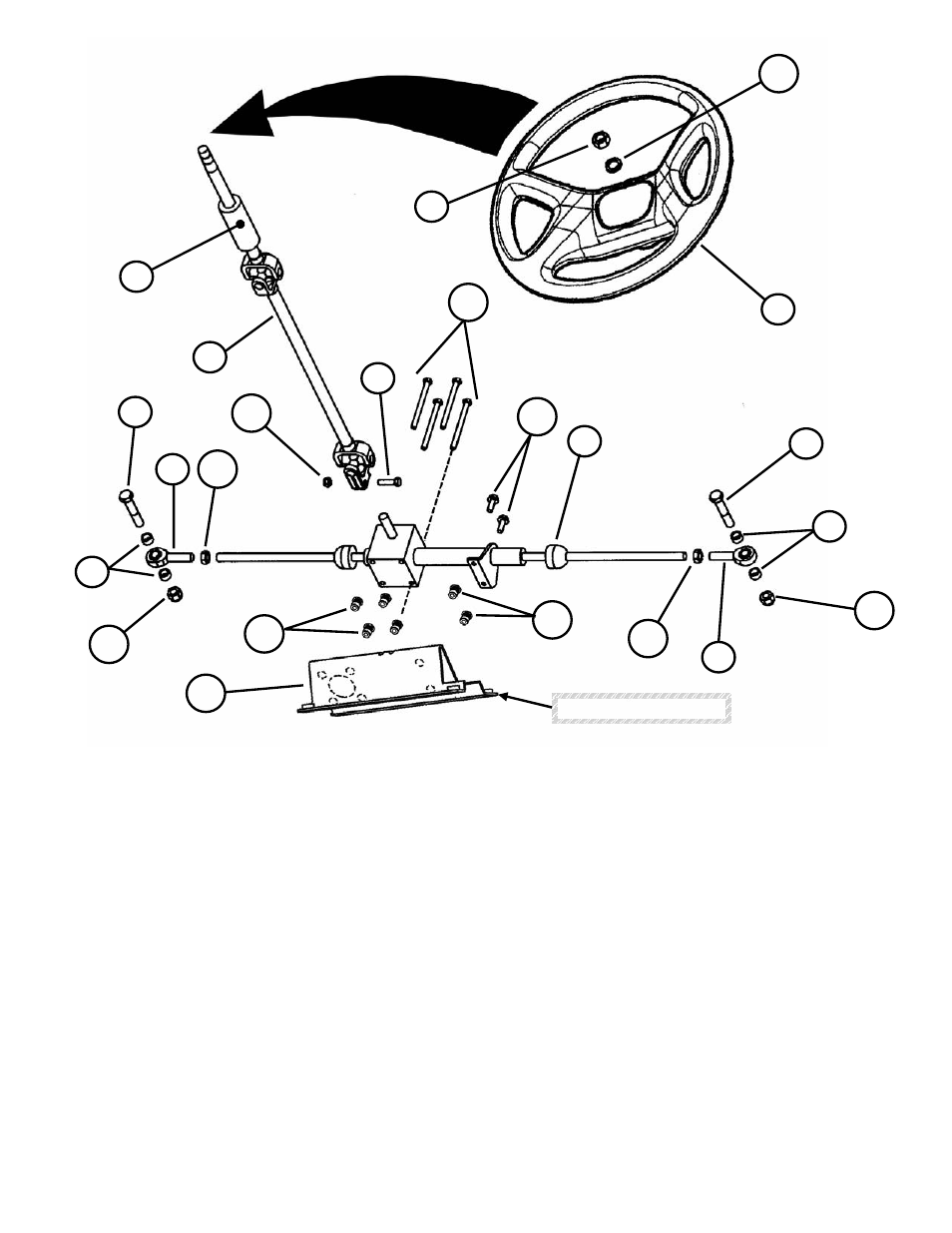

GROUNDS CRUISER UTILITY VEHICLE SERIES 0
ITEM NO.
QTY.
PART #
DESCRIPTION
1 1 72484
RACK
&
PINION
STEERING
2 2 36465
BALL
JOINT
1/2-20
3
4
72637
SPACER, 1/2 ID, 5/8 OD X .375 YZ
4 1 72582
STEERING
COLUMN
5 1 72997
STEERING
WHEEL-
SPLINED
6 1 72638
COVER,
STEERING
SHAFT
7
1
91527
HHCS, 5/16-18 X 1.25 GR 5 YZ
8 2 90544
HHCS,
1/2-13X2-3/4
GR5
9 1 92036
HN,
M16
YZ
10 1 92042
SLW,
16MM
11
2
91905
HFLB, 5/16-18 X 7/8 YZ
12
1
91298
HLN, 5/16-18-3B YZ ESNA
13 4 91058
HHCS,
5/16CX3-3/4
14 2 90559
HJN,
1/2-20
15 2 91922
HNYL,
1/2-13
YZ
16
1
58739
WELDMENT, STEERING BRACKET
17
6
91761
RIV-NUT, 5/16-18 ROUND
1
4
3
2
5
7
6
8
9
2
3
8
10
17
16
15
14
13
12
11
14
15
17
See page 12, item 8
