Snapper GC9520KW User Manual
Page 38
38
#9-1603
HEX NUT (27)
#9-0055
WASHER (17)
#7-3906
WINDSHIELD
#9-0986
HEX BOLT
1/4-20 X 1” (20)
#9-1603
HEX NUT
#9-0596
HEX BOLT
1/4-20 X 5/8” (11)
#9-1603
HEX NUT
#9-0055
WASHER
#7-3910
LEFT HAND
WINDSHIELD
FRAME
#7-3907
LEFT HAND
WINDSHIELD
MOUNT
#9-0596
HEX BOLT
1/4-20 X 5/8”
#9-0986
HEX BOLT
1/4-20 X 1”
#9-0596
HEX BOLT
1/4-20 X 5/8”
#7-3960
WIND GUARD
#9-0986
HEX BOLT
1/4-20 X 1”
#7-3911
RIGHT HAND
WINDSHIELD
MOUNT
#9-0055
WASHER
#9-1603
HEX NUT
#9-0986
HEX BOLT
1/4-20 X 1”
#7-3908
RIGHT HAND
WINDSHIELD
MOUNT
#7-3909
LOWER
WINDSHIELD
FRAME
#9-1584
HEX FLANGE
NUT (4)
#9-1603
HEX NUT

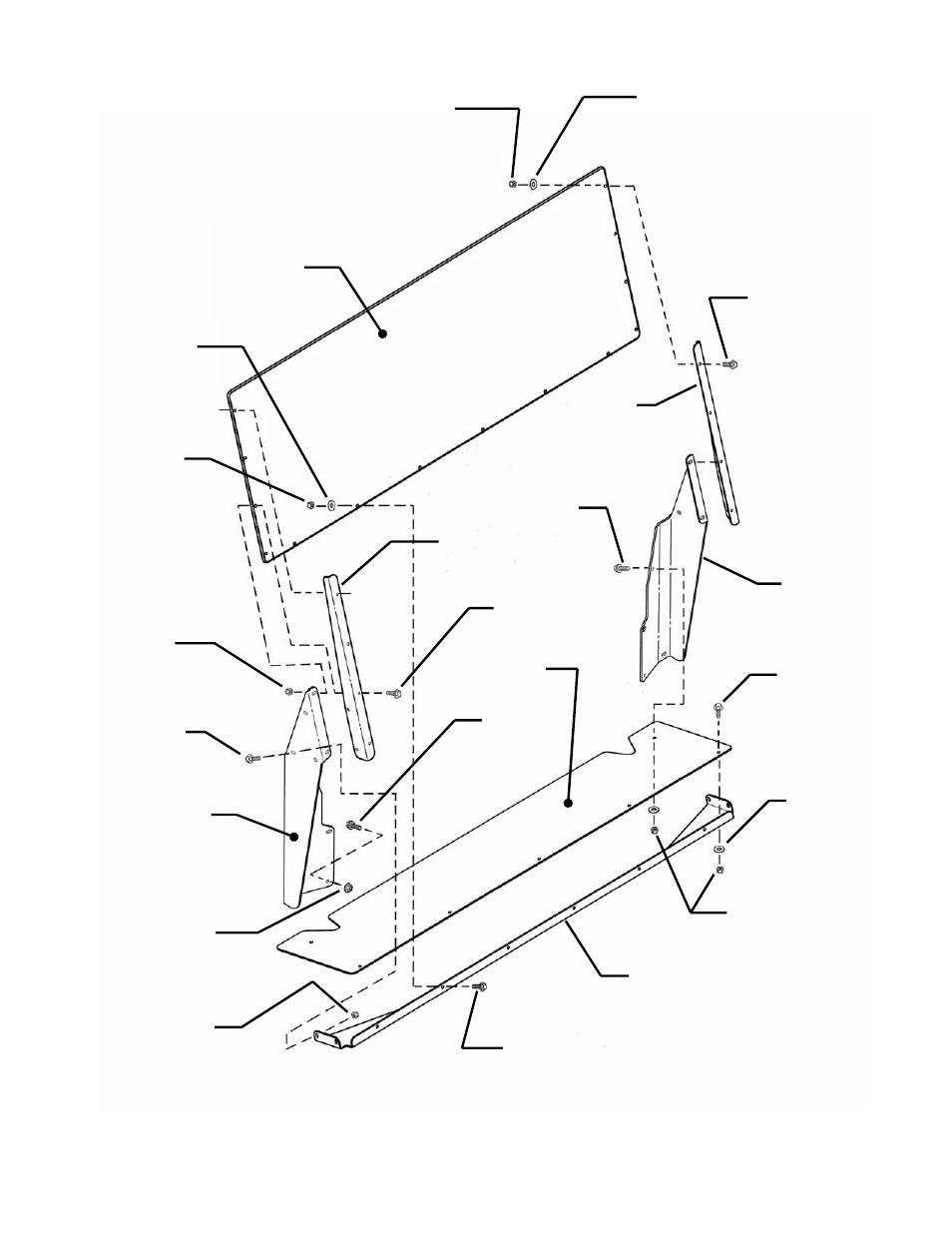

(KIT No. 6-3178) WINDSHIELD KIT
ACCESSORY GROUP
MANUAL No. 06126
GROUNDS CRUISER UTILITY VEHICLE SERIES 0
