Electrical group – Snapper GC9520KW User Manual
Page 29
29
ITEM NO.
QTY.
PART #
DESCRIPTION
1 1 72684
SWITCH,
IGNITION
2
1
72936
WIRING HARNESS, CVT (see page 28)
3 1 35659
SWITCH,
LIGHTS
4 1 45281
HOURMETER,
HOBBS
SNAP-IN
5 1 19547
AMMETER
AND
CLAMP
ASM
6
1
22886
SWITCH, DP NO/NC SNAP-IN
7
1
35610
BATTERY, 11 PLATE 375CCA
8 2 18829
HEAD
LIGHT
9 2 35550
HEADLIGHT,
BEZEL
10 1 35660
BEZEL,
HEADLIGHT
11
1
35607
CABLE, POSITIVE BATTERY (47" long)
12
1
73962
CABLE, NEGATIVE BATTERY (23" long)
13 2 91286
HWST,
10-24X.50
SEMS
14
13
24649
WIRE TIE,11 INCH STD BLK NYLON
15
1
73331
KEY SET (2), IGNITION (not shown)
16
1
23354
SWITCH, SEAT, NC (see page 21)

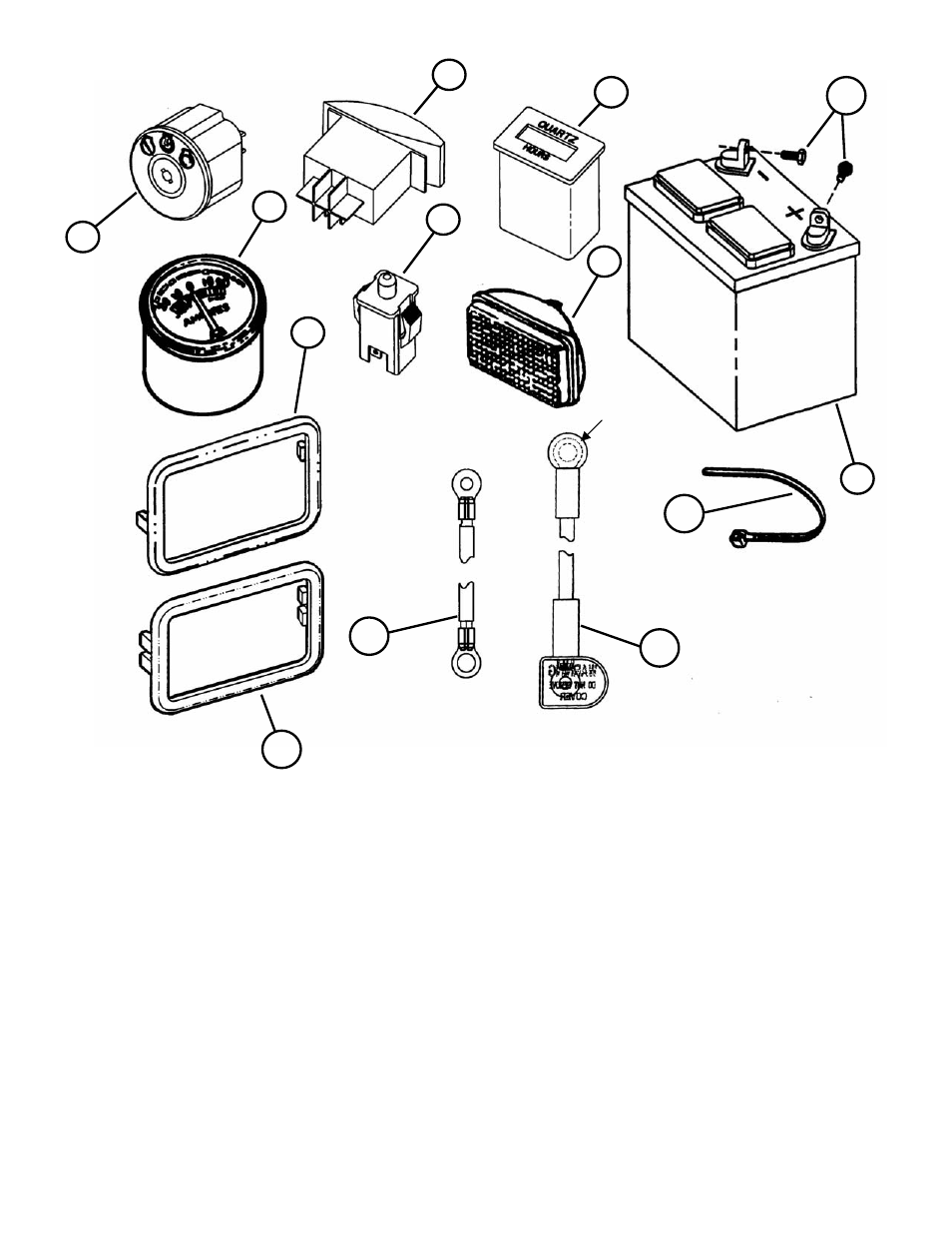

ELECTRICAL GROUP
GROUNDS CRUISER UTILITY VEHICLE SERIES 0
MANUAL No. 06126
1
3
4
7
6
5
9
8
10
12
11
14
13
TO NEGATIVE
BATTERY
TERMINAL
TO POSITIVE
BATTERY
TERMINAL
TO STARTER
SOLENOID
TO GROUND
