Getting Started silex Page 7
Part Number 40183-101
Installing the SX-550 WLAN Module
To install the SX-550 WLAN module in the SX-550 Evaluation Daughtercard:
1. Using the 40-pin OEM header, plug the SX-550 WLAN Module in the SX-550 Evaluation
Daughtercard and secure with screws, nuts and spacers.

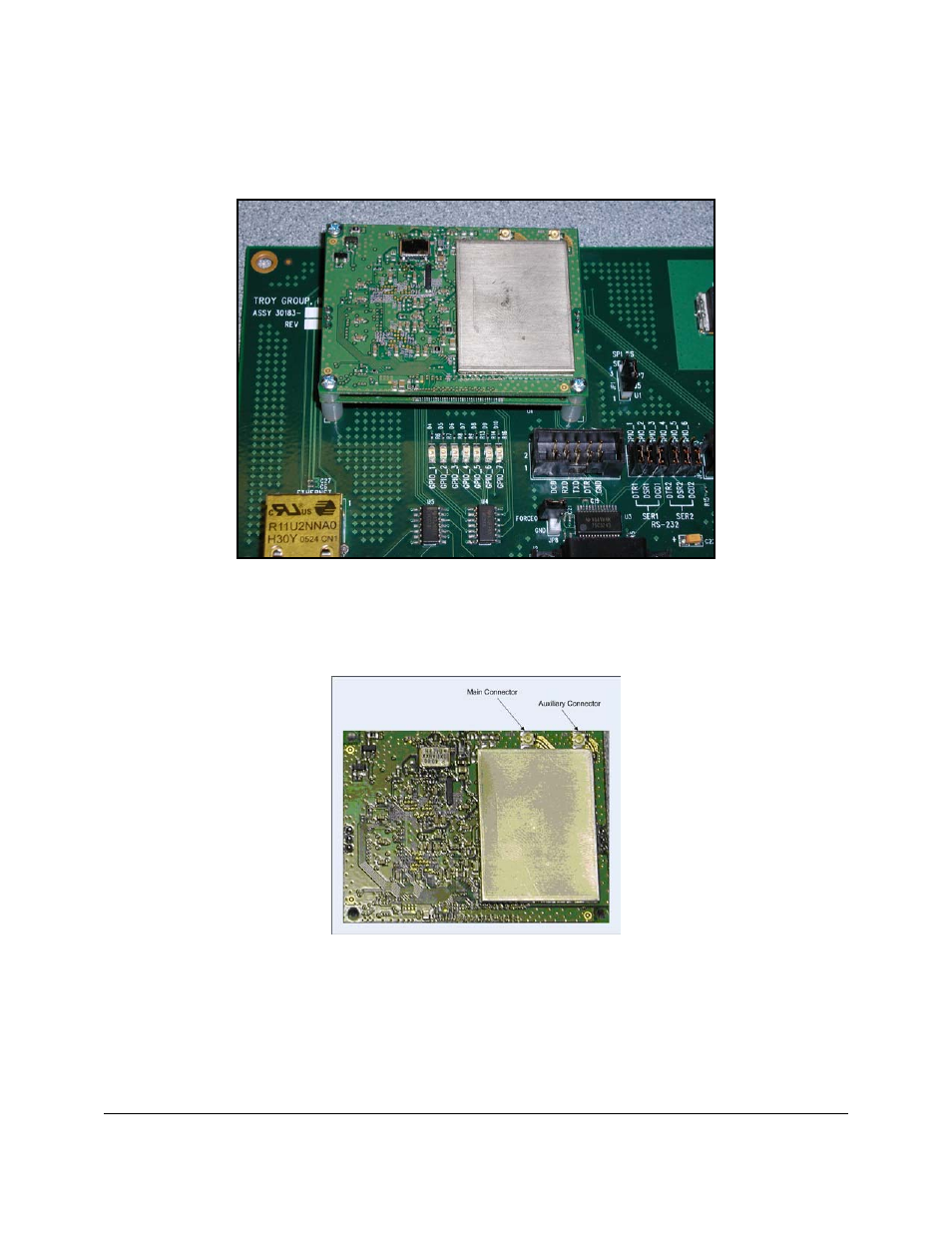

Figure 3 WLAN Module Inserted in Daughtercard
2. Plug the main antenna cable into the right top corner Main Antenna Connector on the card. If needed,
plug the auxiliary antenna cable into the Auxiliary Antenna Connector.
Figure 4 Antenna Connectors
