the gear motor of the instant product activates
the screw, dispensing the desired amount of
product into the mixer.
once the pre-set amount of water and product
is dispensed, the mixer is disconnected.
ESPRESSO COFFEE BREWING
This process takes place only after the
dispensing of cup, sugar and stirrer.
the grinder (ref.1 fig.6) is activated until the
quantity of coffee set on the dosing unit (ref.2
fig.6) is reached
the activation of the dosing unit solenoid (ref.
3 fig. 6) causes the door to open and, as a
consequence, the coffee is dispensed into the
cup.
the unit rotation gear motor activates, thus
moving the unit to the brewing position. The
coffee tablet is pressed simultaneously.
the pump brewing the set quantity of water
activates, under the control of an appropriate
electronic device (volumetric meter) (ref. 3
fig. 5).
the brew group gear motor is restarted, and
goes back to the rest position. During this
movement the coffee tablet is ejected.
The grinder and dosing unit activation sequence
can take place in reverse order, according to the
program selected (see programming menu).

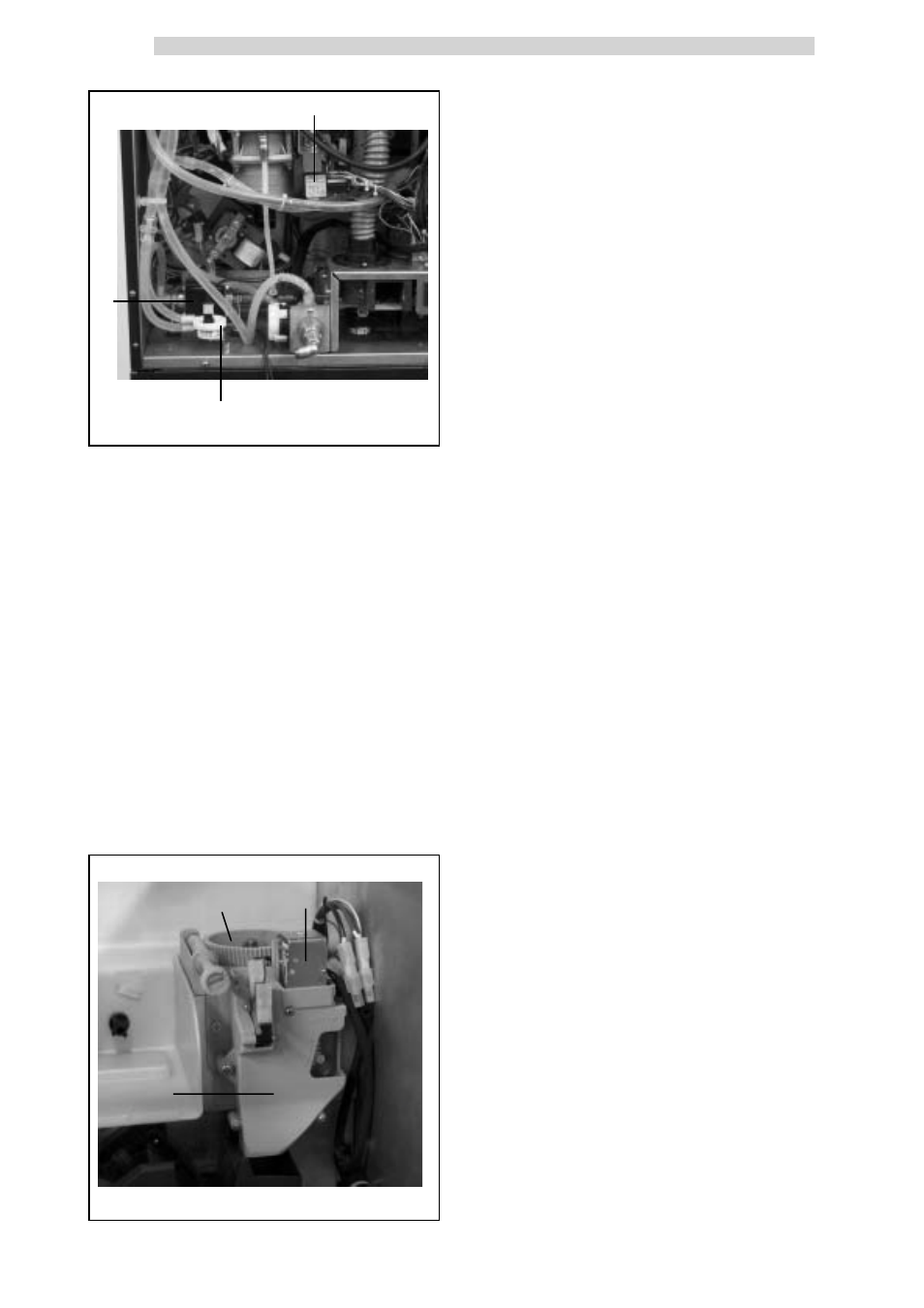

fig. 5
fig. 6
1
3
2
