Installation and Maintenance
5.2 Installation on a DIN Rail

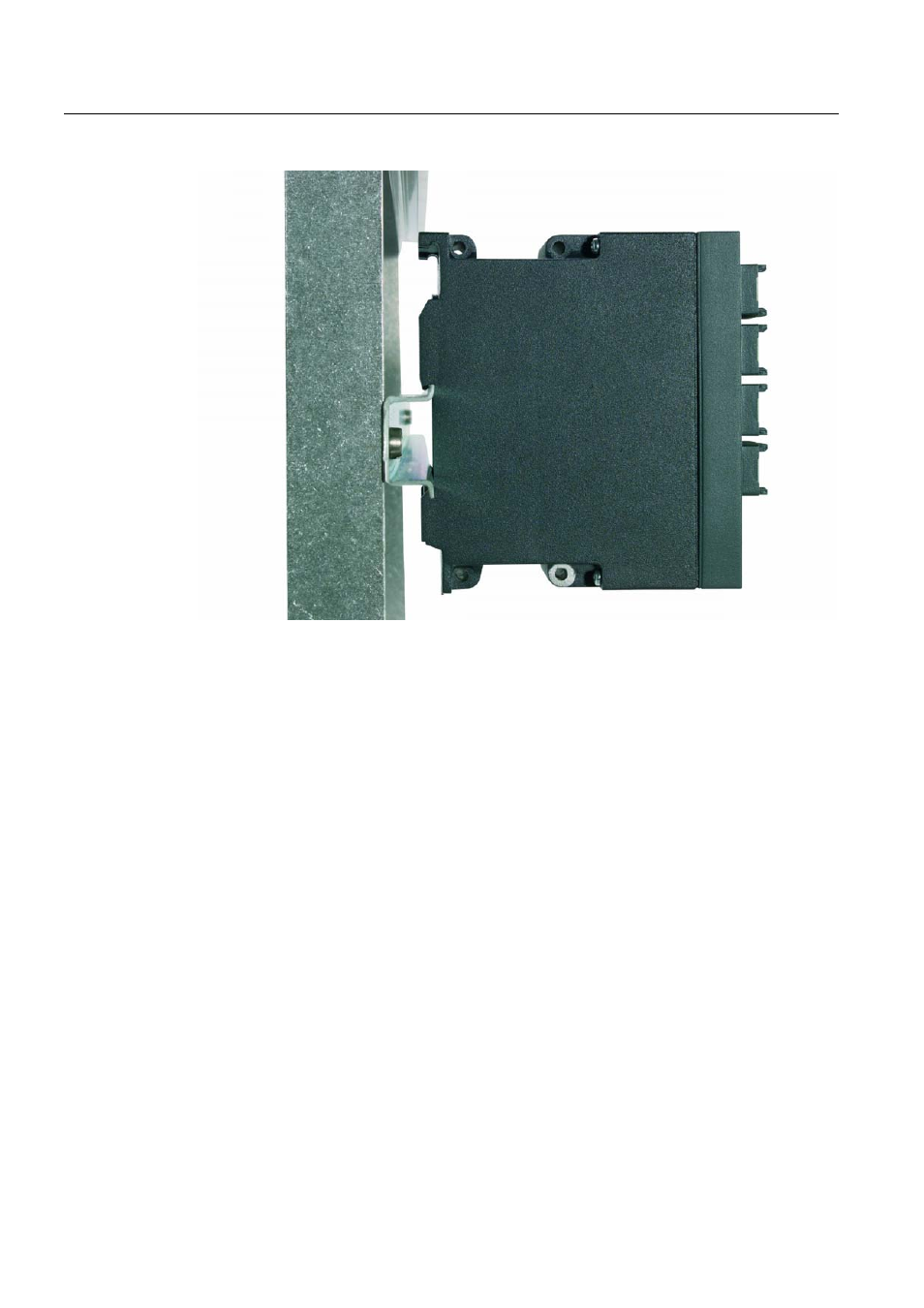

Figure 5-1 Installation of a SCALANCE X-100 and/or X-200 on a 35 mm Standard Rail
Uninstalling
To remove the Industrial Ethernet switches of the SCALANCE X-100 and X-200 product
lines from the standard rail:
1. First disconnect the TP cables and pull out the terminal blocks for the power supply and
the signaling contact.
2. Use a screwdriver to release the lower rail catch of the device and pull the lower part of
the device away from the rail.
