OTHER DEVICES AND CONNECTIONS
CONNECTING TO A TV
By connecting the camera to a TV, you can play back the recorded files on the
TV.
CAUTION
Insert and pull out the cable carefully
i When connecting the cables, make sure that the cable plugs are correctly
oriented and that they match the shapes of the terminal sockets on the
devices. Push the plugs in straight when connecting them. If undue force is
used to connect a cable, it may permanently damage the connector pins in
the terminal socket.
i Do not use excessive force when connecting and disconnecting cables.

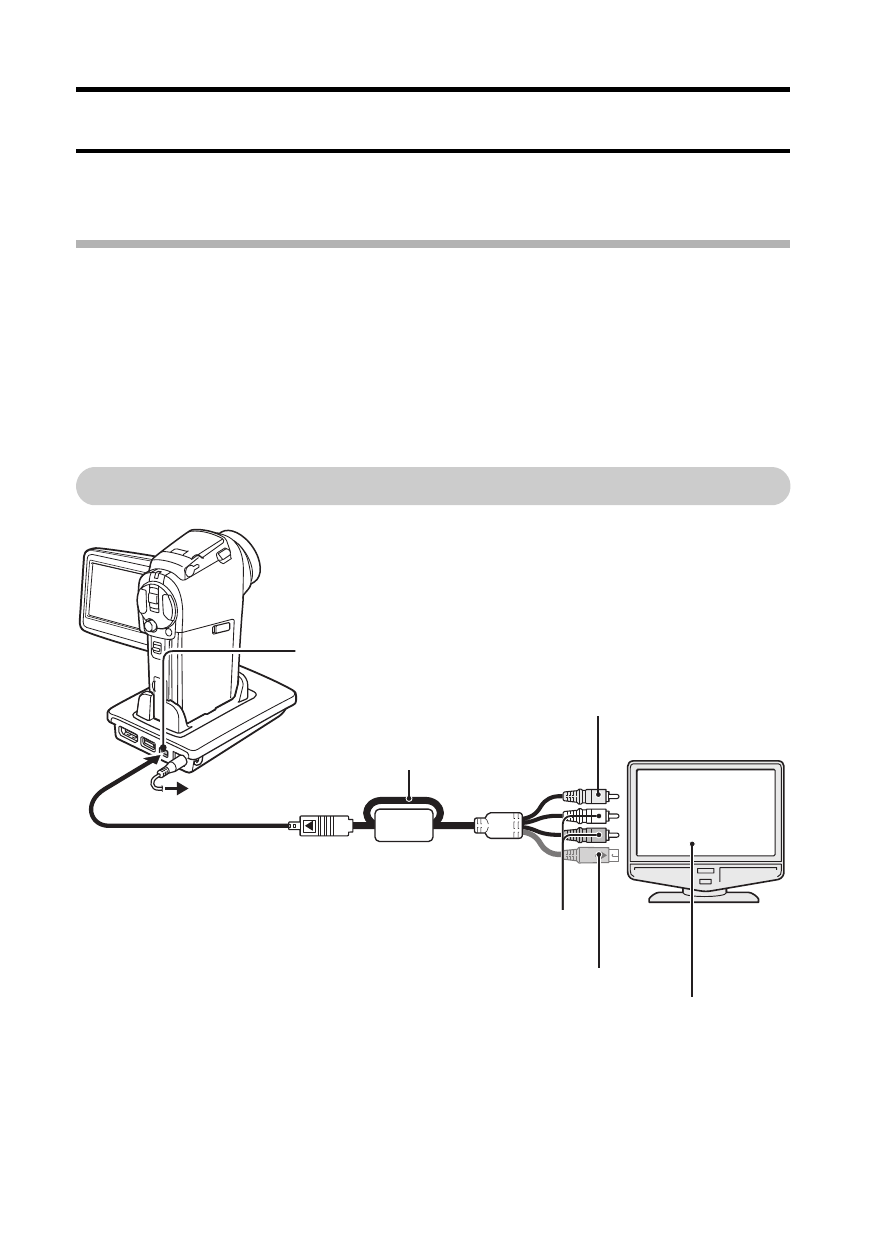

Connecting to a standard video input terminal
* When connected, the images are not produced normally on the TV
monitor.
To AC adaptor
Yellow plug:
To Video Input terminal
Supplied dedicated
S-AV interface cable
i Insert the plug with the
[n] mark facing up.
USB/AV terminal
White plug:To Audio Input (L) terminal
Red plug: To Audio Input (R) terminal
Not connected*
Set the input to “VIDEO”.
