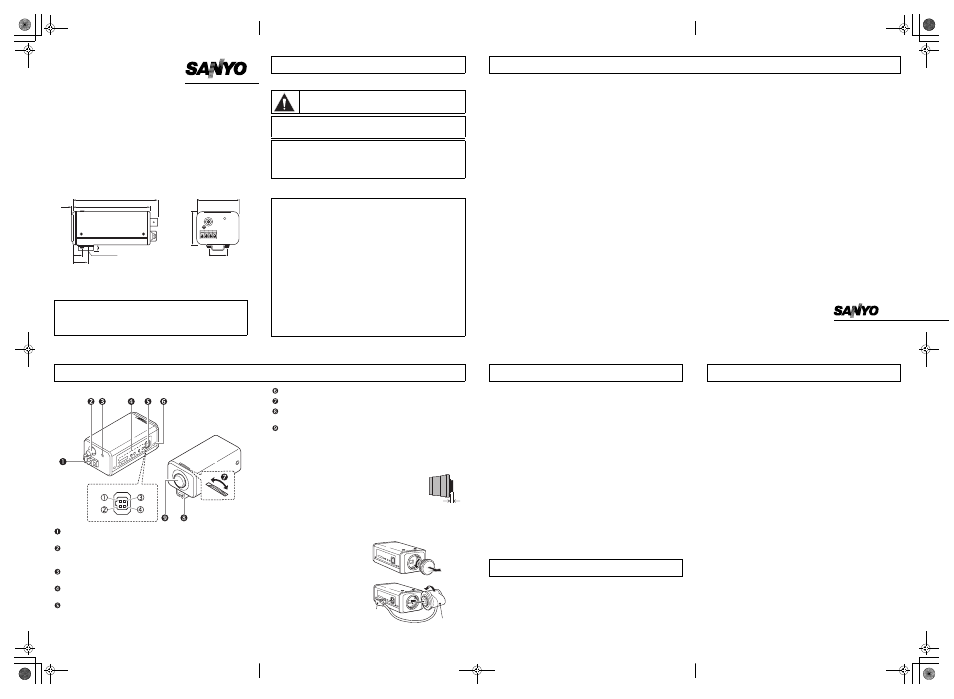

background image

INSTRUCTION MANUAL

VCC-6584

(Warranty attached)

COLOR CCD camera

About this manual

Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.

Dimensions: mm

Safety Guard

This installation should be made by a qualified service person and should
conform to all local codes.

Depending on the conditions of use, installation and
environment, please be sure to make the appropriate settings
and adjustments. If you need help with installation and/or
settings, please consult your dealer.

28

56

45

1/4”–20 UNC

1.3

108

99

11

25.8

16

INFORMATION TO USER

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THIS UNIT.

WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Pour la clientèle canadienne
Cet appareil numerique de la Classe B est conforme a la norme NMB-003
du Canada.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.
Changes or modifications not expressly approved by Sanyo may void the user's

authority to operate this camera.

J

In case of problem

Do not use the unit if smoke or a strange odor comes from the unit,
or if it seems not to function correctly. Turn off the power
immediately, and consult your dealer or an Authorized Sanyo
Service Center.

J

Do not open or modify

Do not open the cabinet, as it may be dangerous and cause
damage to the unit. For repairs, consult your dealer or an
Authorized Sanyo Service Center.

J

Do not put objects inside the unit

Make sure that no metal objects or flammable substance get inside
the unit. If used with a foreign object inside, it could cause a fire, a
short-circuit or damage. Be careful to protect the unit from rain, sea
water, etc. If water or liquid gets inside the unit, disconnect the
power cord immediately, and consult your dealer or an Authorized
Sanyo Service Center.

J

Be careful when handling the unit

To prevent damage, do not drop the unit or subject it to strong
shock or vibration.

J

Install away from electric or magnetic fields

If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, or audio speakers, the magnetic field they generate
may cause image distortion.

J

Protect from humidity and dust

To prevent damage, do not install the unit where there is greasy
smoke or steam, where the humidity may get too high, or where
there is a lot of dust.

J

Protect from high temperatures

Do not install close to stoves, or other heat sources, such as
spotlights, etc., or where it could be subject to direct sunlight, as this
could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may rise to high levels.

J

Cleaning

Dirt can be removed from the cabinet by wiping it with a soft cloth.
To remove stains, wipe with a soft cloth moistened with a soft
detergent solution and wrung dry, then dry by wiping with a soft
cloth.

Do not use benzine, thinner or other chemical products on the
cabinet, as this may cause deformation and paint peeling. Before
using a chemical cloth, make sure to read all accompanying
instructions. Make sure that no plastic or rubber material comes
into contact with the cabinet for a long period of time, as this may
cause damage or paint peeling.

Printed on recycled paper

1AC6P1P2784--
L5AX4/US (0504TR-SY)

PRECAUTIONS

SANYO Electric Co., Ltd.

Printed in Japan

GND, AC24V, DC12V (ground terminal, AC 24 V or DC 12 V input
terminal)

VIDEO OUT (video output terminal: BNC connector)

Connects to the video input terminal on the monitor, digital video recorder
or time-lapse VCR.

POWER (power indicator)

Lights when the camera power is on.

Camera adjustment/setting section

See “CAMERA ADJUSTMENTS/SETTINGS”.

LENS (lens iris output terminal)

Used to connect the lens plug when the auto-iris lens is attached.

c

Brake coil (-)

d

Brake coil (+)

e

Drive coil (+)

f

Drive coil (-)

LOCK (flange-back lock screw)

Flange-back adjustment dial

Camera attachment bracket

Used to attach the camera.

Lens mount cap

Protects internal parts of the camera, such as the CCD, from damage.

Q

Attaching the lens

Use a DC type auto-iris lens (sold separately).

NOTE:

Do not use a lens if length “L” is more than 5 mm.
Otherwise, it may damage the camera and prevent
proper installation.

Depending on the type of lens, the shape of the lens plug
may differ. In this case, consult your dealer or an
Authorized Sanyo Service Center.

When attaching a C mount lens, attach the lens to the
camera after inserting the C mount ring (sold
separately).

1

Remove the lens mount
cap from the camera.

2

Install the auto-iris lens.

3

Connect the lens plug to
the LENS terminal on
the side of the camera.

NAMES AND FUNCTIONS OF PARTS

L

1

2

3

CS mount type lens

Before sending the camera out for repair, check the items below.
If the problem persists after checking these items, consult your
dealer or an Authorized Sanyo Service Center.

J

If no image appears

Is the coaxial cable attached securely?

Are the power and voltage normal?

Has the iris of the lens been adjusted correctly (with the LEVEL
dial)?

Is there adequate illumination?

J

If the image is unclear

Is the monitor adjusted correctly?

Is the flange-back position correctly set?

Is the lens in focus?

Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the image.
Gently wipe any dirt or fingerprints off the lens with a soft cloth or
lens cleaning paper and cleaning fluid (commercially available).

The camera is a precision instrument. Handle it carefully and
always follow the safety precautions. If the camera requires service,
never try to repair it yourself or open the casing.
For servicing, maintenance, or repairs, consult your dealer or an
Authorized Sanyo Service Center.

Appearance and specifications are subject to change without prior notice or
obligations.

TROUBLESHOOTING

SERVICE

SPECIFICATIONS

Scanning system

: NTSC standard TV system

(525 TV lines, 30 frames/s)

Interlace

: PLL 2:1 interlace

Image device

: 1/3 inch solid state image device CCD

Number of pixels
in image area

: 768 (H) x 494 (V)

Sync system

: Internal sync/Line lock (only when using an AC 24 V

adapter)

Resolution

: 520 TV lines horizontally, 350 TV lines vertically

Video output level

: 1.0 V(p-p)/75

Ω, composite

Image S/N ratio

: More than 48 dB (More than 50 dB for AGC OFF)

Minimum required

illumination

(incandescent lighting)

: GAIN HI: Approx. 0.5 lx (F 1.2 lens)

GAIN NORM: Approx. 1.0 lx (F 1.2 lens)

Backlight
compensation

: OFF/Multi-spot metering (2 modes)/Center-

weighted metering

Iris function

: Auto-iris/Electronic-iris

Lens iris output
terminal

: 4-pin

Flange-back

: 12.5 mm ±0.5 mm

White balance

: Auto/Manual

Gain control

: Normal/High

Lens mount

: CS mount

Operating
environment

: Temperature: -10°C – +50°C (14°F – 122°F)

Humidity: less than 90%RH (no condensation)

Power supply

: AC 24 V ±10%, 60 Hz/DC 12 – 15 V ±10%

Power consumption

: 3.6 W (with auto-iris lens)

Weight

: Approx. 280 g (without lens)
