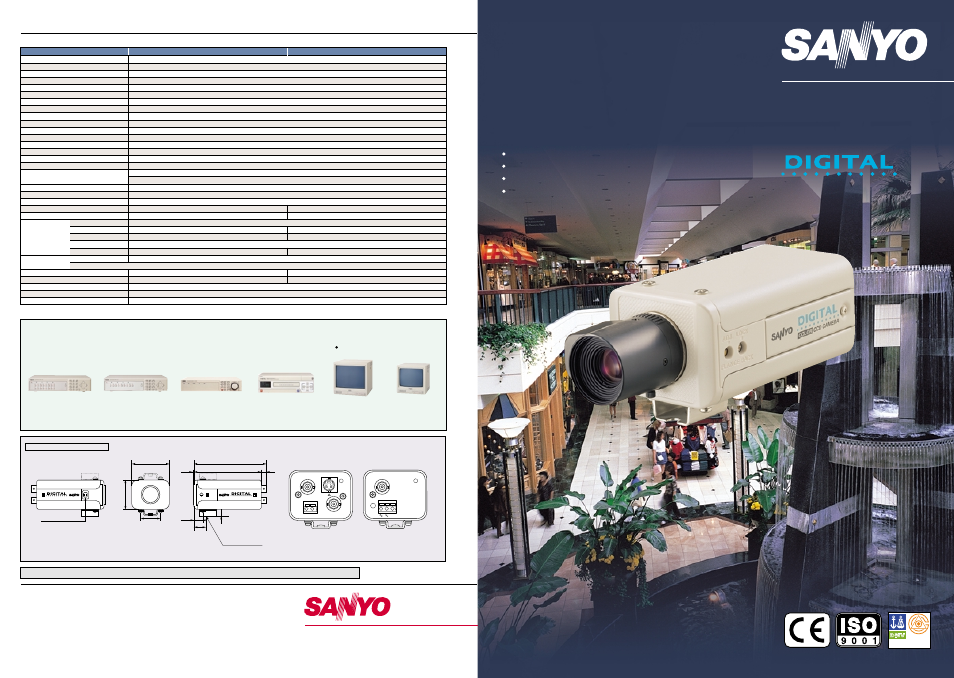

Vcc-6592p, Vcc-6594p, Minimum illumination of

Accredited
by the RvA
ISO 9001 REGISTERED FIRM
DNA Certification B. V., THE NETHERLANDS
VCC-6592P
(PAL)
VCC-6594P
(PAL)
High Sensitivity/Resolution
1/3"-CCD DSP Colour Camera
High performance at light levels as low as 0.3 lux
Super high-resolution of 520 horizontal TV lines
Sharper colour images with digital signal processing
Intelligent backlight compensation
Minimum Illumination of
0.3
Lux
Horizontal Resolution of
Horizontal Resolution of
520
TV Lines
Minimum Illumination of
0.3
Lux
Horizontal Resolution of
520
TV Lines
Caution : Please consult the instruction manual to ensure safe and proper operation of the product.
Distributed by:
VCC-6592P/VCC-6594P
(PAL)
1/4"–20 UNC
threaded hole
(top / bottom selectable)
(Unit: mm)
VCC-6592P / VCC-6594P
ADJ.
LOCK
LENS
FLANGE BACK
LENS 4-pin
56
45
28
VCC-6594P rear panel
VCC-6592P rear panel
22
11
12
1.5
99.5
9
108.5
COLOR CCD CAMERA
COLOR CCD CAMERA
MPX-CD163P
16-Channel
Digital Transport Multiplexer
More than 520 TV lines
of horizontal resolution
Digital Real Time VCR
DTL-4800P
MPX-CD93P
9-Channel
Digital Transport Multiplexer
DSR-3000P
Digital Video Recorder
Colour Video Monitor
VMC-8619P
19" High-resolution
More than 800 TV lines
of horizontal resolution
Colour Video Monitor
VMC-8614P
14" High-resolution
More than 750 TV lines
of horizontal resolution
More models to be introduced soon.
Building the high-resolution, digital monitoring systems of tomorrow
Configure your system with SANYO advanced surveillance solutions and surround the VCC-6592P / VCC-6594P with SANYO's high-
resolution digital family of multiplexers, DVRs, VCRs, and colour monitors.
VCC-6592P
VCC-6594P
PAL standard 625 lines, 25 frames/sec, 2:1 interlace
Interline Transfer CCD, 1/3" [4.8 x 3.6 mm]
Total: 795 (H) x 596 (V), Effective: 752 (H) x 582 (V)
Horizontal: 520 TV lines, Vertical: 400 TV lines
Approx. 0.3 lux (Gain: HIGH mode) / Approx. 0.6 lux (Gain: NORM mode) with F 1.2 lens
1.0 V p-p (75 ohms, composite)
More than 48 dB
Multi-zone (MULT) / Centre-zone (CENT) / OFF — DIP SW (side) (Active when using auto-iris lens)
Auto tracking white (ATW) balance / Manual (MANU) — DIP SW (side)
Normal (NORM) / High (HIGH) — DIP SW (side)
Normal (NORM) / Sharp (SHRP) — DIP SW (side)
7-Modes: 1/50, 1/120, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000 sec — DIP SW (side)
Optical auto-iris lens / Electronic iris (indoor use)
CS mount (or C mount with adaptor sold separately)
12.5 mm
±
0.5 mm adjustment
DC / VIDEO — Slide SW (side)
DC: Drive coil (+,–), Brake dump coil (+,–)
Video: +12 V DC (max. 50 mA), Video output (1.0 V p-p, high impedance)
Level: L ~ H — VR (side)
ON (EI) / OFF (AI), 1/50 to 1/100,000 sec — DIP SW (side)
Approx. 0.6 to 35,000 lux (with F 1.2 lens, AGC: normal)
Internal / External sync (Automatic switching) Internal sync / Line-lock (Manual switching)
———
LINE PHASE — VR (rear)
VIDEO OUT — BNC (rear)
Y/C OUT — Mini DIN 4-pin (rear)
———
VBS IN — BNC (rear)
———
LENS — 4-pin (side)
12 V DC — Pushbutton terminal x 2 (rear) 24 V AC — Pushbutton terminal x 3 (rear)
Temperature: –10 to +50
°
C [+14 to +122
°
F], Humidity: within 90% RH
Temperature: –20 to +70
°
C [–4 to +158
°
F], Humidity: within 70% RH
12 V DC 24 V AC
Approx. 2.7 W Approx. 2.8 W
1/4" x 20 UNC (top / bottom selectable)
Approx. 56 (W) x 45 (H) x 99.5 (D) mm [2.2 (W) x 1.8 (H) x 3.9 (D) in]
Approx. 310 g [10.9 oz] (without lens)
Model
Scanning system
Image sensor
Picture elements
Resolution
Minimum illumination
Video output level
Video S/N ratio
Backlight compensation
White balance
Auto gain control
Aperture correction
Electronic shutter speeds
Light control
Lens mount
Flange back
Auto-iris lens
Auto-iris output
Lens iris level
Electronic iris
Electronic iris range
Synchronizing system)
V phase adjustment
Video signal
S-Video
Sockets
External sync
Auto-iris lens
Power supply
Environmental
Operating
conditions
Storage
Power requirement
Power compsumption
Camera mount
Dimensions
Weight
Specifications
Note: Specifications subject to change without notice.
VBS IN
12V DC
VIDEO OUT
Y/C OUT POWER
+ –
CLASS2 WIRING
AC 24V
LINE
PHASE
VIDEO OUT
POWER
GND
SANYO Electric Co., Ltd.
Video Imaging Systems Division
© 2001 SANYO Printed in Japan '01.11. MA
SMS-022
www.sanyosecurity.com
