Installing Paper on Winder
A paper winder unit is built in the printer. It winds roll paper for
storage without cutting it.
Use the paper winder unit as follows:
1

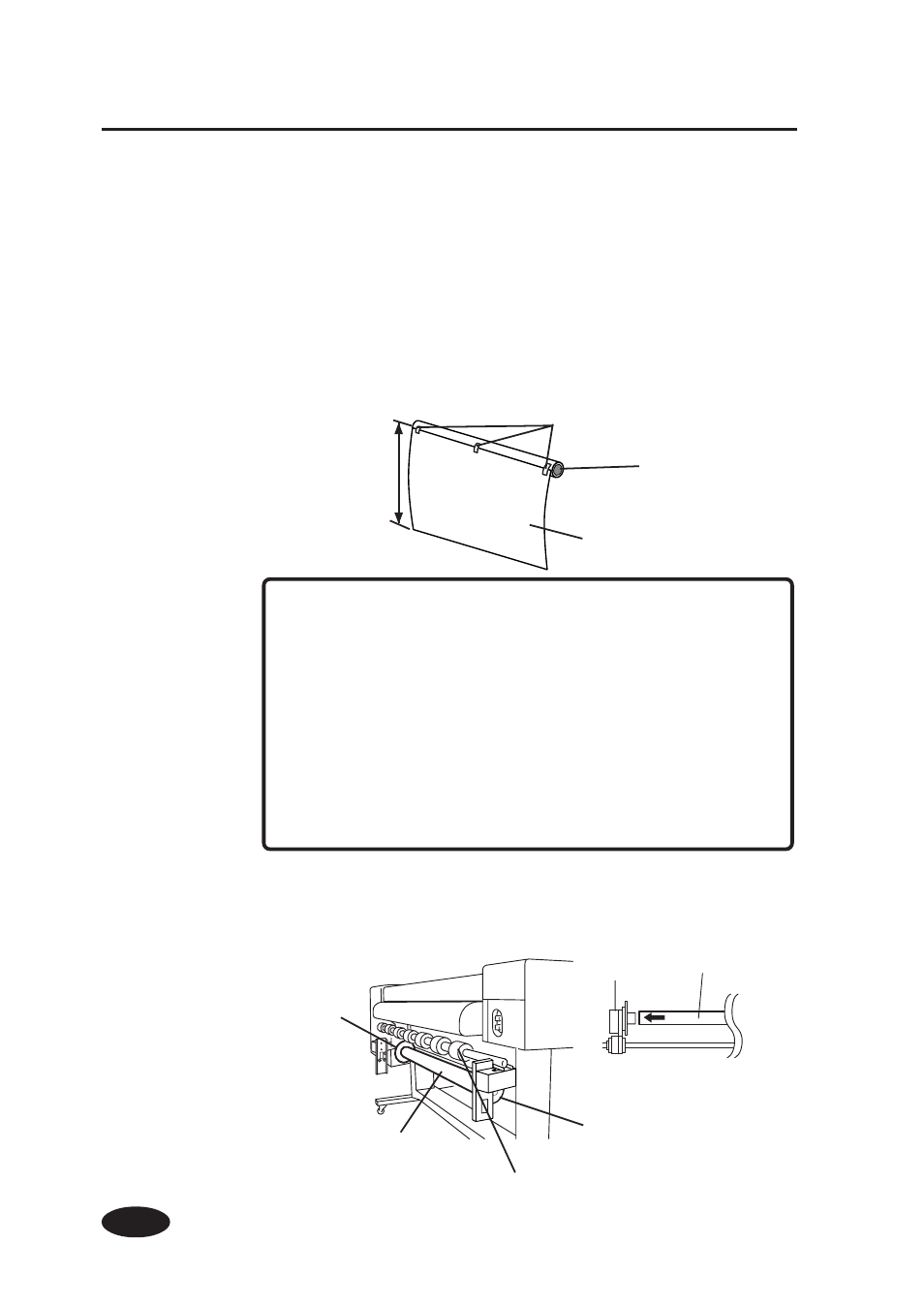

Prepare the paper tube and 1 m-lead paper of which
paper width is the same as the paper’s you will use.
Attach the lead paper on the paper tube.
2
Insert the paper tube with the lead paper to the left
flange.
Paper tube
Tape
Approx. 1 m
Paper tube
Lead paper
- Pay attention to the direction of attaching tape on the
winding side according to the winding direction setting
(outer side rewind/inner side rewind).
- Attach the paper to the take out roller straightly to protect
slanting feed.
- The paper tube width on the winding side must be same
as the width of the rolled paper to be printed.
The use of larger width may cause a winding deviation.
NOTE
Left flange
Tension roller
Paper tube
Left flange
Flange
