5-3
Section 5
T
roubleshooting
Clearing Paper Jam

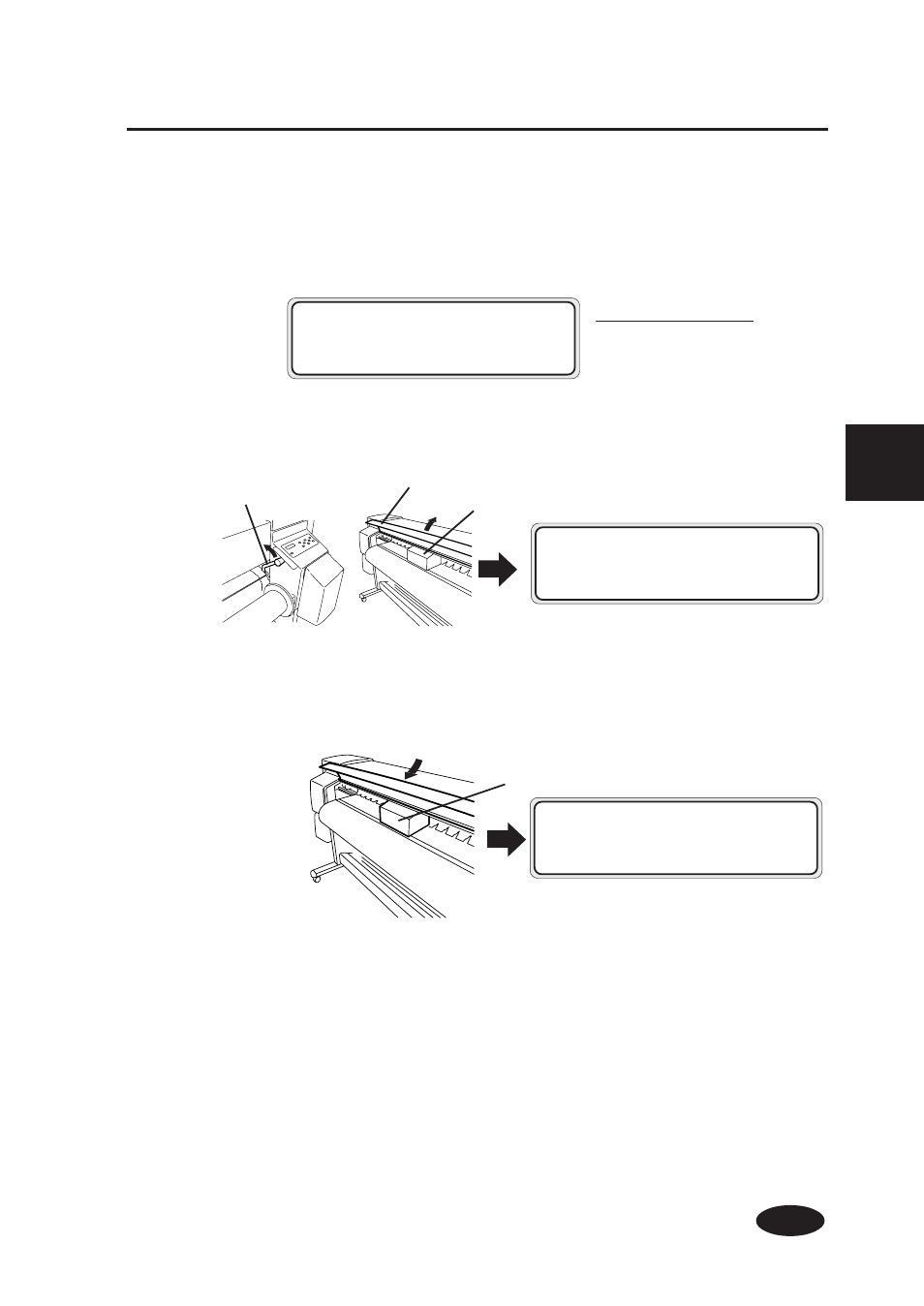

Clear paper jams according to a guidance message displayed on
the LCD.
1
A guidance message appears on the LCD.
2
Open the pressure roller up/down lever and rear cover.
3
Remove the jammed paper, check there is no obstacles
in the carriage path and the paper transporting path, and
close the rear cover.
4
The carriage will move to its home position.
5
Set the paper according to the Installing Paper Roll in the
Printer and Removing the Paper Roll from the Printer.
(See page 2-11.)
X: Types of paper jam
1: Paper jam 1
2: Paper jam 2
LIFT LEVER & X
OPEN REAR COVER
REMOVE PAPER
CLOSE REAR COVER
CARRIAGE MOVING
WAIT A MOMENT
Carriage
See “When an Error Message Appears”.
Carriage
Rear cover Pressure roller up/
down lever
