2-27
Section 2 Basic Operations

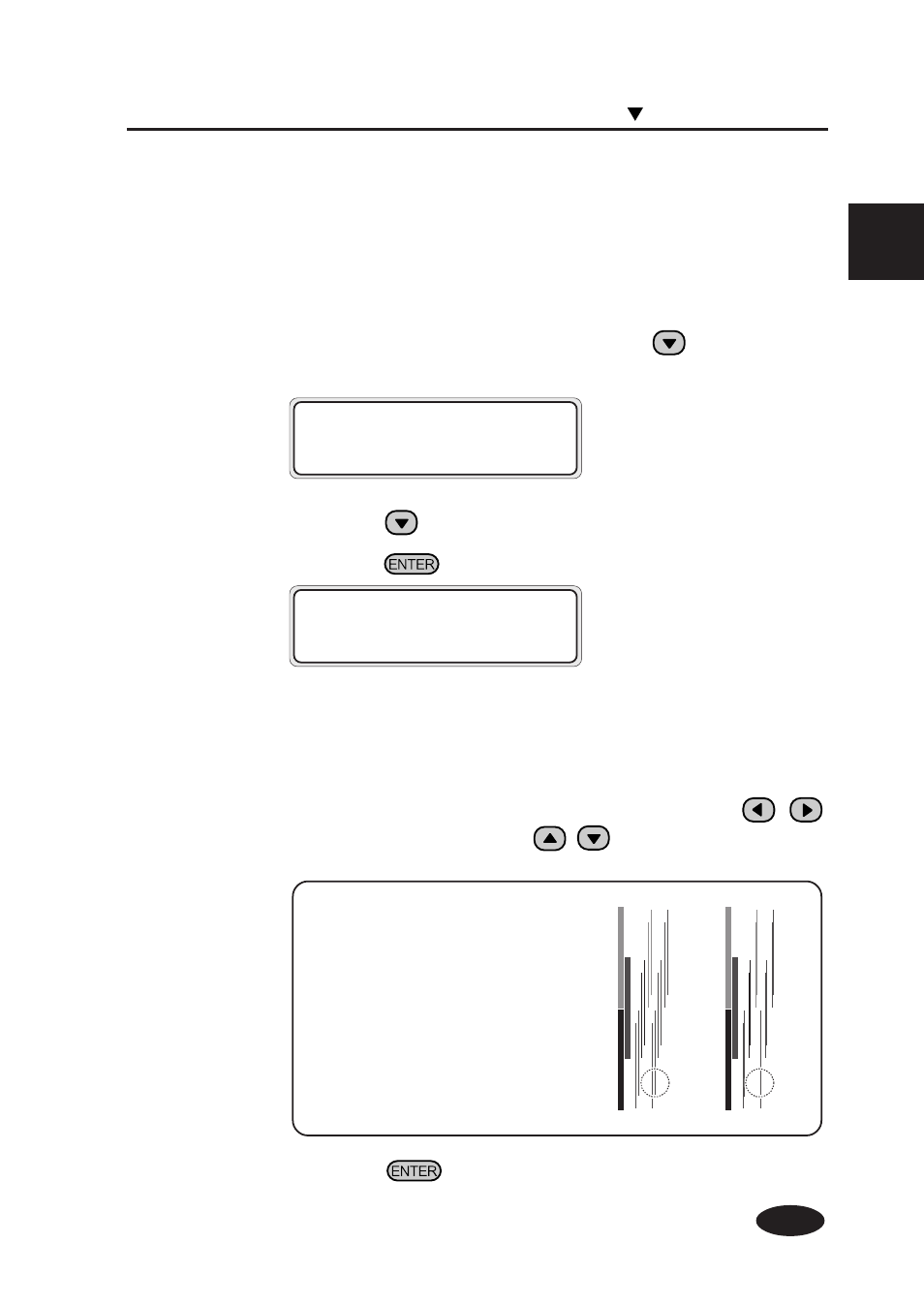

(2) Left and Right Head position adjustment
Adjusts the jetting position of nozzle.
Enter an adjustment value according to the head adjustment pattern.
1
Select "ADJUST", and then press the key to display
"L/R ADJ".
2
Press the key to display the head to be adjusted, and
press the key.
3
Of the left/right head position adjustment of the "HEAD
ADJ1" patterns, enter a numeric value of the fittest
pattern.
Select the digit to be entered between > and & with ,
keys, and change value with , keys.
4
Press the key.
# L/R ADJ Bk
> +00&A
# L/R ADJ Y
> +00&A
Replacing the Paper Roll
-21 -8
Find a head adjustment sample where
2 lines with the same color are aligned.
In case of Y-head illustrated in the
right, for instance, -21 shows the
sample where both are not aligned; -8
shows the sample where both are
aligned. Accordingly, input -8 as an
appropriate adjustment value.
